1. Smooth surface, can withstand slight wear, hardening treatment can improve work efficiency.
2. Widely used in agricultural equipment, textile machinery, printing machinery, mechanical transmission and other industries that require steering drive.
3. Not easy to deform, high tensile strength, stable performance, large load-bearing capacity, smooth surface and easy maintenance.
Specification:

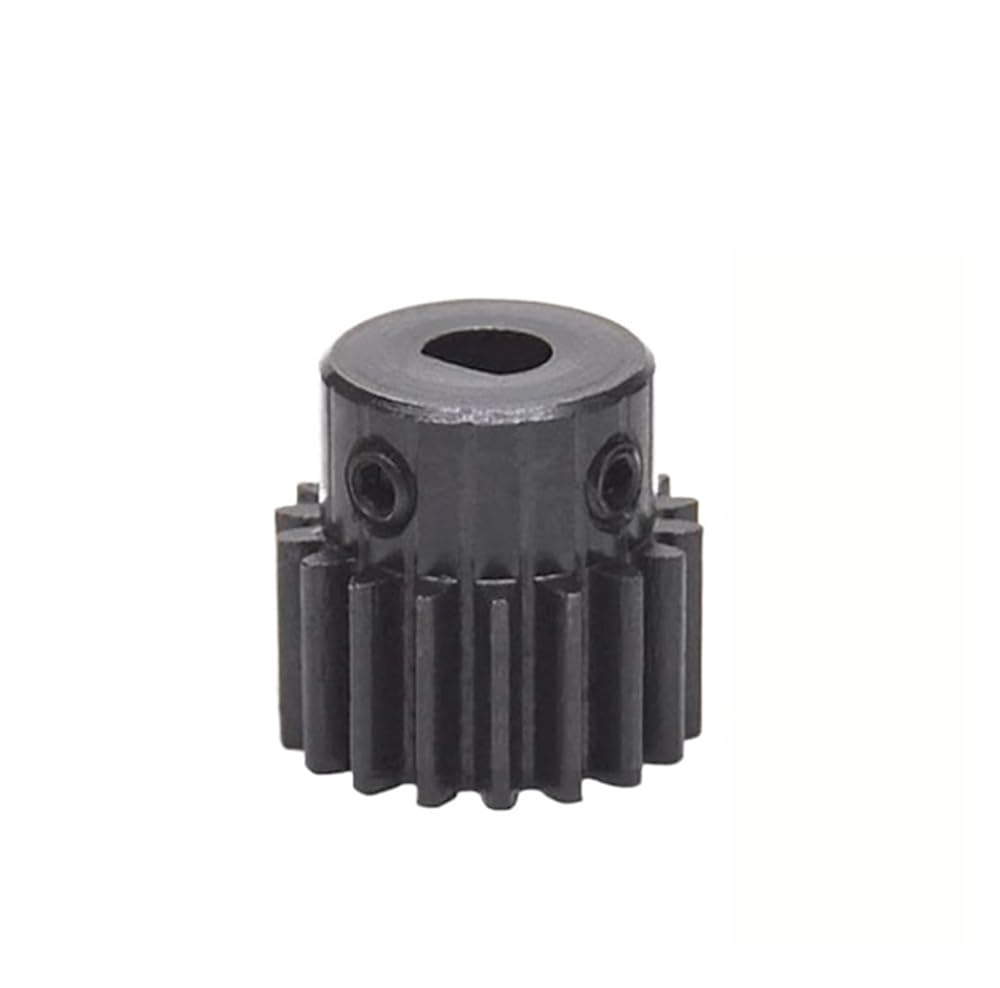

Name: D Hole Spur Gear with Step
Model: 1M (1 Module)
Material: 45# Steel
Surface Treatment: Blackening

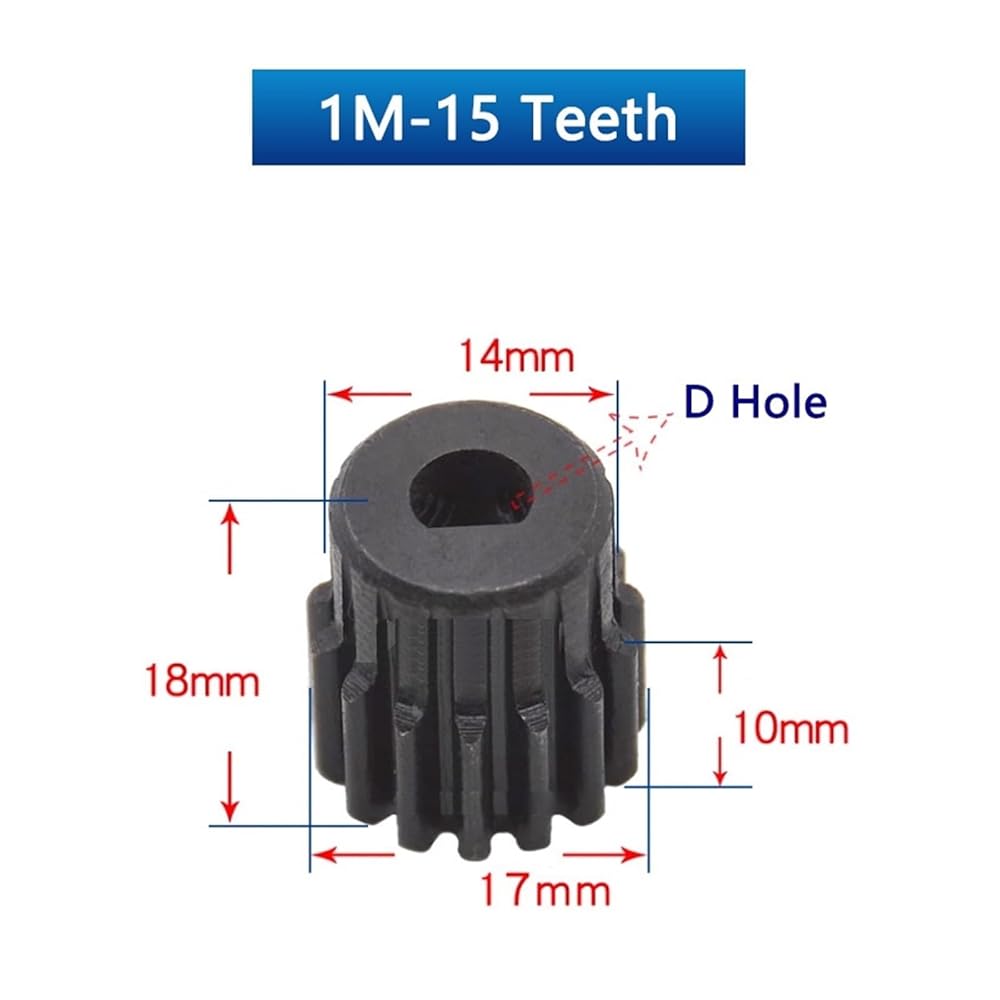

Number of Teeth: 15 16 17 18 19 Teeth
Tooth Pitch: 3.14mm
Tooth Height: 10mm
Total Height: 18mm
D Hole: d1xd2
5x4.5mm
6x5mm
6x5.5mm
8x7mm
8x7.5mm
Shaft Hole: Machining completed
Note:
1. The gear material is made of 45# steel.
2. Dimensions (such as bore size, total thickness and other data) may vary according to the batch, please prevail in kind.
