1pc 12x20mm محرك رمح مقرن 2mm 3mm 3.17mm 4mm 5mm 6mm موصل الألومنيوم الصلب (2 مم × 2 مم) in Kuwait 1pc 12x20mm محرك رمح مقرن 2mm 3mm 3.17mm 4mm 5mm 6mm موصل الألومنيوم الصلب (2 مم × 2 مم) in Kuwait 1pc 12x20mm محرك رمح مقرن 2mm 3mm 3.17mm 4mm 5mm 6mm موصل الألومنيوم الصلب (2 مم × 2 مم) in Kuwait 1pc 12x20mm محرك رمح مقرن 2mm 3mm 3.17mm 4mm 5mm 6mm موصل الألومنيوم الصلب (2 مم × 2 مم) in Kuwait

2mm x 5mm

KWD 5
مقاس2mm x 5mm
– 1 +

مميزات خاصة

  • Size: 12x20mm
  • Color is dark red
  • Screw Hole Diameter: 4mm
  • Rigid shaft coupling is simplicity in structure,high torsional rigidity,no backlash, for high-speed rotation
  • The shaft couplers are mainly used for CNC machines,servo motors, spindle,step motor etc

وصف

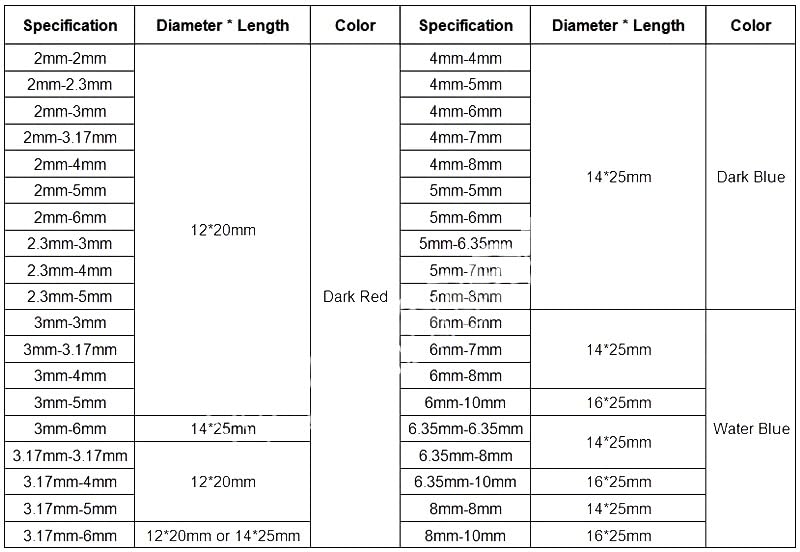

Notice: different sizes have different colors, please read the following table at the description carefully.

Material: Aluminum Alloy

Three Size Coupler

Diameter * Length - 12*20mm,

Screw Hole Diameter: 4mm
Transfer Pore Diameter: multiple Specification
Pore Diameter Tolerance: +0.02mm
For example: the Specification "4mm-6mm" means "one hole diameter of the coupler is 4mm ,the other is 6mm"

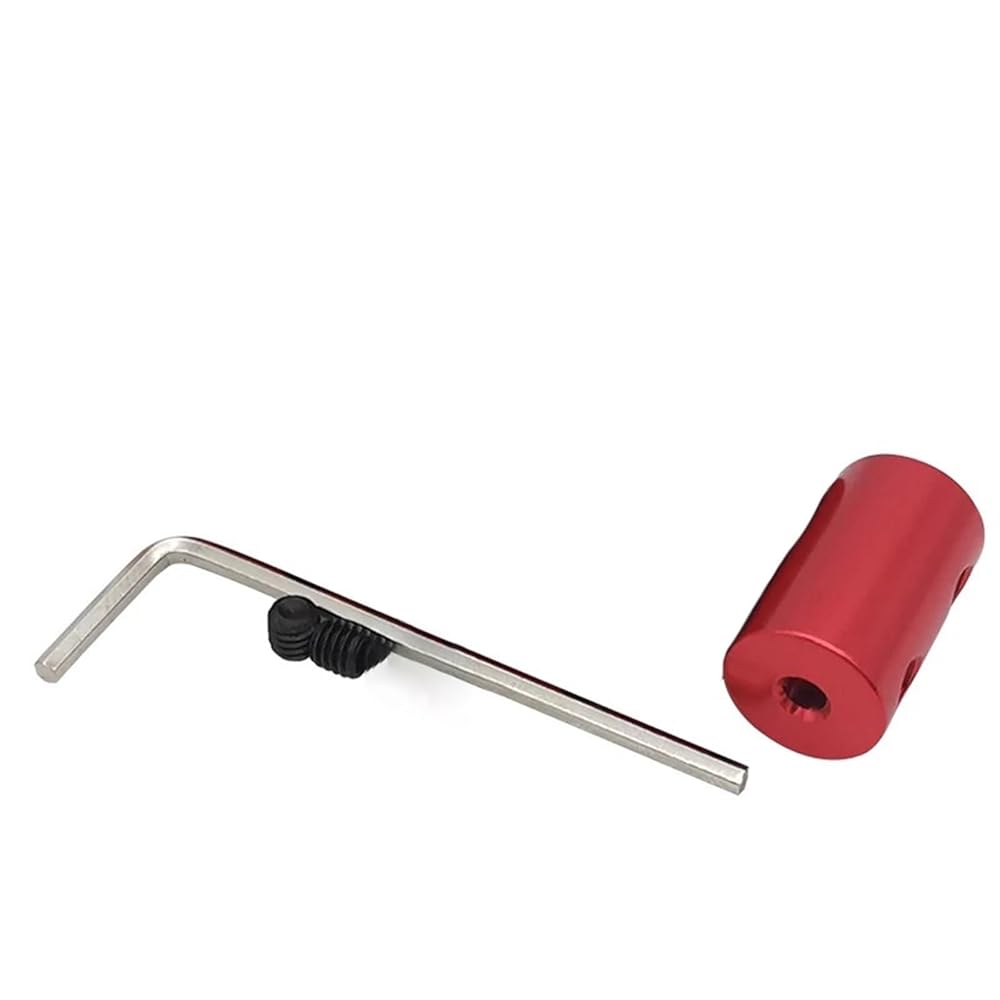

Package Included:
Coupler x 1
M4 Screw x 2
