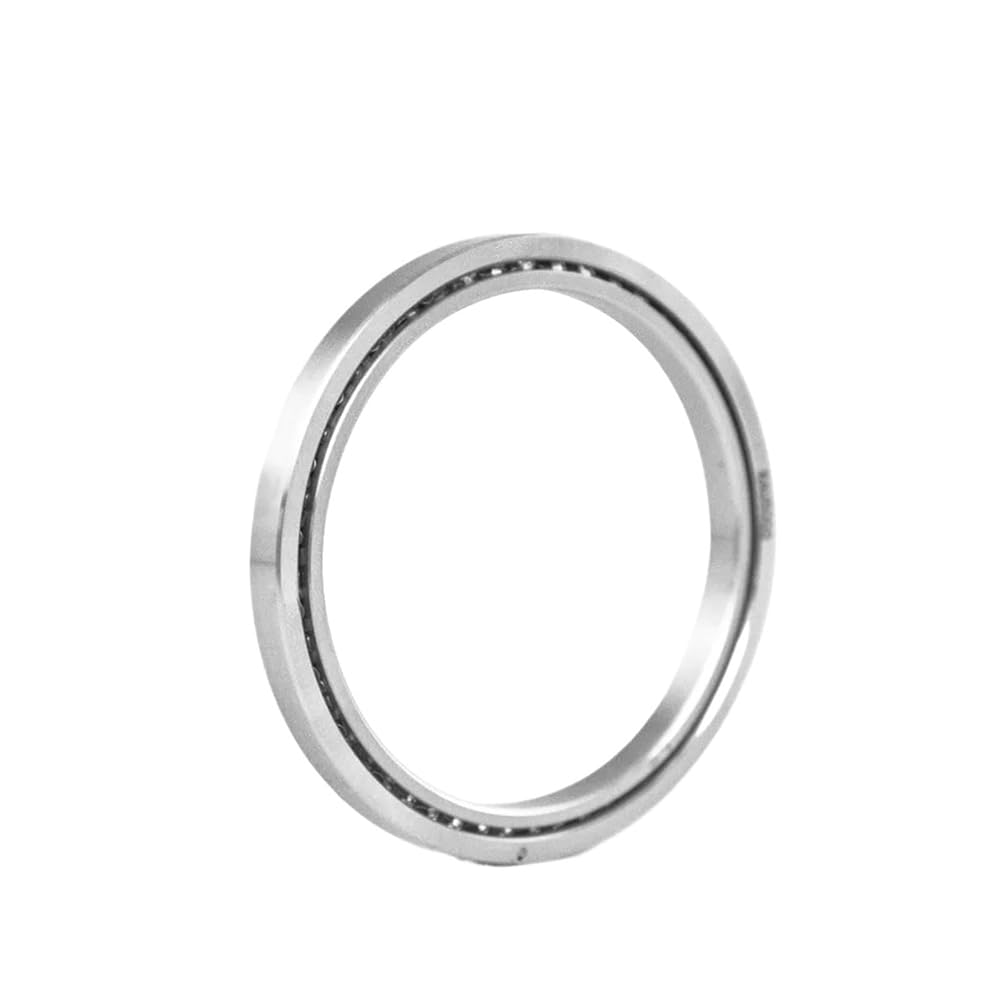

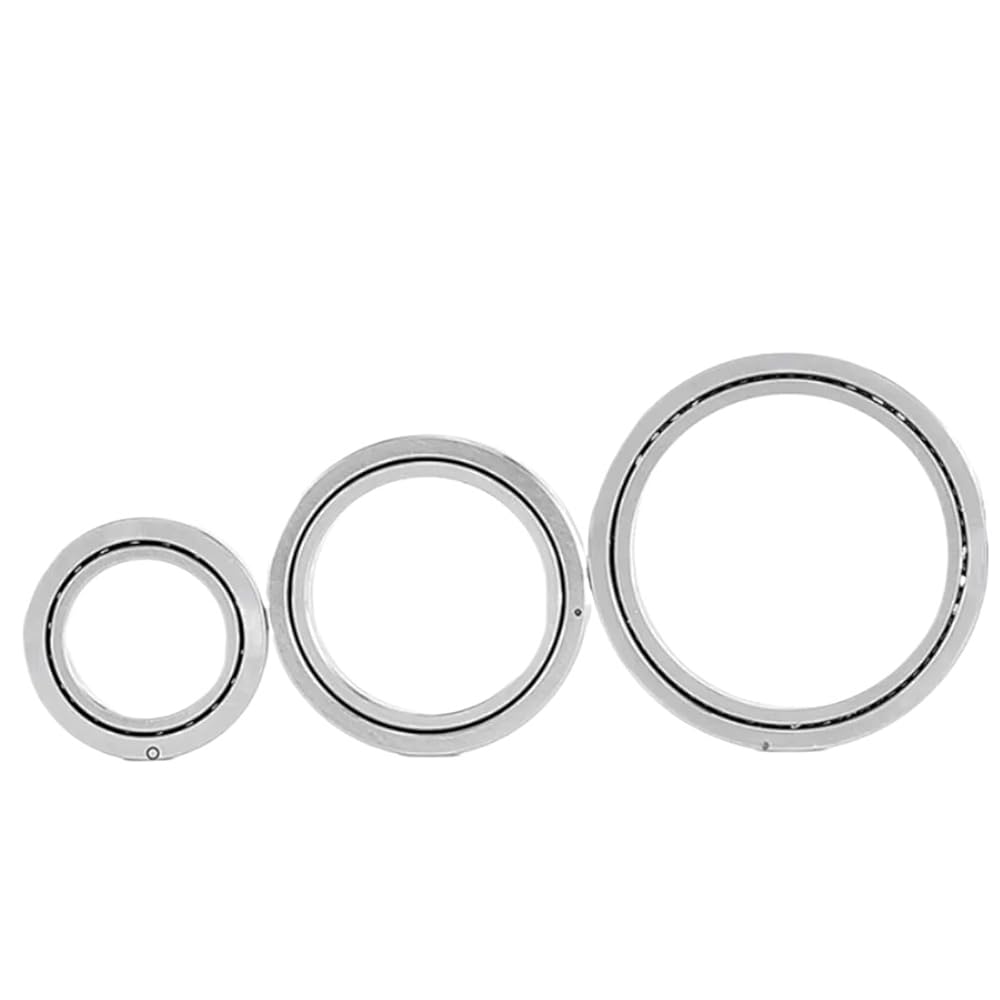

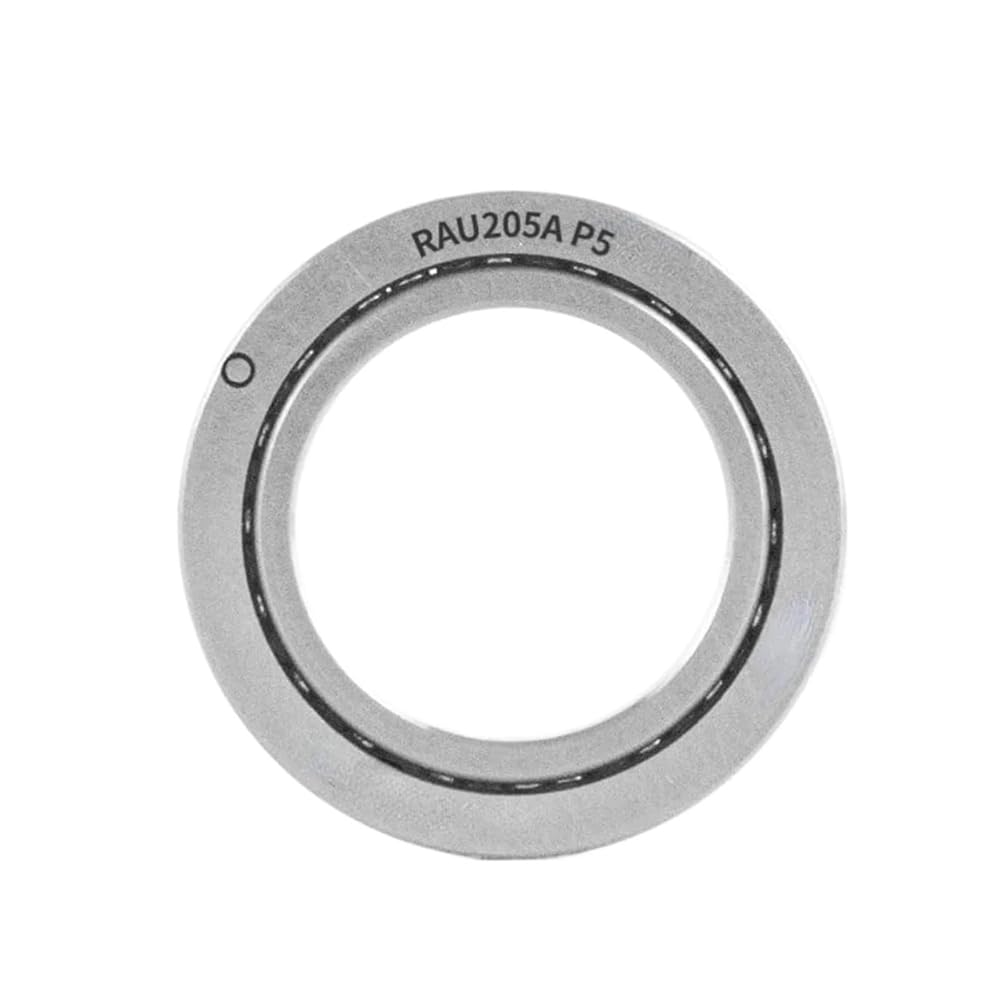

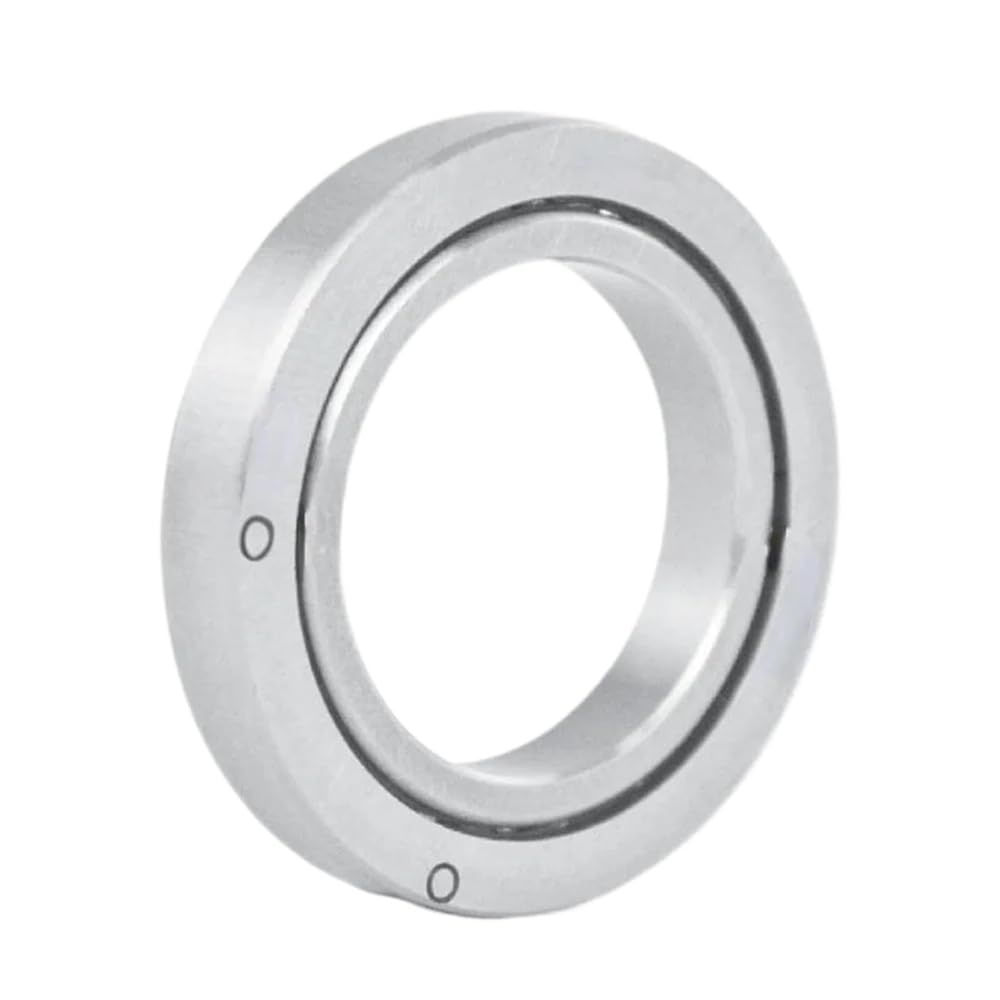

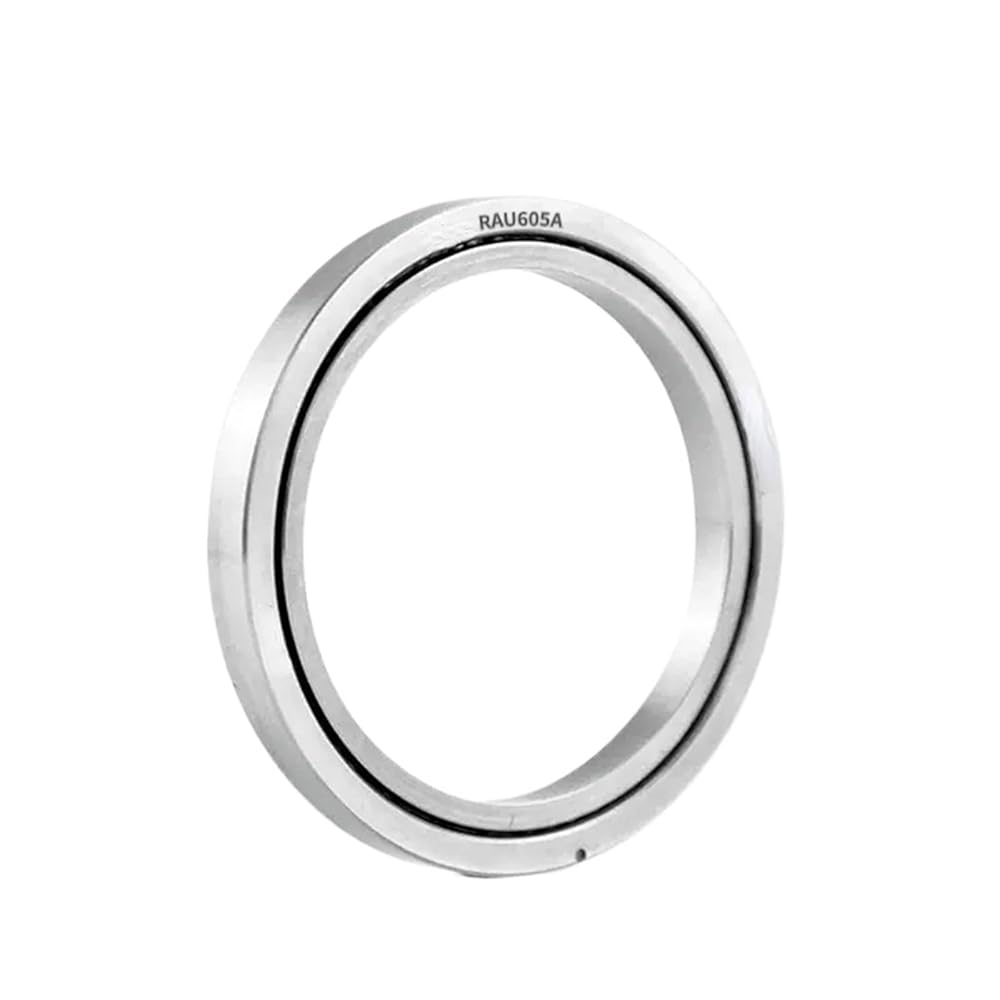

RAU type cross roller bearing (outer ring integral, inner ring integral, thin wall compact structure)
Thin-walled crossed roller bearings, crossed roller bearings are arranged by straight lines of rollers. The section area of single-row roller bearings and ball bearings with back-to-back contact angles of 45 ° is reduced to one size. Compact structure, stiffness increased to double row angular contact ball bearing 3 ~ 4 times. This series of cross roller bearings are thin cross roller bearings that reduce the thickness of CRBS type (RA type) inner and outer rings to a certain extent, suitable for lightweight, structural design requires very compact parts, such as small light service robots, co-robots, robots, exoskeletons, radar communications, heads and rotating support parts.
Crossed Roller Bearings

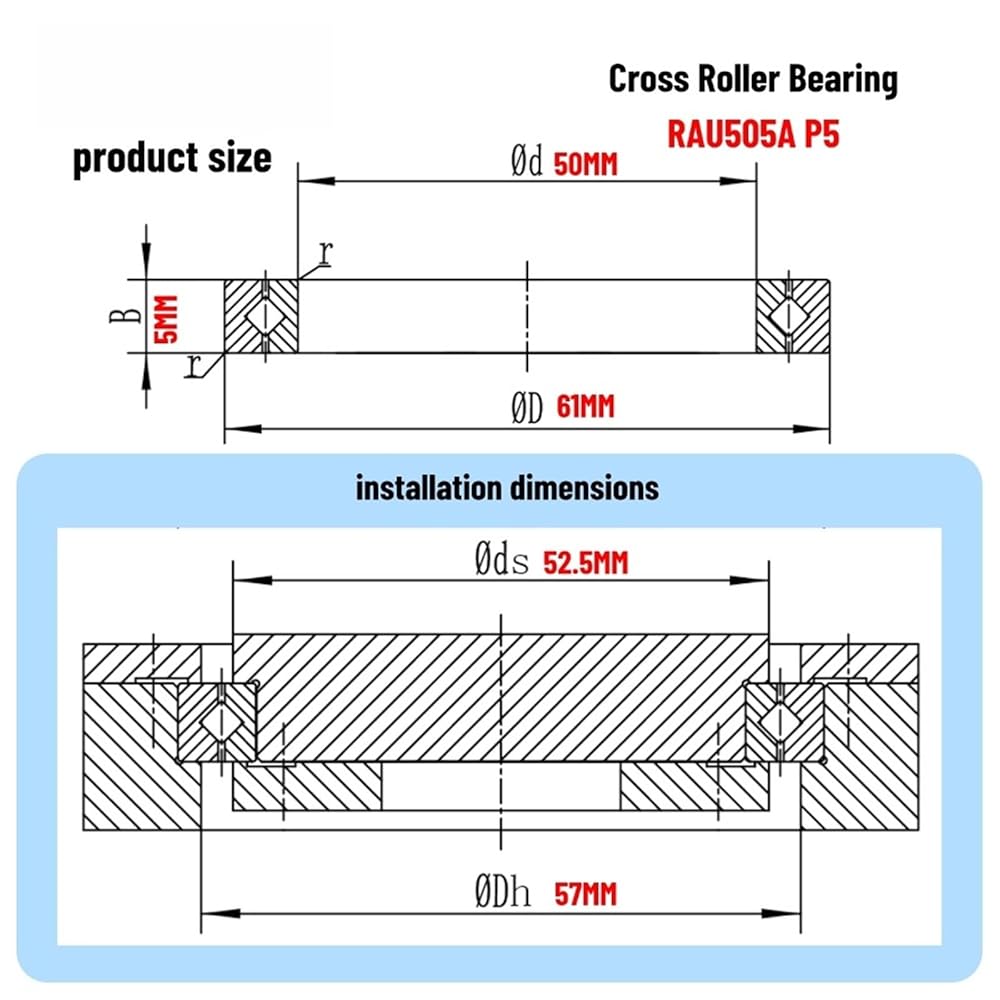

Model: RAU505 P5,
Bearing mass: 0.032 kg
(50*61*5 mm),
50 mm d (inner diameter),
61 mm D (outer diameter),
5 mm B (Width),
Order: 1 Piece
3D drawings and models can be provided, if necessary, you can contact customer service.
==========
Material : Bearing Steel
Model Number : RAU505A P5
