Torque sensor is a strain gauge sensor for static torque measurement or torque wrench calibration
Compact structure
It can measure both forward and reverse torque
Measurement of torsional moments and conversion of physical changes into information
The principle of operation is based on the resistive strain principle
Description
Transducers
Specification
Capacity
0-2000kg
Response frequency
10kHz
Rated Output
2.0±0.05mV/V
Material
Stainless Steel
Non-Linearity
0.05%F.S.
Impedance
350
Hysteresis
0.03%F.S.
Working voltage
5-15V
Repeatability
0.03%F.S.
Safe Overload
150%
Creep(30min)
0.03%F.S/30min
Maximum Overload
200%
Zero Balance
±2%F.S.

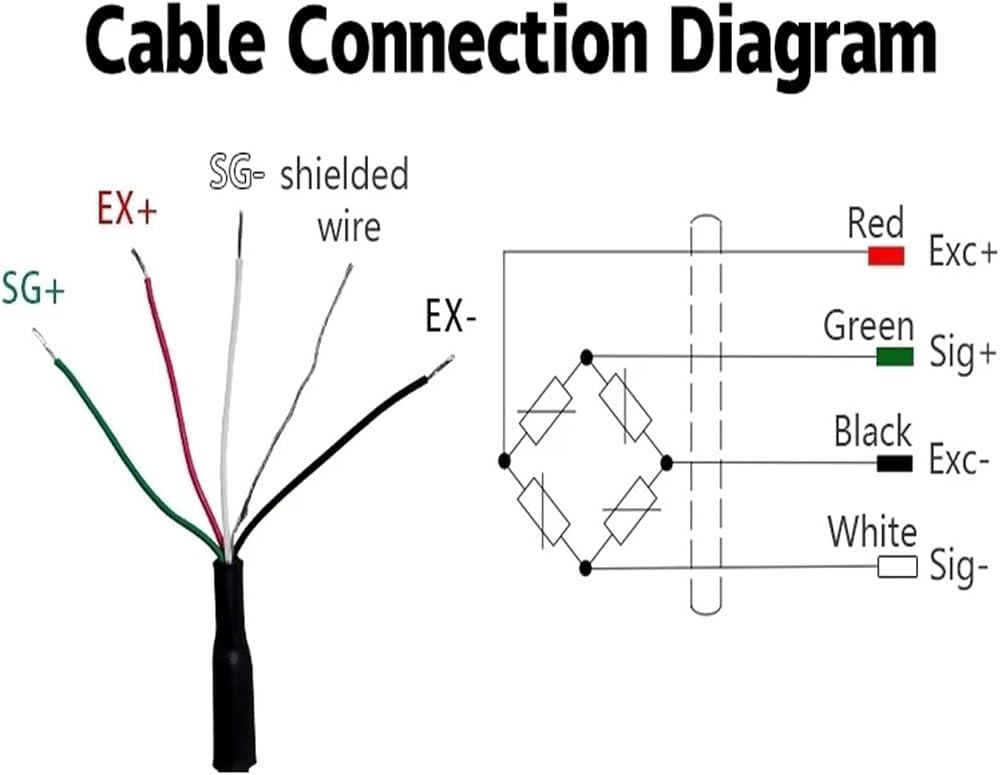

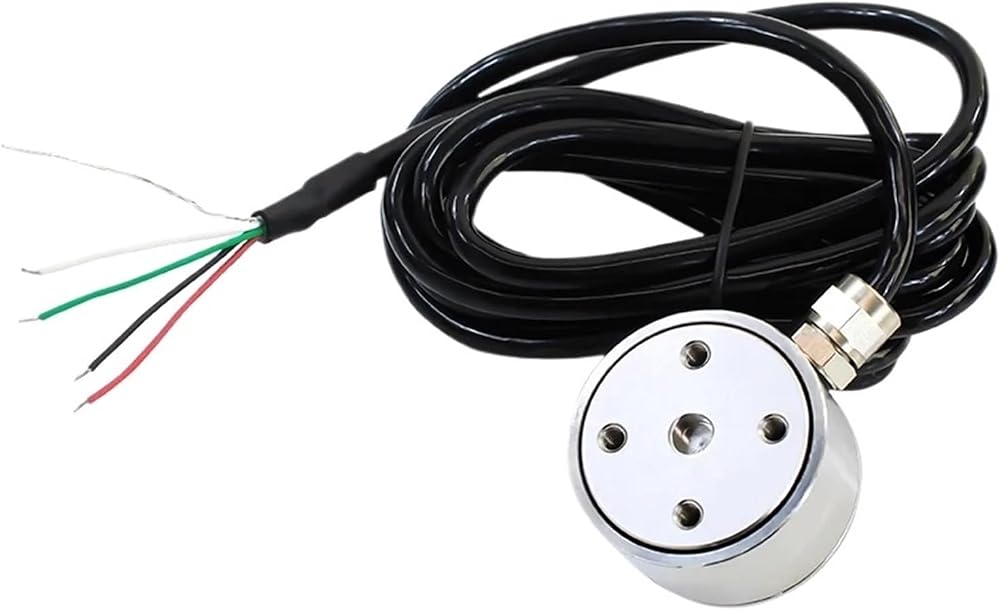

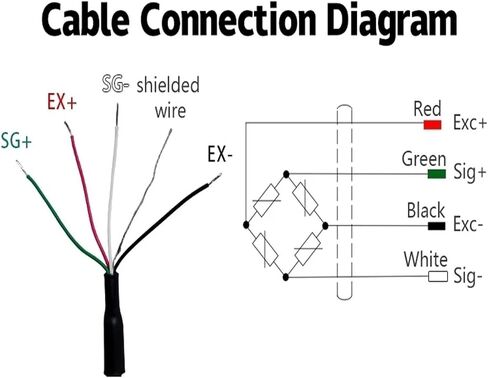

Cable Specifications
3*2m
Temp Effect on Zero
0.05%F.S./10
Operating Temp Range
-20-80
==========
Model Number : DSZ-101
