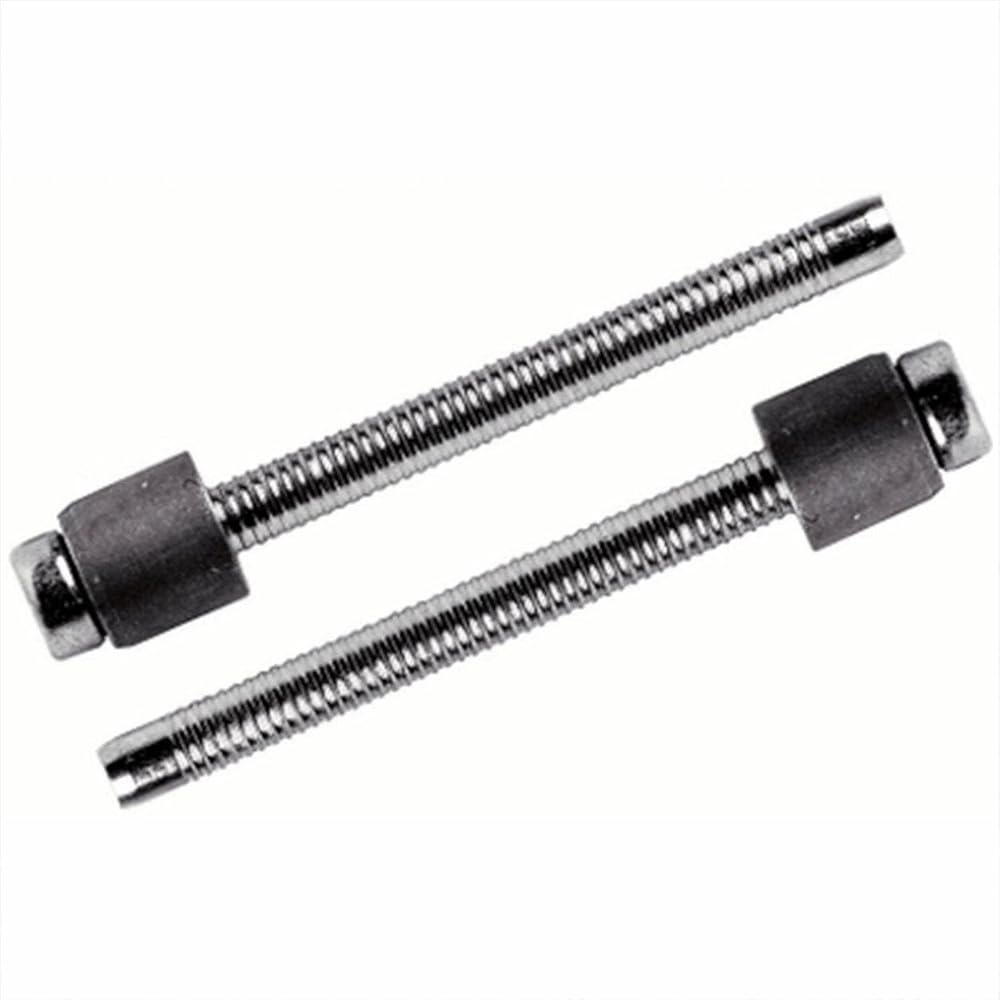

02961-01012 ، سدادات الختم Avseal II ، القطر: M10 ، مادة الأكمام: الشب ، الانتهاء من الجذعية: الزنك (50 PK) in Kuwait

02961-01012 ، سدادات الختم Avseal II ، القطر: M10 ، مادة الأكمام: الشب ، الانتهاء من الجذعية: الزنك (50 PK)

KWD 29.500
ماركة
Generic
– 1 +

مميزات خاصة

  • Fully annealed sleeve - high sealing performance
  • Hole fill capacity - improved seal and wider hole tolerance
  • Larger hole tolerance - simplified hole alignment when automated placing is required
  • Seal by compression of the sleeve - improves sealing with great hole fill capability over a wider hole tolerance
  • Quantity Of (50) Per Package

وصف

02961-01012 Avseal II Sealing Plugs, Unit of Measure: Metric, Nominal Diameter [Metric]: M10, Type: High Pressure Series, Sleeve Material: Aluminum, Sleeve Material Detail: Aluminum Alloy BS1473/4/5-6061/AA6061 EN 573-3 AlMg1SiCu Werkstoff 3.3211, Stem Material: Steel, Stem Material Detail: Carbon Steel BS 3111 Type 10 DIN 1654 35B2, Stem Finish: Zinc, Stem Finish Detail: Zinc Plated, Colorless Passivation with Top Seal, Minimum Hole Size: (9.80mm), Maximum Hole Size: (10.80mm), Recommended Hole Size: (10.01mm), Stem Head Diameter: (7.82mm), Stem Head Length: (9.80mm), Sleeve Length: (10.01mm), Sleeve Length including Stem Head: (14.00mm), Minimum Seal Length After Installation: (8.79mm), Maximum Seal Length after Installation: (12.98mm), Overall Body Length: (53.39mm), Stem Diameter: (4.39mm), RoHS
