Power Supplies
Response and high accuracy when compared with linear power supply.
Output voltage and output current between 0 to rated value is adjustable.
Constant voltage and constant current can automatic conversion.
Overload and reverse polarity protection keep power supply and its loads safe from unexpected conditions.
LED digital display output voltage and output current
Cooling fan is connected with temperature sensor. Its can reduce the fan speed automatically when the internal temperature or load decreases to prevent the additional noise

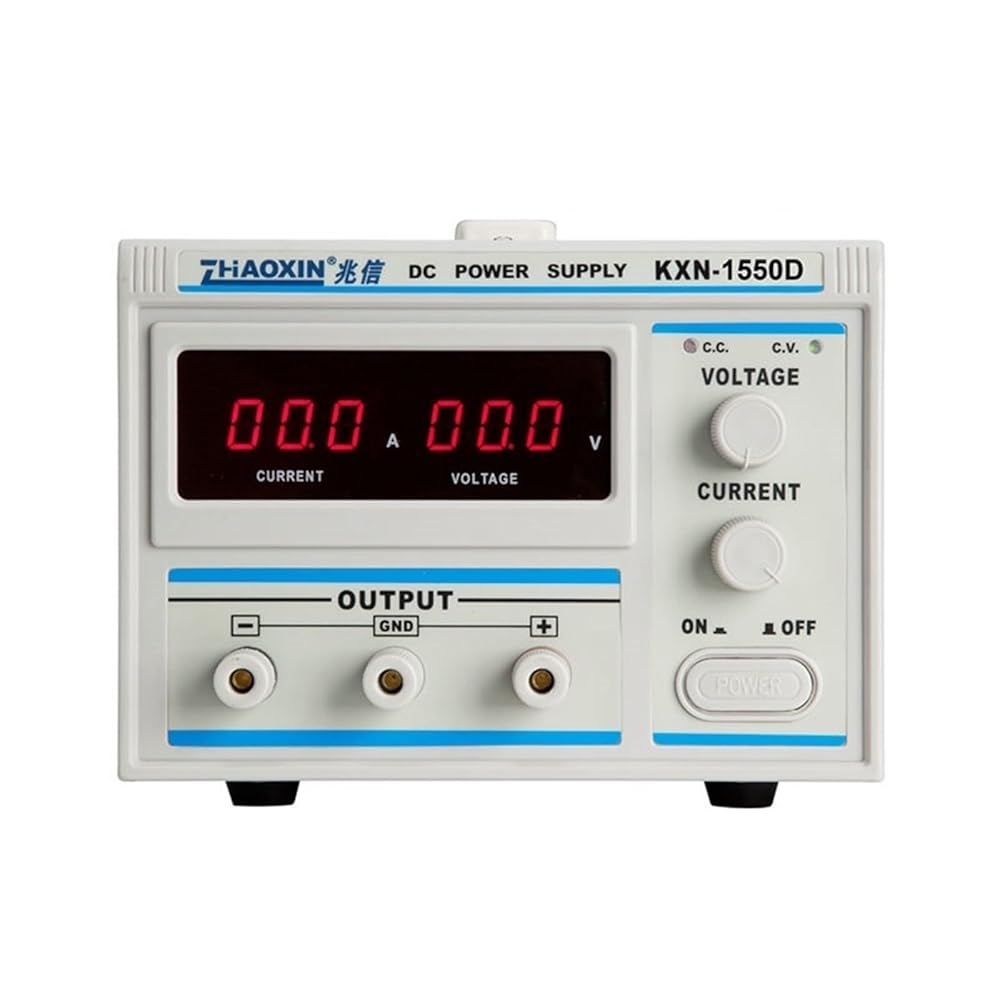

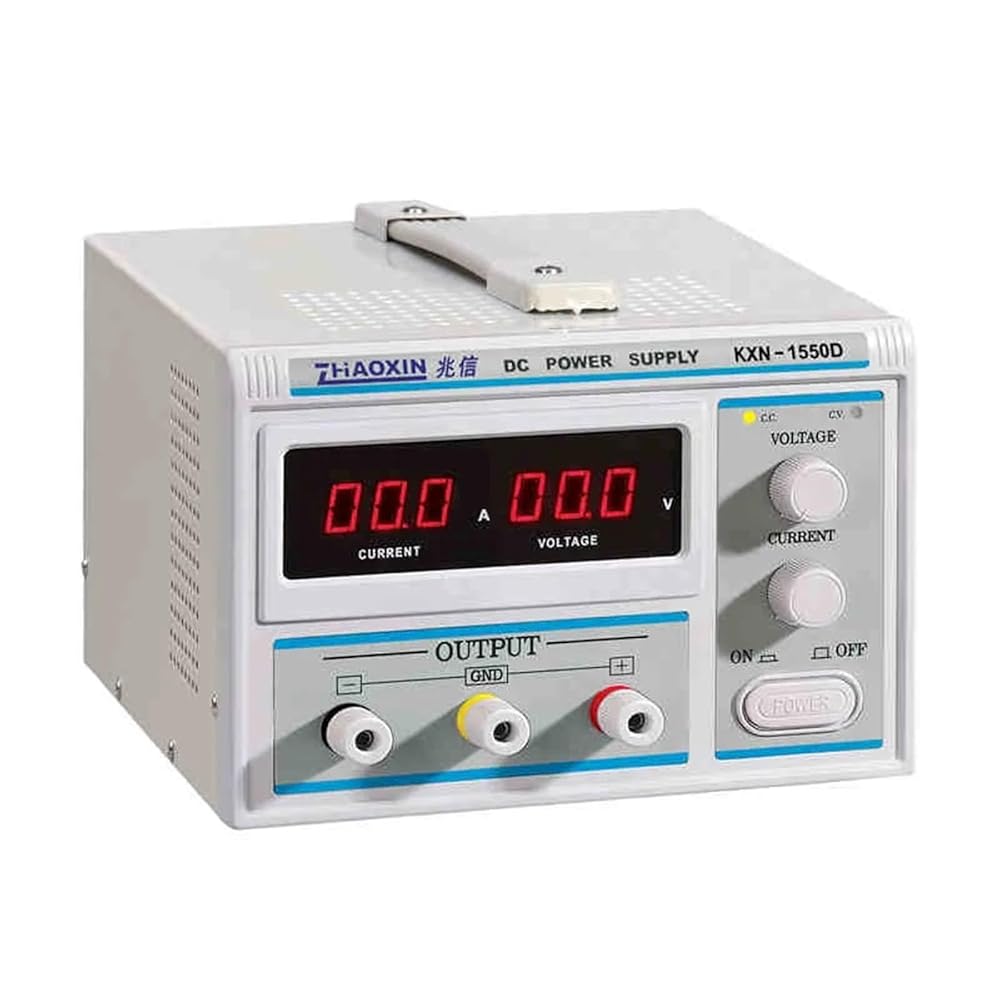

Model KXN-1550D
Voltage Output 0-15V
Current Output 0-50A
Dimensions(mm) 366×202×157
Operating temperature (-20-50) °C Storage temperature (-40-70) °C
Relative humidity 90%(40±2°C) Atmospheric pressure ( 70-106)
Input voltage: AC 220V±10% 50Hz/60Hz
Display accuracy 1%
Efficiency 86%
Load regulation 0.5%
Voltage regulation 0.5%
Ripple voltage 0.5% V p-p
100Hz Ripple voltage 300mV
Insulation resistance 20M
Withstand voltage from input voltage to casing AC1500V
Withstand voltage from input voltage to output voltage AC1500V
MTBF 50000h
Boot buffer delay 3-5S
Overheat protect threshold value 75-85°C
==========
is_customized : Yes
Usage : SVC
Model Number : KXN-1550D
Current Type :
Phase : single phase
