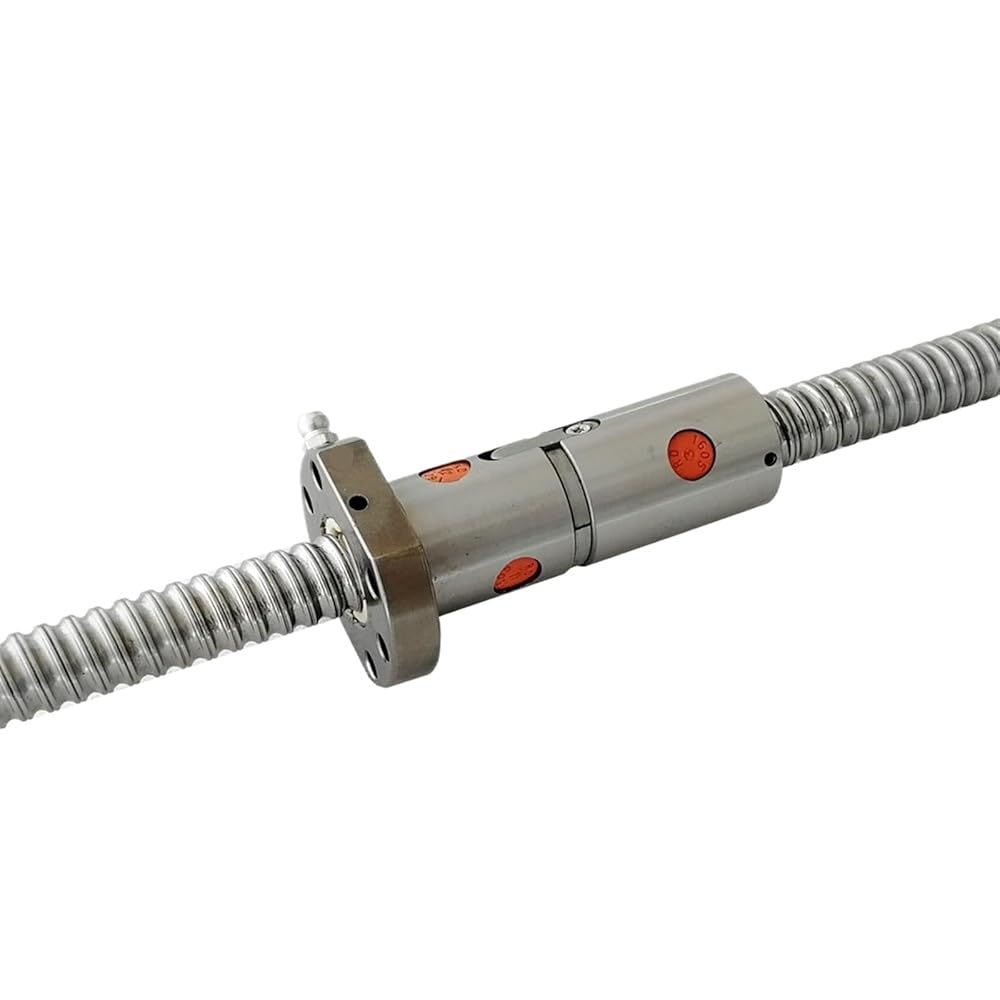

1. The double nut ball screw combines the two inner cycle nuts together, thus reducing the clearance of the ball screw.
2. Stability enhancement, especially suitable for CNC machining centers.
3. No stick-slip effect, low friction, low running noise, less heat, reduce the required driving power, extend the service life.
1. Stable performance, strong performance, smooth rotation.
2. Not easy to deform and wear, high precision and low noise.
3. Effective dust prevention, lubrication, precise processing size.
4. Can easily preload the rotational change and linear motion.

وصف

1. Large lead and high-speed movement, reducing movement time, more durable and stable
2. Waist-shaped nut, metal reverser, adjustable preload
3. Ultra-quiet, high wear resistance, high precision and high hardness
4. Smooth and non-stuck, long service life
Specifications:
Product: C7 Rolled Ball Screw
Model: DFU2510
Guide Width or Diameter: 25mm

Description:
High transmission efficiency, high positioning accuracy, good repeatability of positioning accuracy, long life, high rigidity, good transmission reversibility, bright surface, high matching accuracy, easy and light movement of the slider. Made of high-quality steel, wear-resistant, can meet high load capacity requirements. Easy to assemble Aluminum support rails with pre-drilled holes for easy installation.

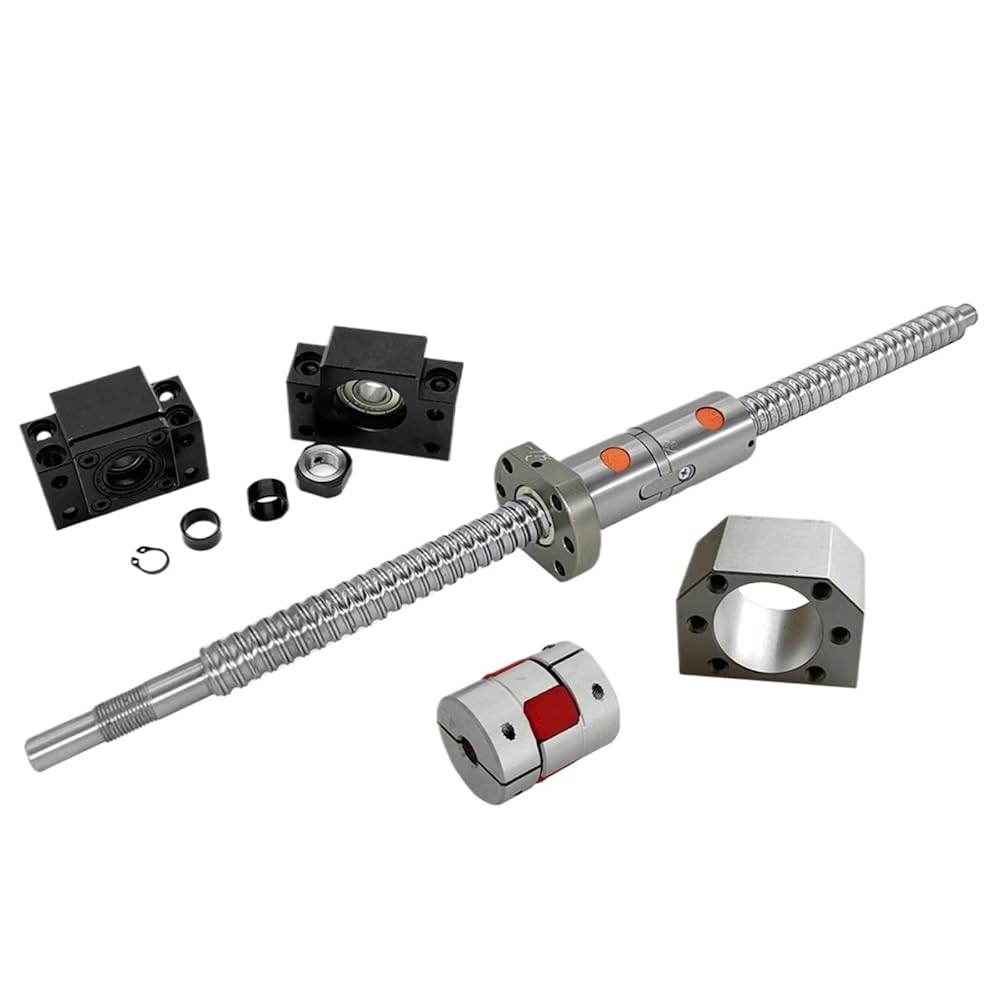

Packing List:

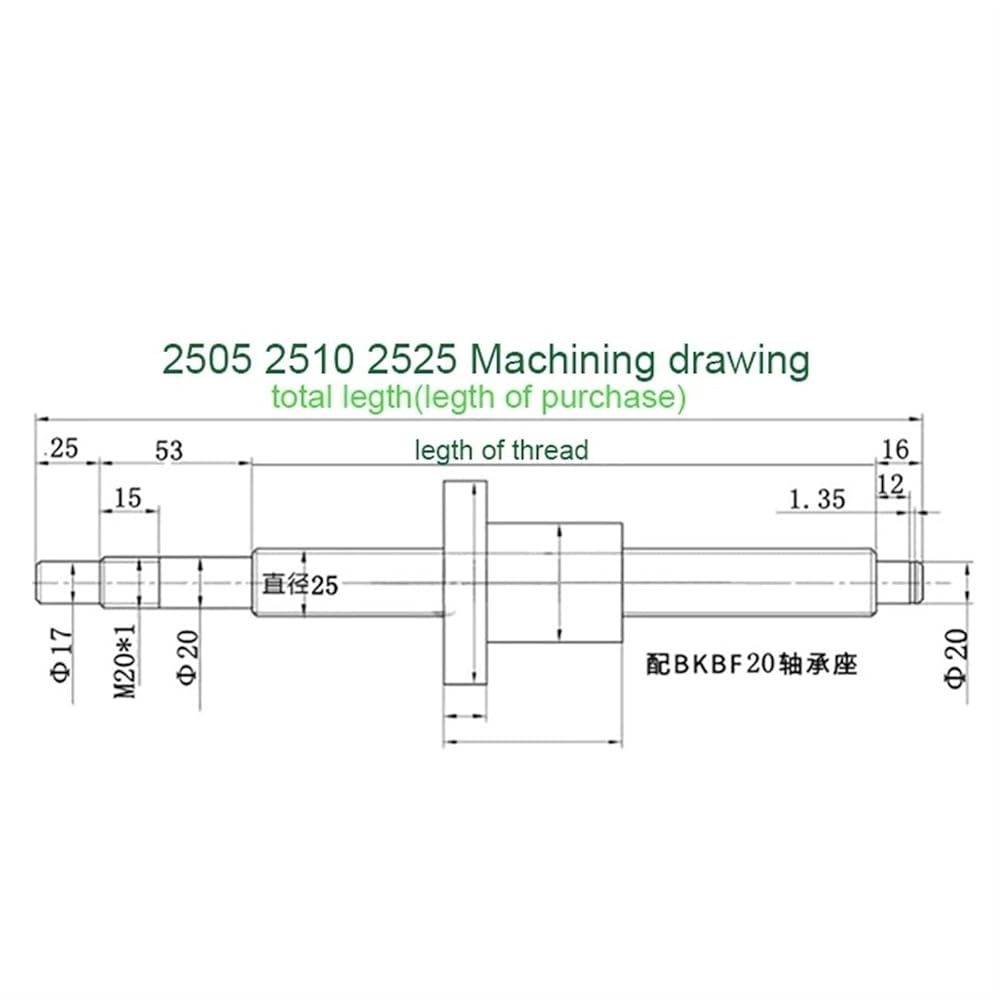

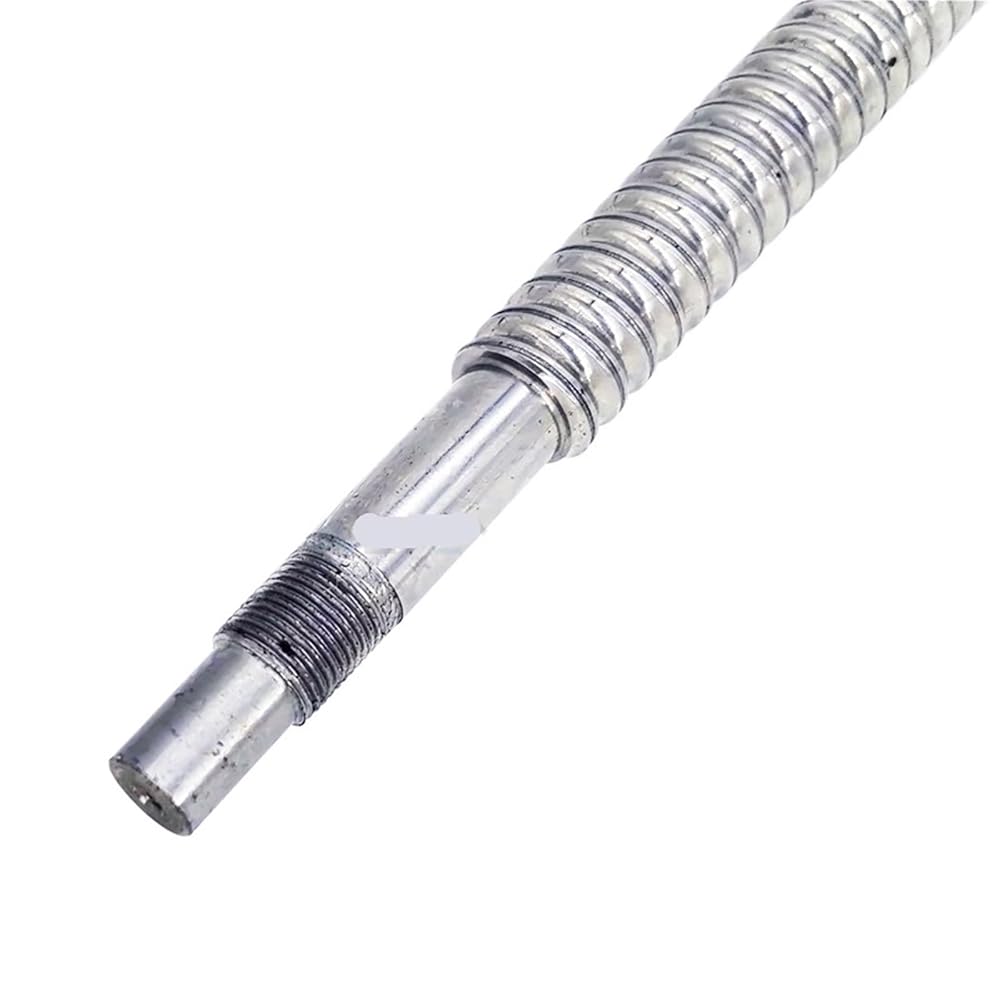

1pcs DFU2510 Ball Screw with DFU2510 Double Ball Nut (Standard End Machining, Length is Total Length including Machine End Parts)

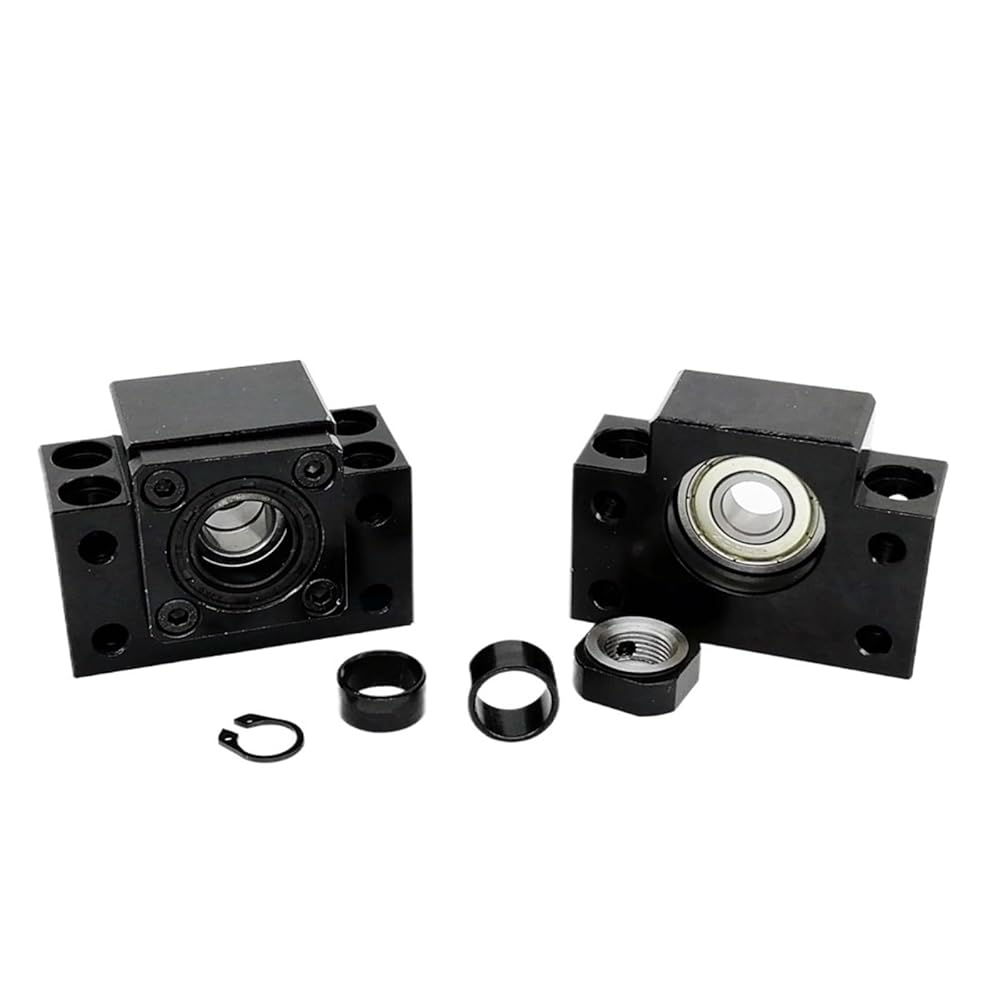

1set BK20 Fixed End and BF20 Free End Support

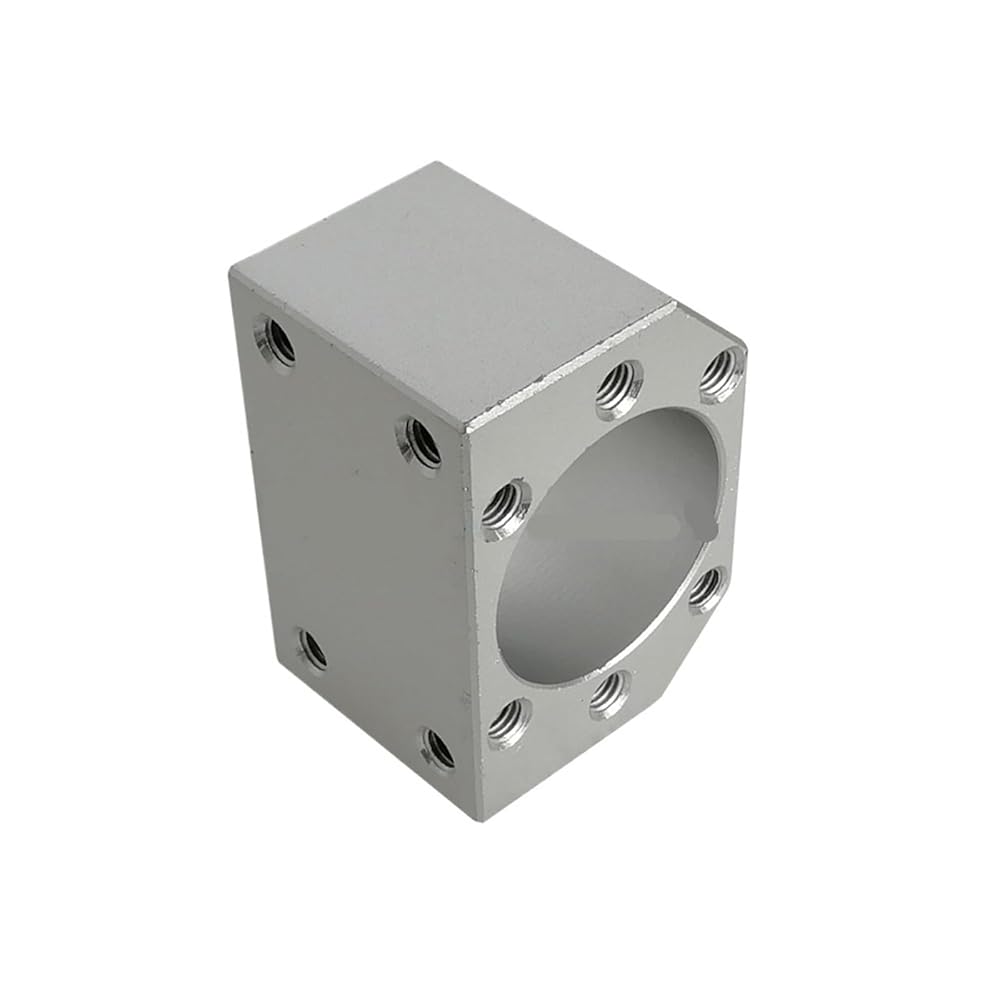

1pcs DSG25H Ball Nut Bracket

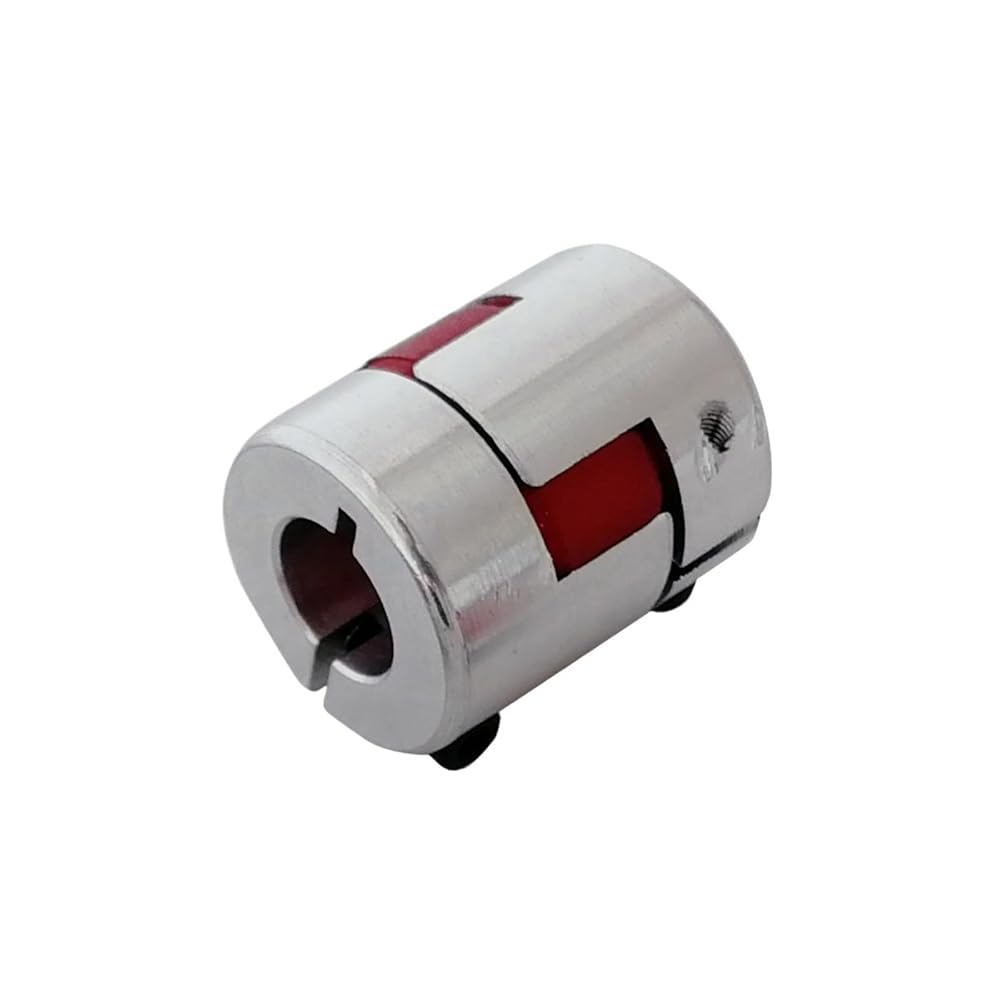

1pcs OD40mm-14*17mm Coupling
