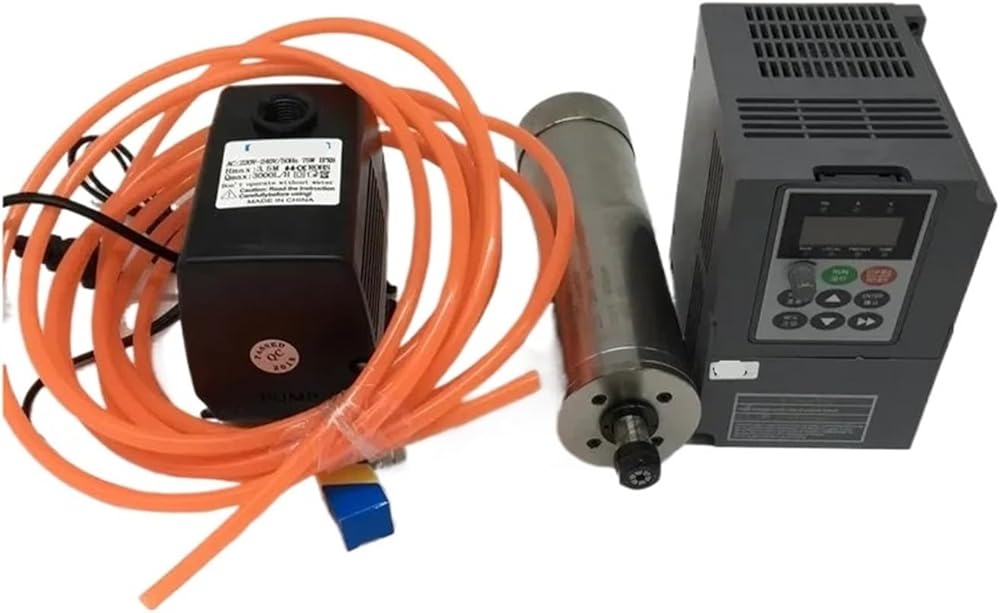

packing list:
1*4.5KW spindle motor
1*5.5kw inverter
1*75W 3.5M water pump

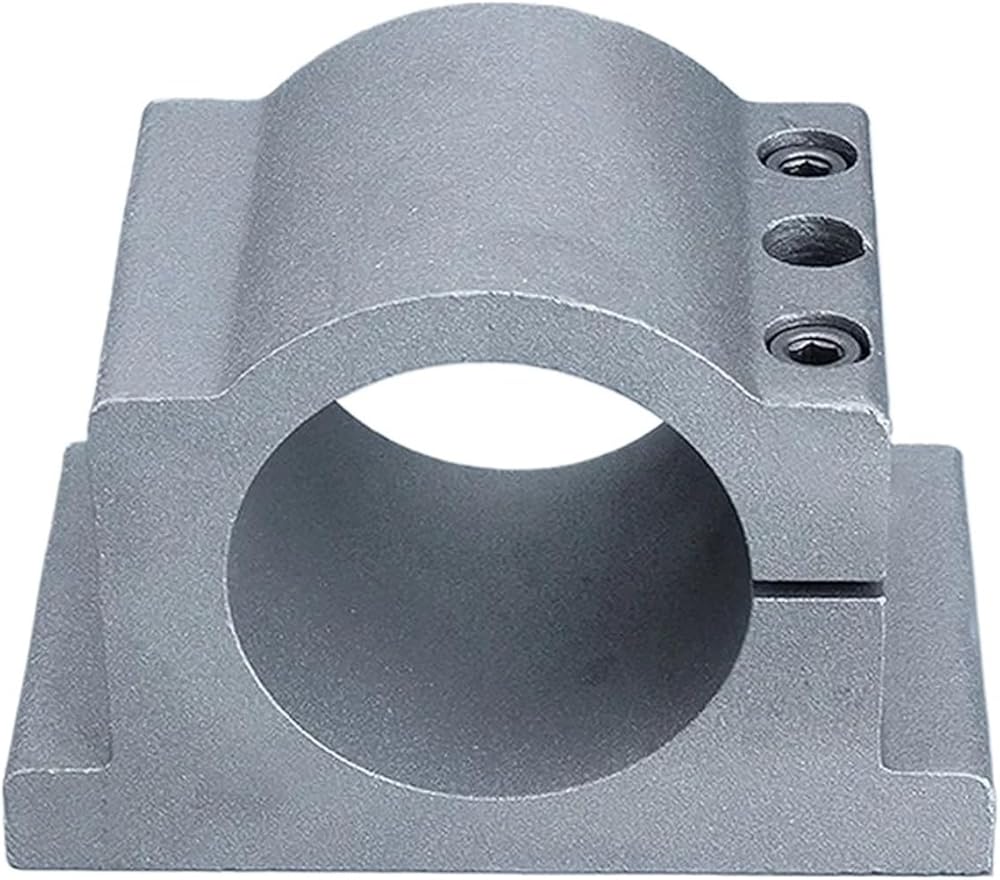

1 x 100mm Spindle Clamp
1*5m water pipe

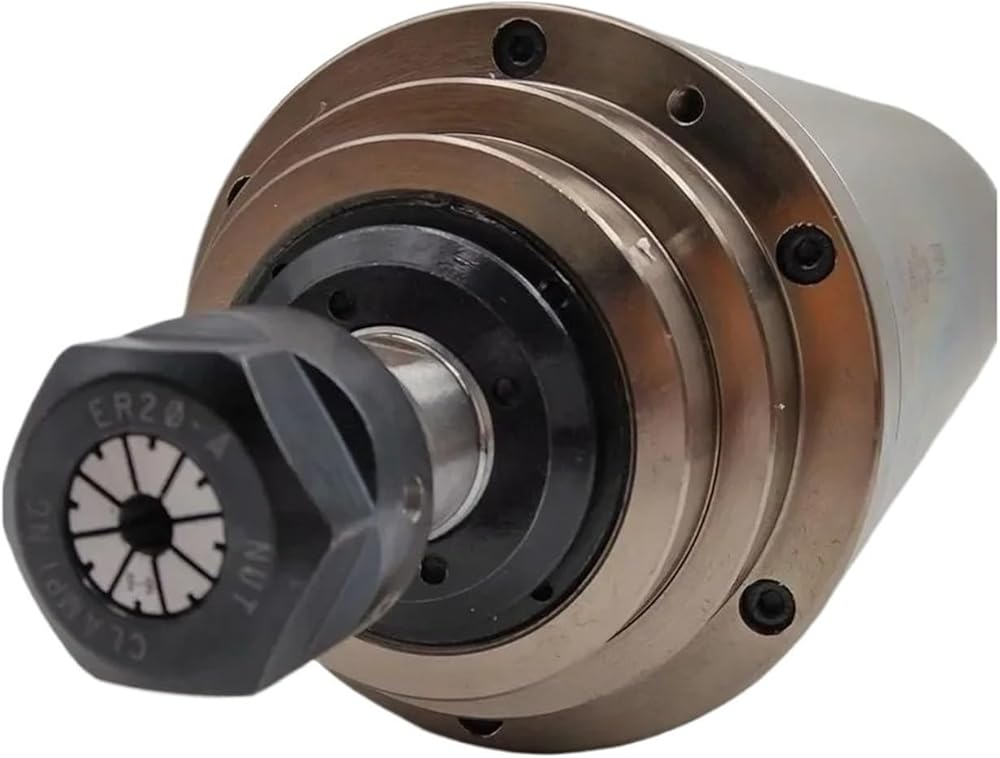

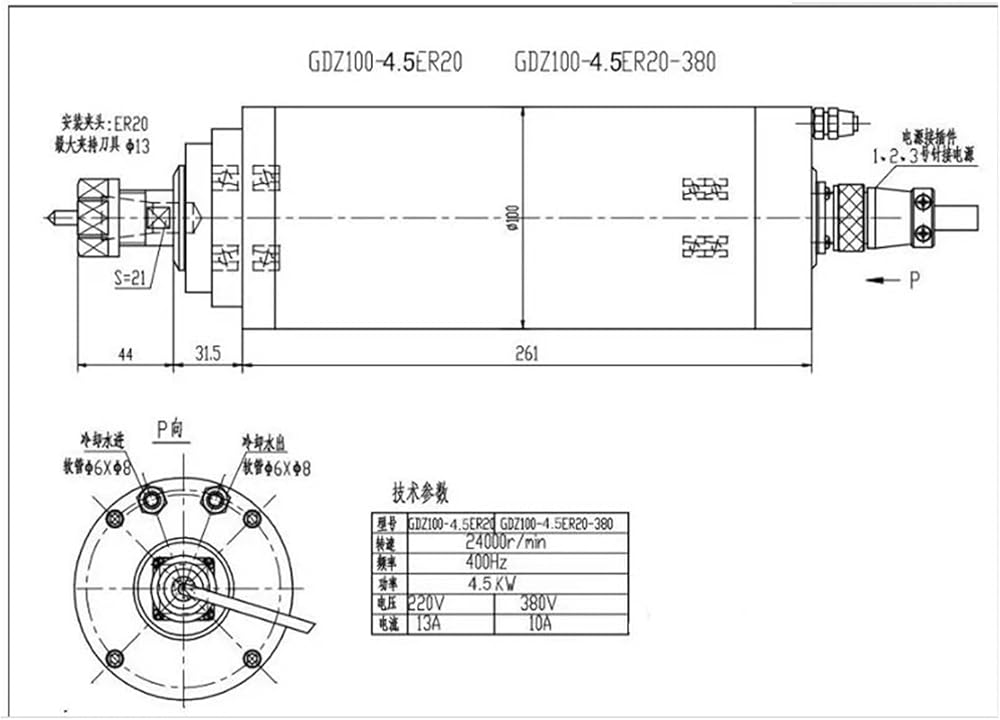

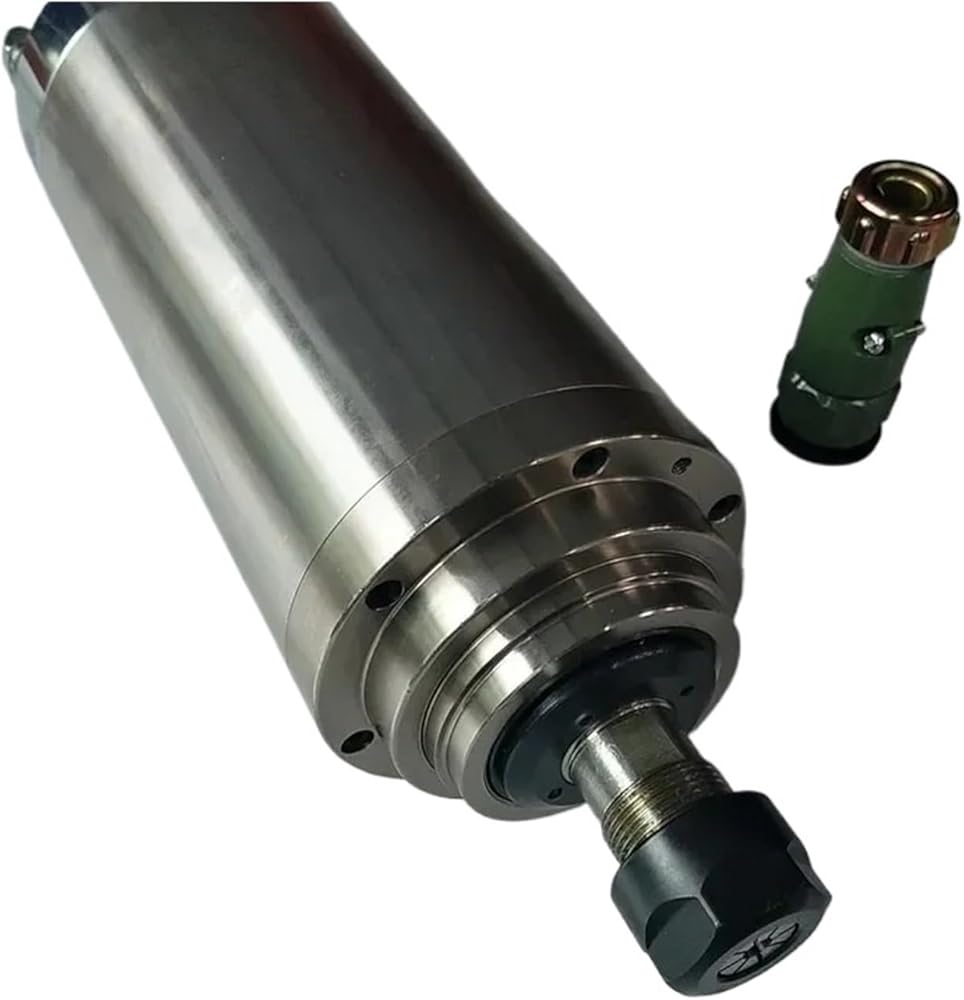

Spindle motor specifications:
Model: GDZ100-4.5-220V
Speed: 24000rpm
Power(kW): 4.5KW
Diameter(mm):100mm
Voltage (V): 220V (must be output through inverter)
Current(A): 13A
Frequency(HZ):400Hz
Chuck: ER20 (1-1M)
Cooling method: water cooling
Bearing type: 2X7005CP4, 2X7003CP4 DT
Folding knife diameter: 3.175, 4, 6mm (default), 12.7mm
Cooling method: water cooling
Material: 304 stainless steel
Radial runout: 0.01mm
Coaxiality: 0.025mm

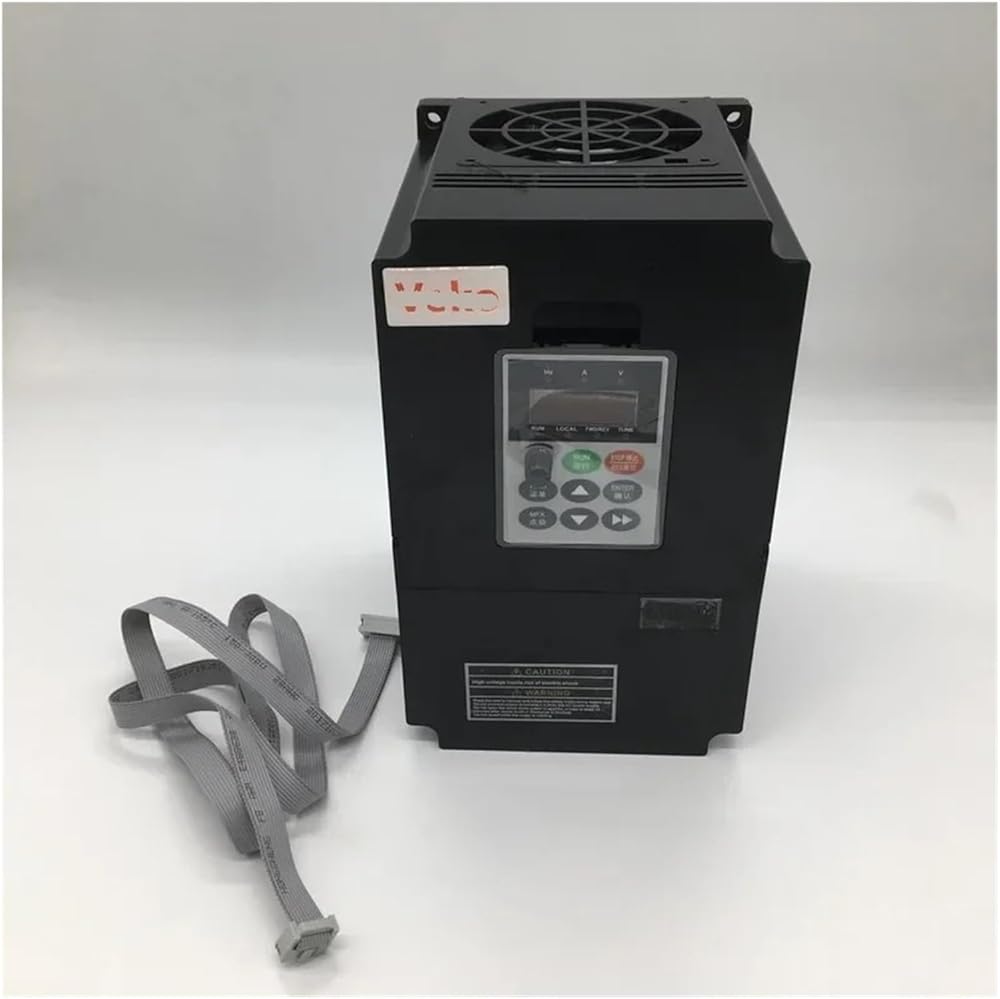

VFD Specifications:
Model: V82S5R5GB
Power: 5.5KW
Input voltage: single phase 190~250V
Output voltage/current: 3-phase 0~220V/23A
Frequency input: 50/60Hz
Output: 0~400Hz
Working temperature: -10~40 degrees
Humidity: 0-95% relative humidity (no condensation)
Material: Industrial ABS plastic
Protection level: IP20
Cooling type: air cooling
