Why need a spring loaded gate caster
Spring-loaded gate casters provide excellent support for gates. They can carry a lot of weight by counterbalancing the load of the gate and allowing it to swing freely. Doing so will prevent the gate from hanging, dragging or worse - being torn off the hinges. An added benefit of a gate caster with an compression spring is the spring allows caster wheels to roll carefully on uneven surfaces without compromising proper support of the gate.

Mounting Tips:
Try to attach the gate caster to the lowest point of the application so that the spring compresses as the caster moves up to the high point.
Try mounting the gate caster as far away from the hinges as possible in order to be the most effective.
Gate casters are not meant to carry the entire weight of the gate. The compression spring provides a shock absorbed ride on uneven ground.

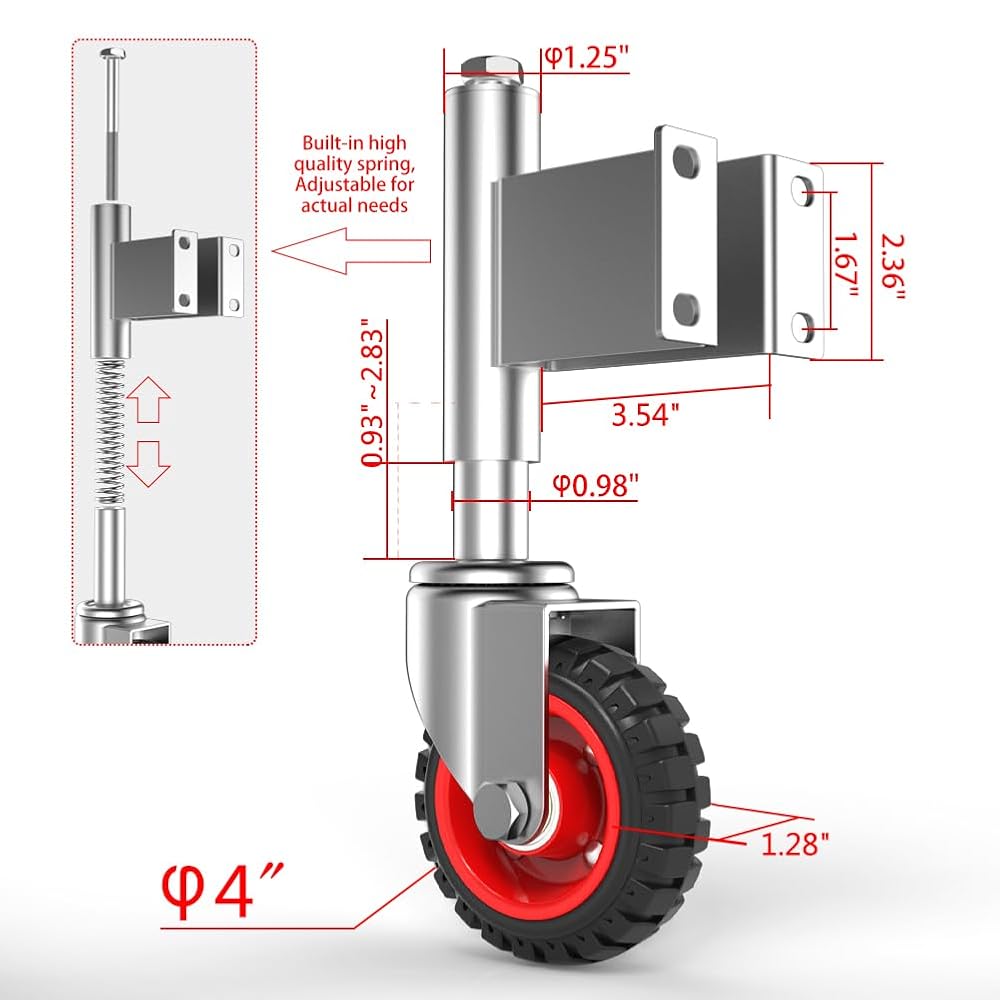

Specification:
Wheel Diameter: 3.94 inch
Wheel Width: 1.38 inch
Bottom To Top Height: 12.20 inch
Mounting Size: 2.36*1.57 inch
Mounting Hole Height From Ground: 9.25 inch
Plate Length From Pole: 3.54 inch
Load Capacity: 330 LBS

Packing List:
Gate Caster X 1
1-3/5” Screws X 4
Washers X 4
Screwdriver X 1

Reduce stress on the hinges of your gates with Homhoo spring-loaded gate casters today!
