KDS Peristaltic Dosing Pump with Stepper Motor or Motor
Suitable for viscous, non-viscous liquid transmission
Capable of transferring liquid containing particles
Thicker tubing wall to withhold higher pressure
Longer service time with resilient tubing
Lowest level of noise
Colorful and custom appearance for you to choose
Basic Parameters
Motor: Motor
Code: FA
Voltage: 220V
Current: 0.07A
Flow: 100~110ml/min
Net Weight: About 0.93 KG
Motor: Stepper motor
Code: FB
Voltage: 24V
Current: 1.8A max
Flow: 5~600 ml/min
Net Weight: About 1.03 KG
Rotor: 3 rotors
Tube: PharMed BPT/Norprene tube
Customize: Yes
Temperature: 0~40
Humidity: Less than 80
KDS Motor Introduction
KDS series peristaltic pump have four kinds motors:
AC gear motor (FA)
Stepper motor(FB)
24V/12V brush motor (FC/FE)
AC shaded-pole motor(FD)
Flow Rate & Tube Selection
Material
BPT
Norprene
Code
B16
N16
IDOD
326.4
3.2×6.4
Flow Rate
(ml/min)
KDS-FA
220V; 0.07A
3 rotors
Pump head
speed:100rpm
100
100
Material
BPT
Norprene
Code
B16
N16
ID*OD
3.2×6.4
3.2×6.4
Flow Rate
(ml/min)
KDS-FB
24V; 1.8A
3 rotors
Pump head
speed:1-400rpm
5-440
(400rpm)
5-440
(400rpm)
Various Applications
Cleaning equipment
Environmentally water treatment
Dish-washing facilities
Analytical instrument
Washing hands adding liquid
House appliances
Separation liquid equipment
Scientific experiments
Packing List
1 × Stepper/Syncrocoush Motor pump with BPT/Norprene tube(3.2*6.4mm).
More Details

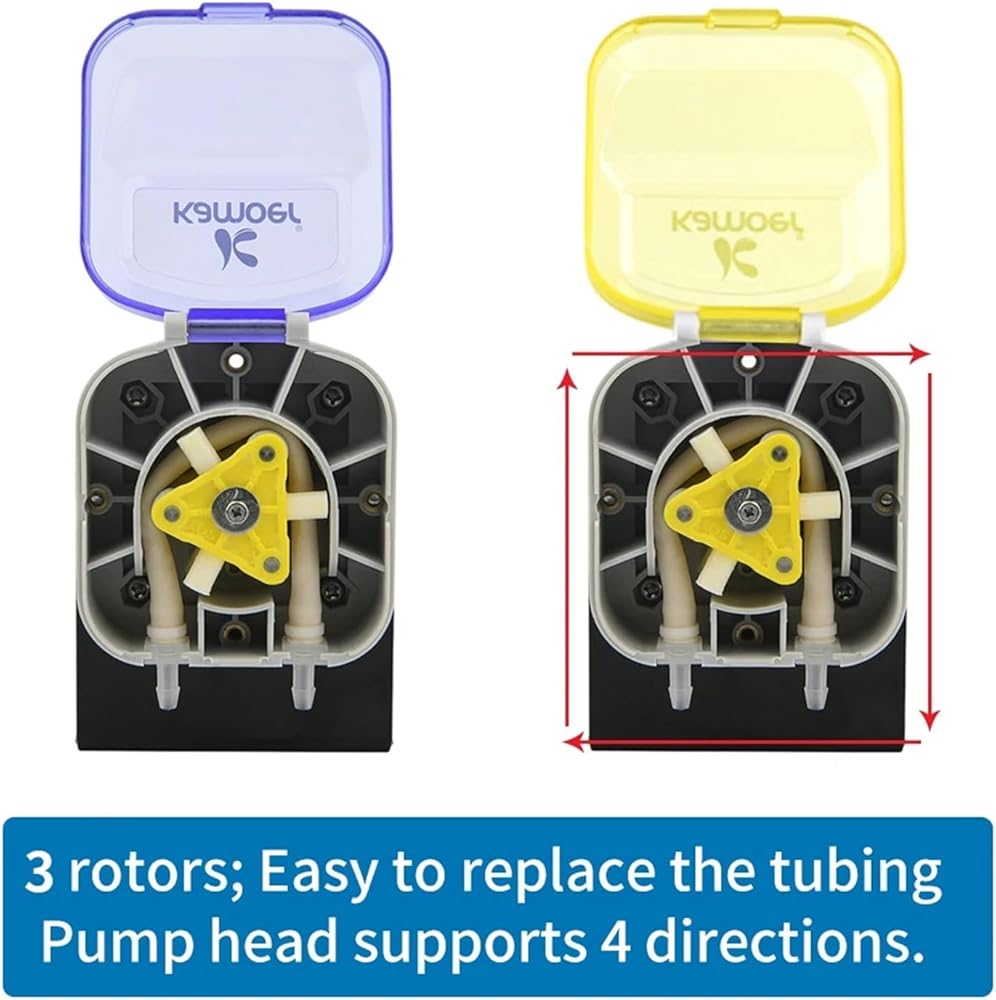

This pump have two ways of fixation, supporting it or sticking a wear through it. These two installation methods make it applicable in different working places. Four directions of pipe joint is acceptable, as shown in the following picture.

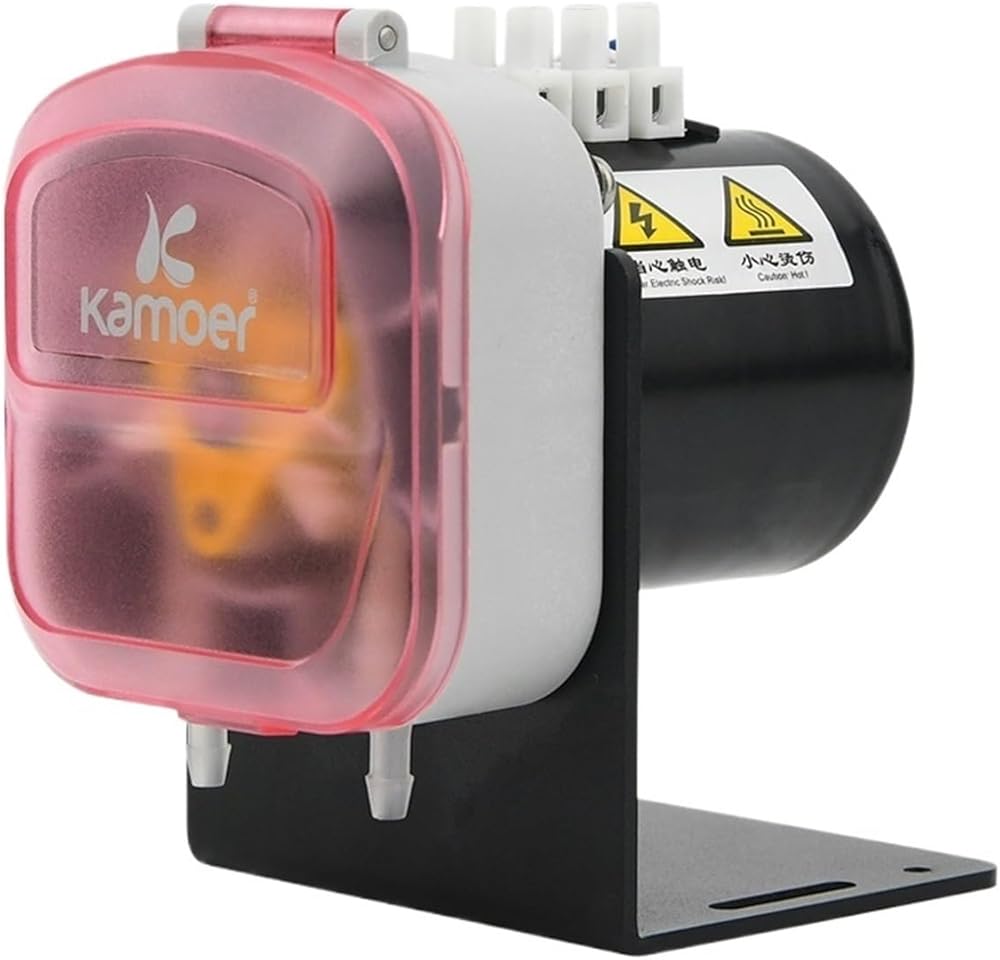

KDS FA Motor pump
Note: the motor line color is updated. Please refer to the last picture about KDS Stepper motor.

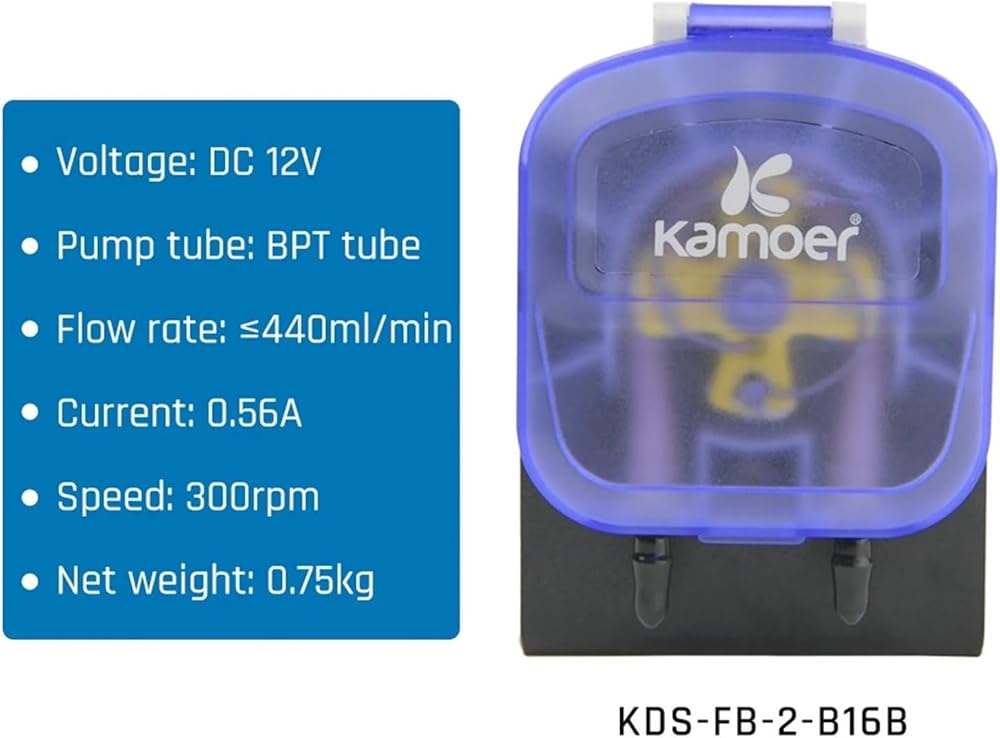

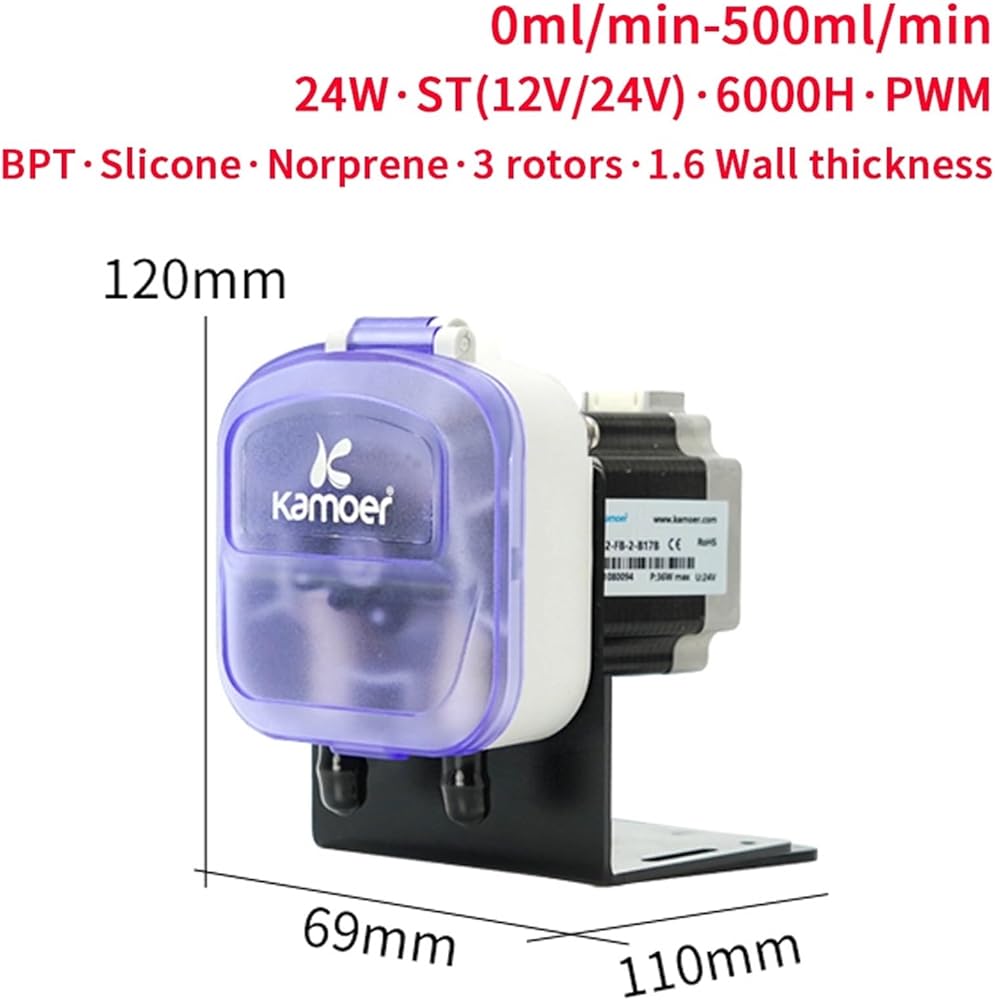

KDS FB Stepper motor pump
Note: Driver board speed control board is not default material, if you require it, make sure your need is acknowledged by sales.
Installation Method
KDS FA Motor pump
KDS FB Stepper motor pump
Step angle 1.8°

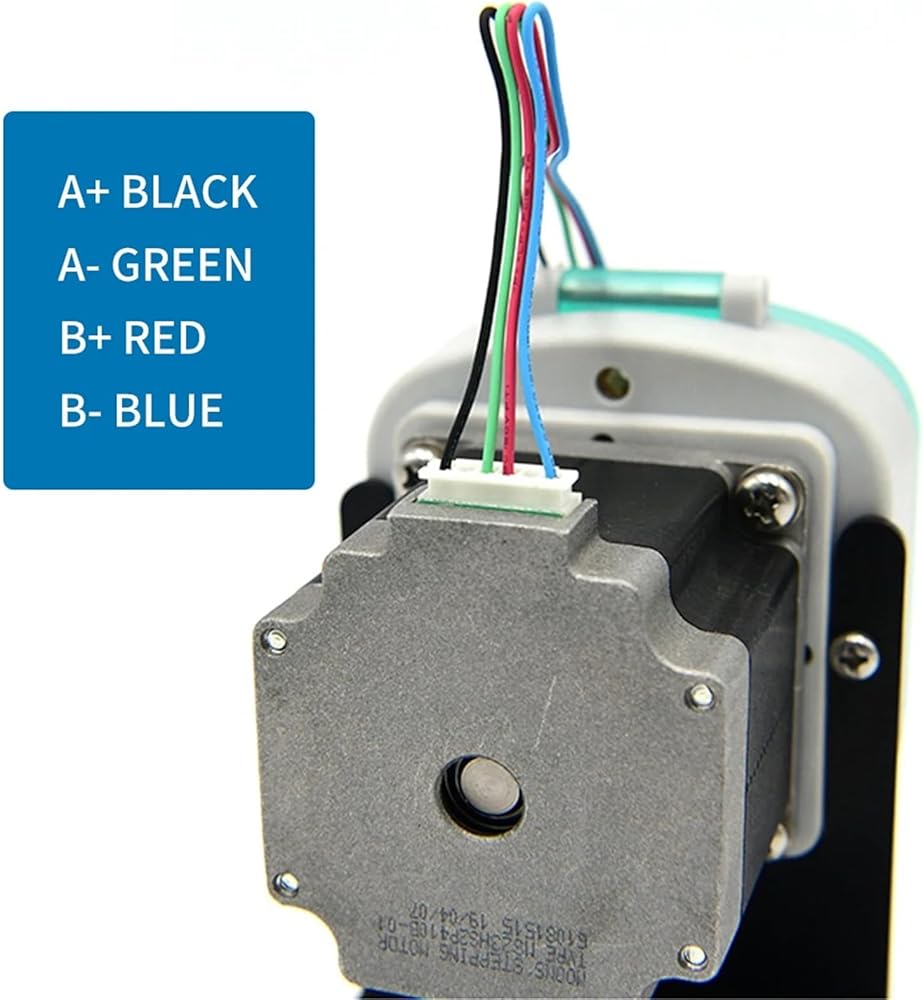

A+ Black; A- Green; B+ Red; B- Blue
