【 Aviation-grade Aluminum Structure 】 This product is made of aviation-grade aluminum materials and is not prone to corrosion and wear. It is an ideal gift for friends engaged in mechanical production, making their measurements more convenient.
【 Manual Control 】 The running direction of the slider can be manually controlled to achieve precise positioning and adjustment. The ergonomic handle provides a comfortable grip and locking mechanism, making it less likely for the slides to loosen. The operation is intuitive and requires no training or experience.
【 Easy to Use 】 It does not require a complex control system or power supply, is easy to operate and has low maintenance costs. The surface is smooth. After use, just wipe off the dust with a towel. Compared with electric systems, this is a cost-effective solution.
【 Professional-level Versatility 】 It is used for precise measurement in C-N-C equipment transformation, production machinery, testing equipment, and optical laboratories, as well as for fine adjustment of displacement, positioning, and motion of mechanical equipment.

وصف

Specifications
Item Number: PT-SD102P/10
Travel Range: 50mm/100mm
Actuator Type: Grinding Screw in Center
Travel Guide: Dovetail

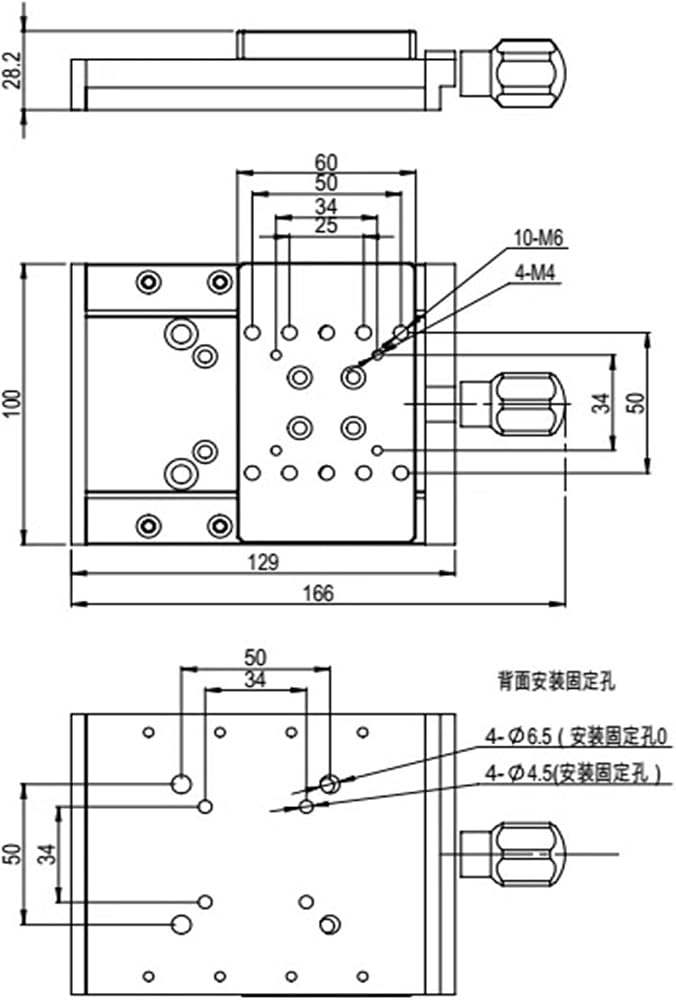

Platform: 100mm × 60mm
Parallelism: 30m
Straightness: 50m
Driving Parallelism:40m
Minimum Scale: 0.02mm
Minimum Adjust Distances: 5m
Material Finish: Aluminum Alloy - Black-Anodized
Load capacity: 12KgsWeight: 0.7kgs

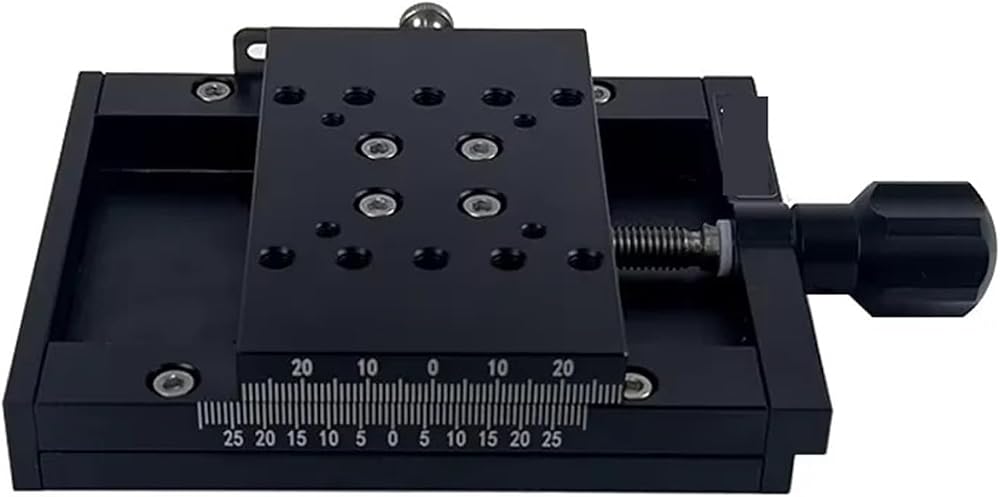

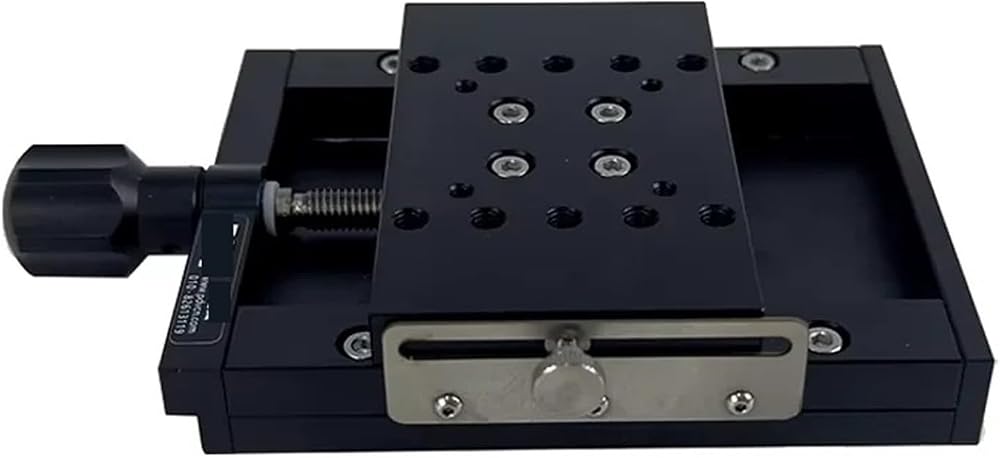

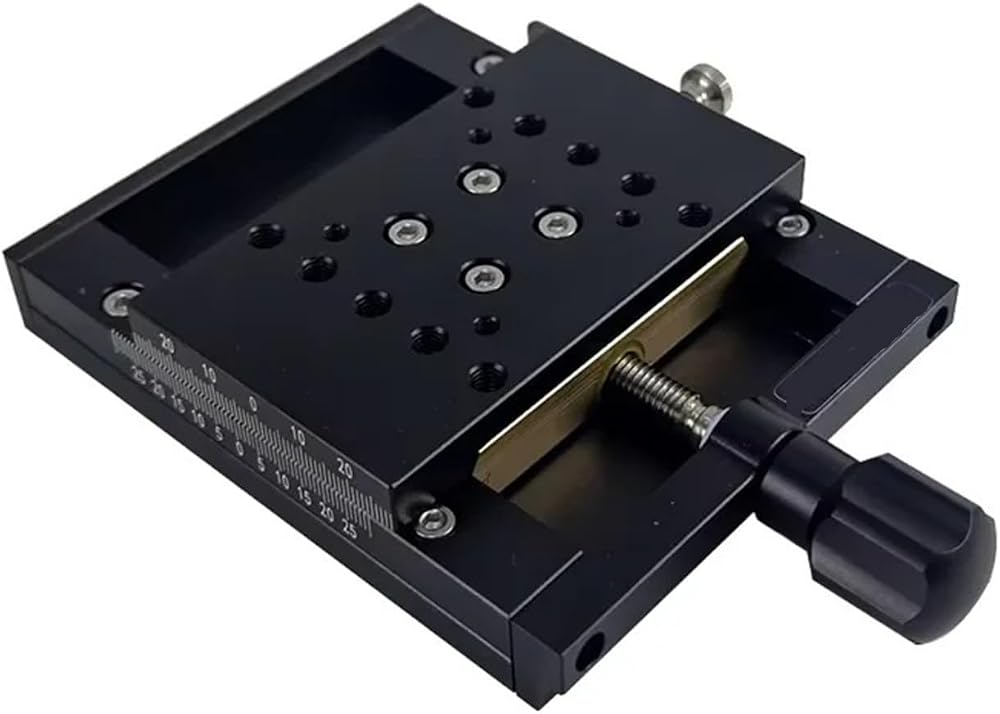

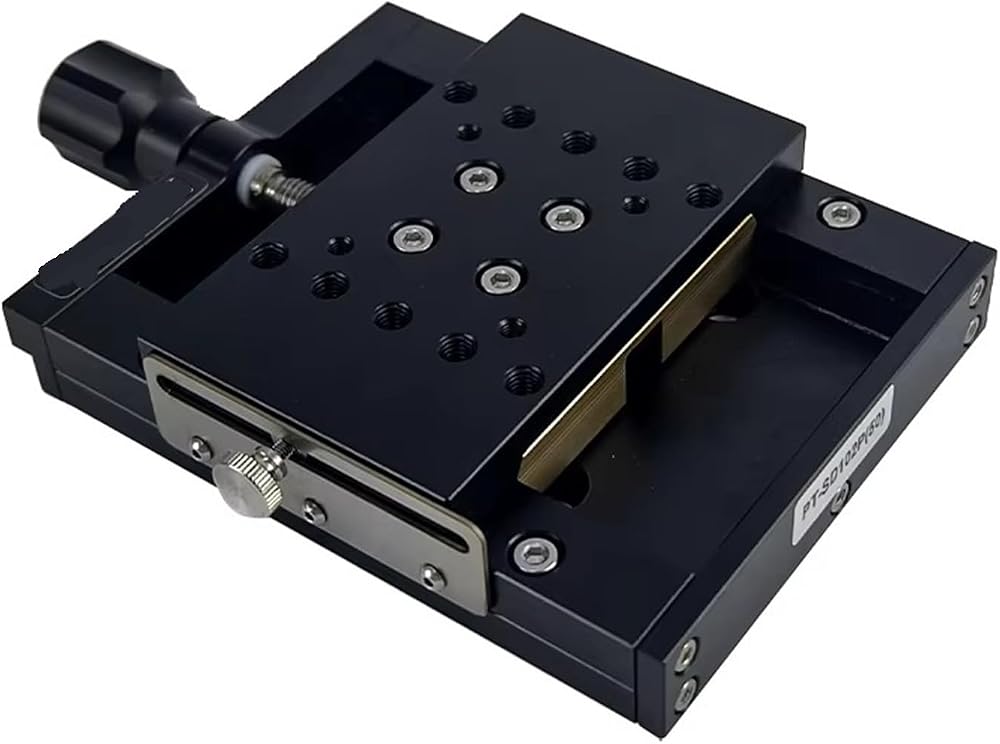

Single-Axis Flexure Translation Stages
Manual Linear Stage
Linear Translation Stages
x-Axis Goniometer
==========

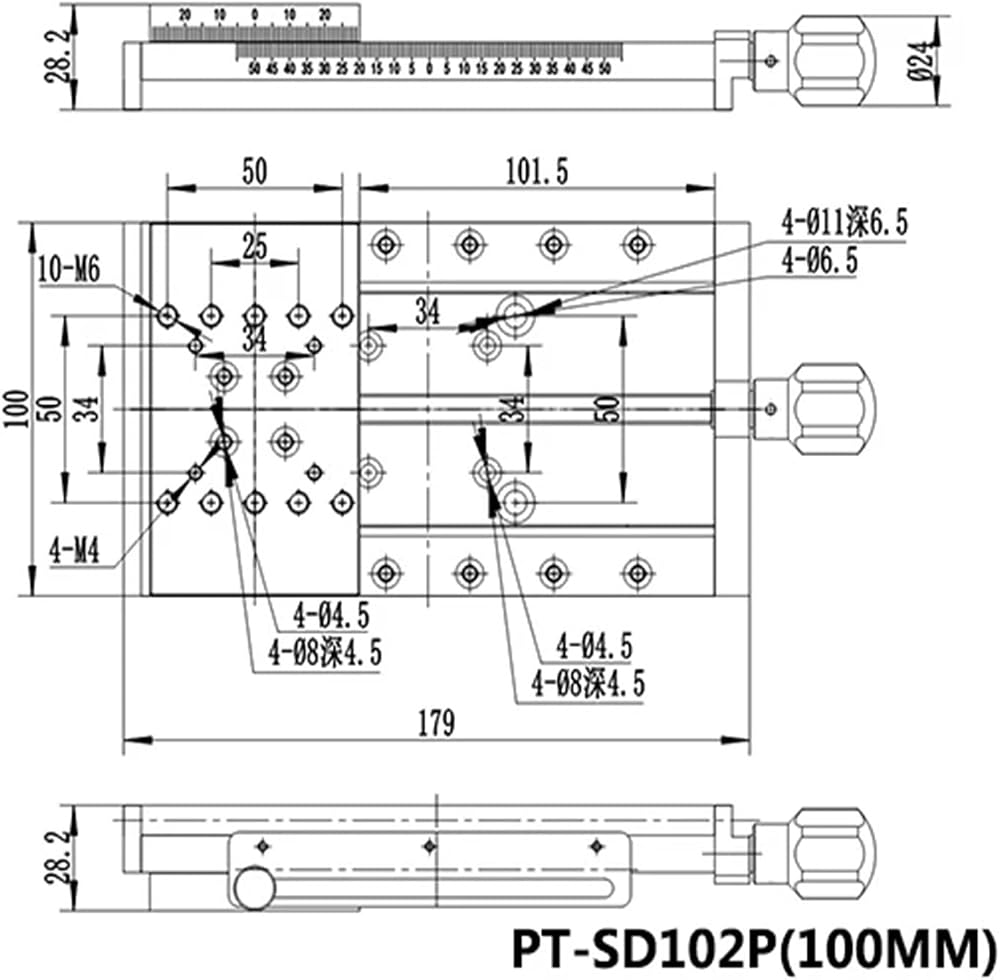

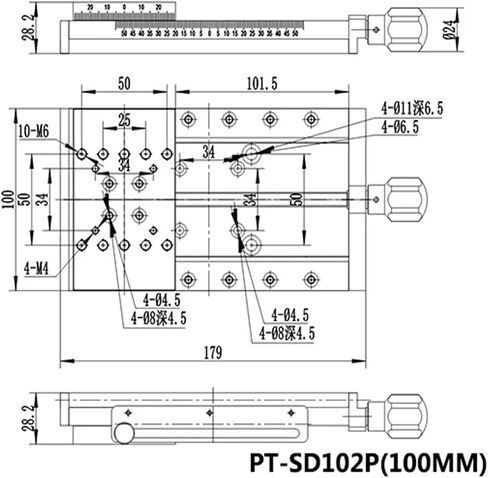

Model Number : PT-SD102P
DIY Supplies : Woodworking
Origin : Mainland China
