*Please check the year, make, model and engine size. Thank you.
Specifications and Features:

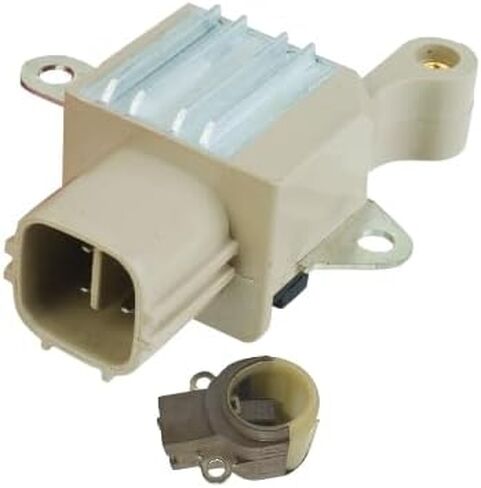

TYPE Regulator
CIRCUIT B-CIRCUIT
LAMP STANDARD LAMP - NO OUTPUT
LRC 6 SECOND
PLUG CODE 295
PLUG TYPE 295
SYSTEM VOLTAGE 12
TERMINALS IG, S, L, M(FR)
VOLT SET 14
TYPE Brush Holder
CONTACT SURFACE CONCAVE
INSULATED LEAD NO
LEAD ATTACH LOCATION SIDE
LENGTH 15
LENGTH LEAD 48
TERMINATION TYPE NONE
THICK 4.8
VOLT 12
WIDTH 7
TYPE Brushes
INSULATED LEAD NO
LEAD ATTACH LOCATION SIDE
LENGTH 15
LENGTH LEAD 48
TERMINATION TYPE NONE
THICK 4.8
VOLT 12
WIDTH 7
TYPE Slip Ring
ID 5.8
LENGTH LEADS 11
LENGTH OA 46.5
LENGTH RING 1 8.2
LENGTH RING 2 8.2
OD SLIP RING 14.3
TYPE Bearing
ID 12
IND REF NUM 6001
OD 28
SIDE-1 FEATURE RUBBER SEAL
SIDE-2 FEATURE RUBBER SEAL
WIDTH 8
Compatible Vehicles:
Lex
ES330 V6 3.3L 2004-2006
ES350 V6 3.5L 2016-2018
RX330 V6 3.3L 2004-2006
RX350 V6 3.5L 2010-2013
LX570 V8 5.7L 2013-2016
LX570 V8 5.7L 2008-2011
Ponti
Vibe L4 1.8L 2009-2010
Vibe L4 2.4L 2009-2010
Sci
tC L4 2.5L 2011-2012
tC L4 2.4L 2005-2010
xD L4 1.8L 2008-2014
xB L4 2.4L 2008-2015
Toyot
Camry L4 2.4L 2004-2009
Camry L4 2.5L 2010-2011
Camry V6 3.0L 2004-2006
Camry V6 3.3L 2004-2006
Corolla L4 1.8L 2009-2013
Corolla L4 2.4L 2009-2010
Matrix L4 1.8L 2009-2010
Matrix L4 2.4L 2009-2013
Solara L4 2.4L 2004-2008
Solara V6 3.3L 2004-2008
Highlander L4 2.4L 2004-2007
Highlander V6 3.3L 2004-2007
Highlander V6 3.5L 2011-2016
Land Cruiser V8 5.7L 2013-2016
Land Cruiser V8 5.7L 2008-2011
Sequoia V8 4.6L 2010-2012
Sequoia V8 5.7L 2008-2022
Tundra V8 4.6L 2010-2019
Tundra V8 5.7L 2007-2021
RAV-4 L4 2.5L 2009-2012
Venza V6 3.5L 2009-2015
Interchange #
Regulator
IN6301
Brush Holder Assy
39-8206
Brushes
38-8201
Slip Ring, Rotor
28-82854
Bearing, Ball
6-101-4, 6-101-4N, 6-101-4W
USED ON
Lex (2004-2018) ** Ponti (2009-2010) ** Sci (2005-2015) ** Toyot (2004-2022) **
UNIT NUMBERS
Den-so 104210-2100, 104210-2101, 104210-2104, 104210-2350, 104210-2351, 104210-2352, 104210-2360, 104210-2362, 104210-2850, 104210-2860, 104210-2863, 104210-2864, 104210-3040, 104210-3041, 104210-3042, 104210-3043, 104210-3140, 104210-3141, 104210-3460, 104210-3470, 104210-3471, 104210-3650, 104210-3651, 104210-3652, 104210-3750, 104210-3751, 104210-4030, 104210-4090, 104210-4091, 104210-4190, 104210-4200, 104210-4201, 104210-4202, 104210-4510, 104210-4511, 104210-4570, 104210-4571, 104210-4573, 104210-4870, 104210-4871, 104210-5080, 104210-5300, 9664219-304, 9664219-314, 9664219-365, 9664219-375, 9664219-403, 9664219-451, 9664219-487, TN104210-2352, TN104210-2362; For.d 5F9T-10300-BB, 5F9Z-10346-BA, 5F9Z-10V346-BBRM, 6F9T-10300-DA; For.d Engineering 5F9T-BB, 6F9T-DA; Lex 27060-0A100, 27060-0A130, 27060-0A130-84, 27060-0P151-84, 27060-20280, 27060-20280-84, 27060-31112, 27060-50330, 27060-50360, 27060-50360-84, 27060-50360-84; Toyot 27060-0A100, 27060-0A130, 27060-0A130-84, 27060-0A140, 27060-0A140-84, 27060-0P020, 27060-0P020, 27060-0P020-84, 27060-0P150, 27060-0P151, 27060-0P151-84, 27060-0S010, 27060-0V020, 27060-0V030, 27060-20170, 27060-20170-84, 27060-20280, 27060-20280-84, 27060-28130, 27060-28130-84, 27060-28290, 27060-28290-84, 27060-31020, 27060-31021, 27060-31021-84, 27060-31021-84, 27060-31112, 27060-31190, 27060-50330, 27060-50360, 27060-50360-84
