Actuator
A=Normal Type
B=manual and indicator type
C=indicator type
Features:
1. Miniature size fit for small systems.
2. Long service life - More than 100,000 circles
3. Low working current, suitable for battery driving
4. Manual and on/off Indicator is safe& convenient
5 IP67 Protection
Specifications:
Size: suitable for valves of: 1/4", 3/8", 1/2", 3/4" 1" 1 1/4"
Voltage: DC9-24V
Working pressure: 1.0Mpa
Wiring method: 3/7 wires (CR303,CR703)
Open/close time: 5S
Life time: 100000 times
Actuator material: Engineering plastic.
Actuator rotation: 90degree
force: 3Nm
Cable length: 0.5m
Environment temperature: -15degree ~ 50degree
Indicator: No
Manual : No
Protection class: IP67

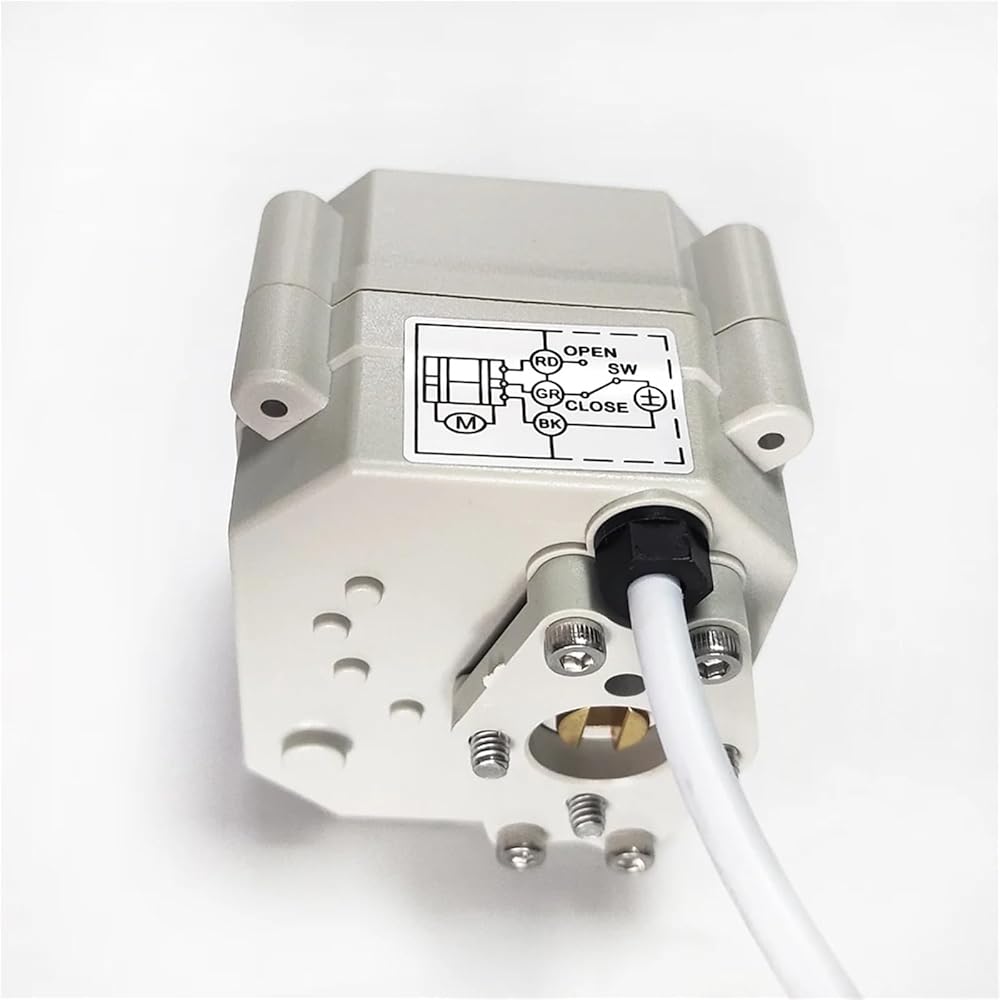

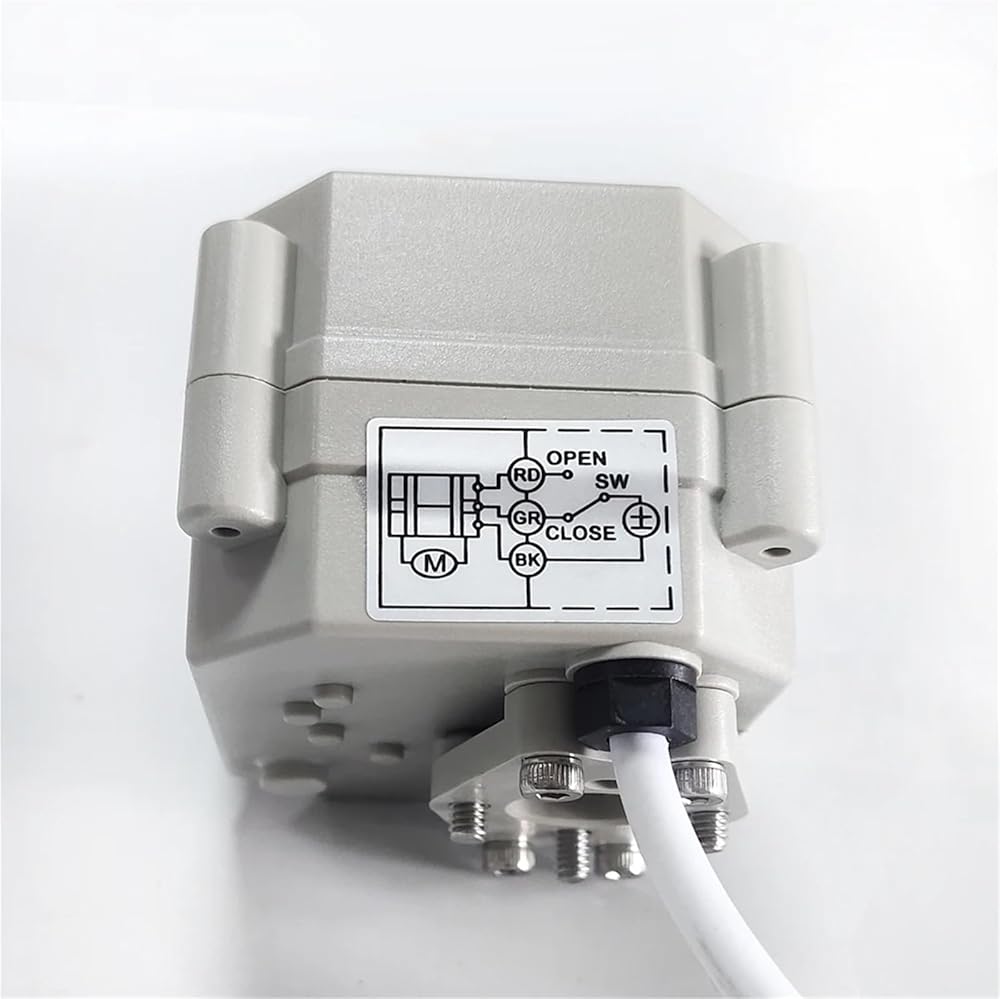

Wring diagram:
Electric actuator dimension:
Application:
1. HVAC systems.
2. Water treatment.
3. Chemical process.
4. IC card water meters, heat energy meters, solar instrument.
5. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
==========
Actuator Mode : Without Manual And Instruction
Structure : control
Port Size : DN8 to DN32
Media : Water
Material : Plastic
Temperature of Media : Medium Temperature
Power : electric motor
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : TFA20-T-A-D9-24-37
Is Smart Device : No
Voltage : ACDC9-24V
Wiring : 3/7 wires(CR303,CR703)
force : 3 Nm
Position indicator : No
Manual : No
Gears : Metal Gears
