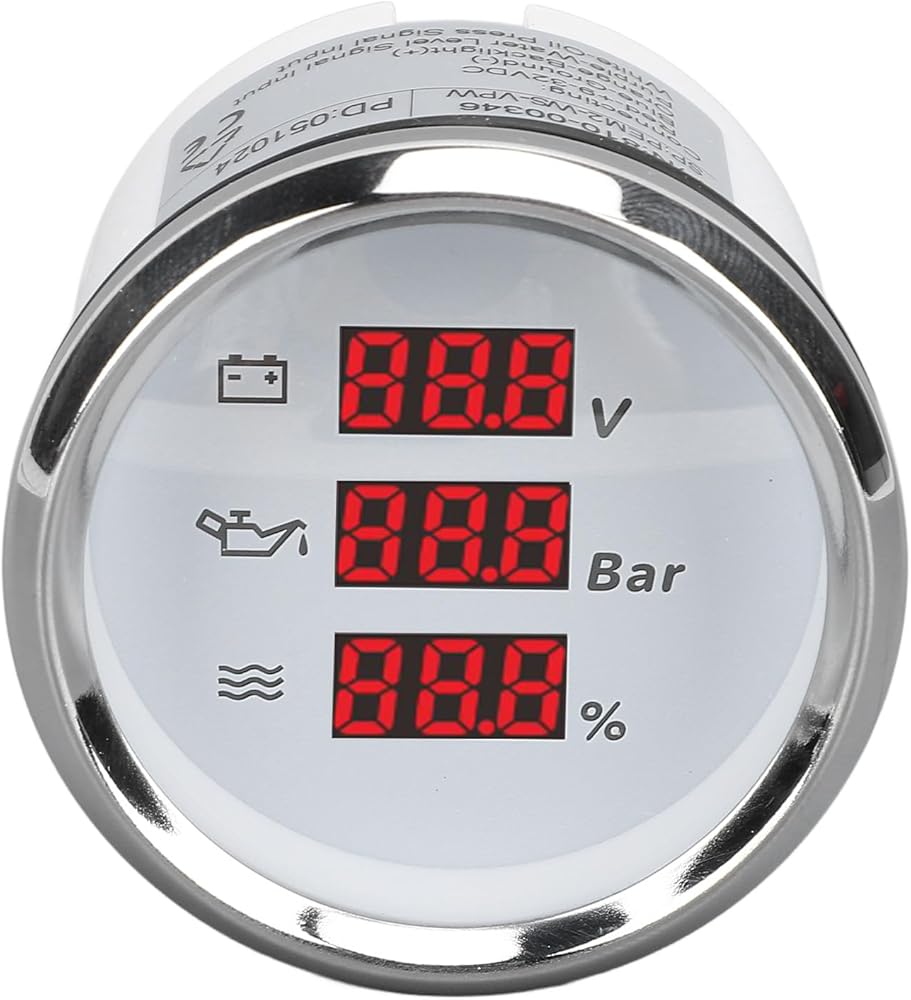

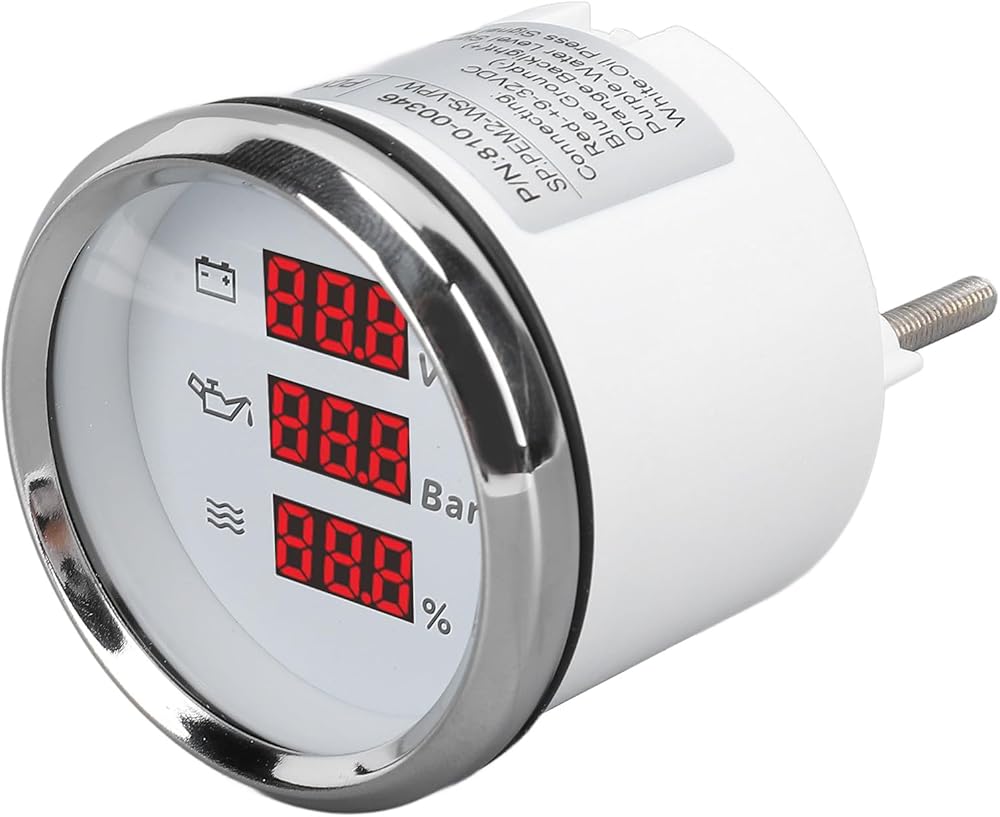

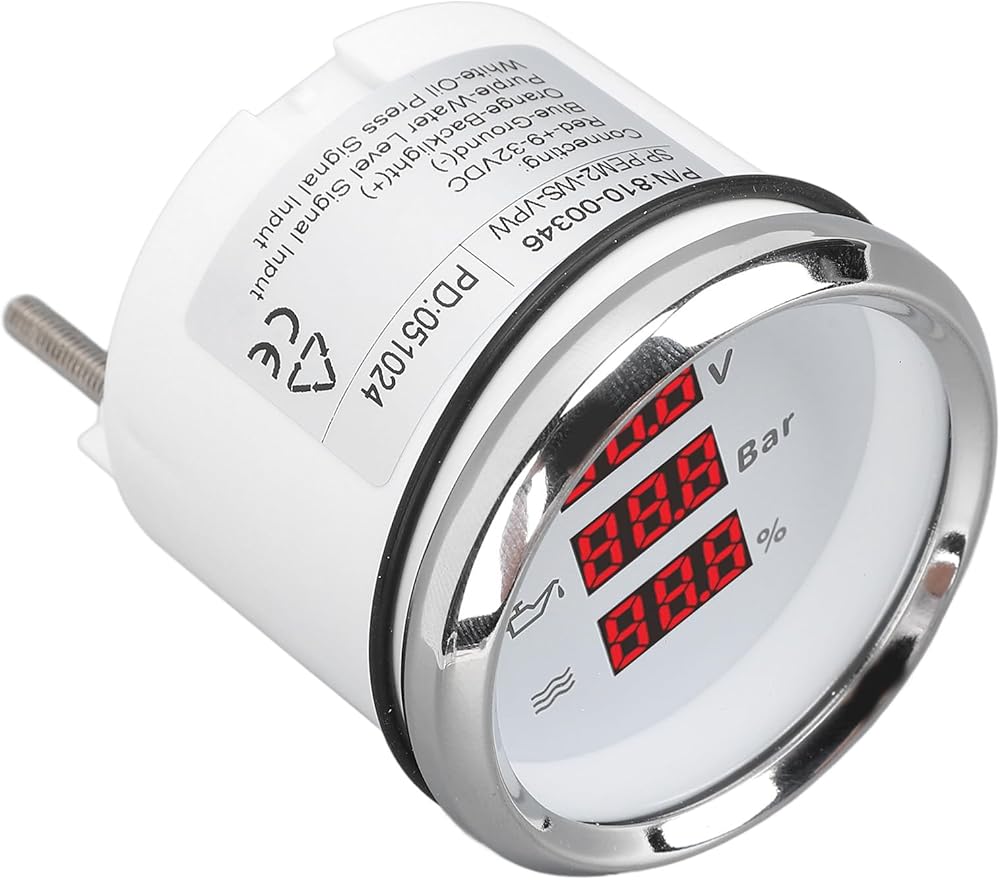

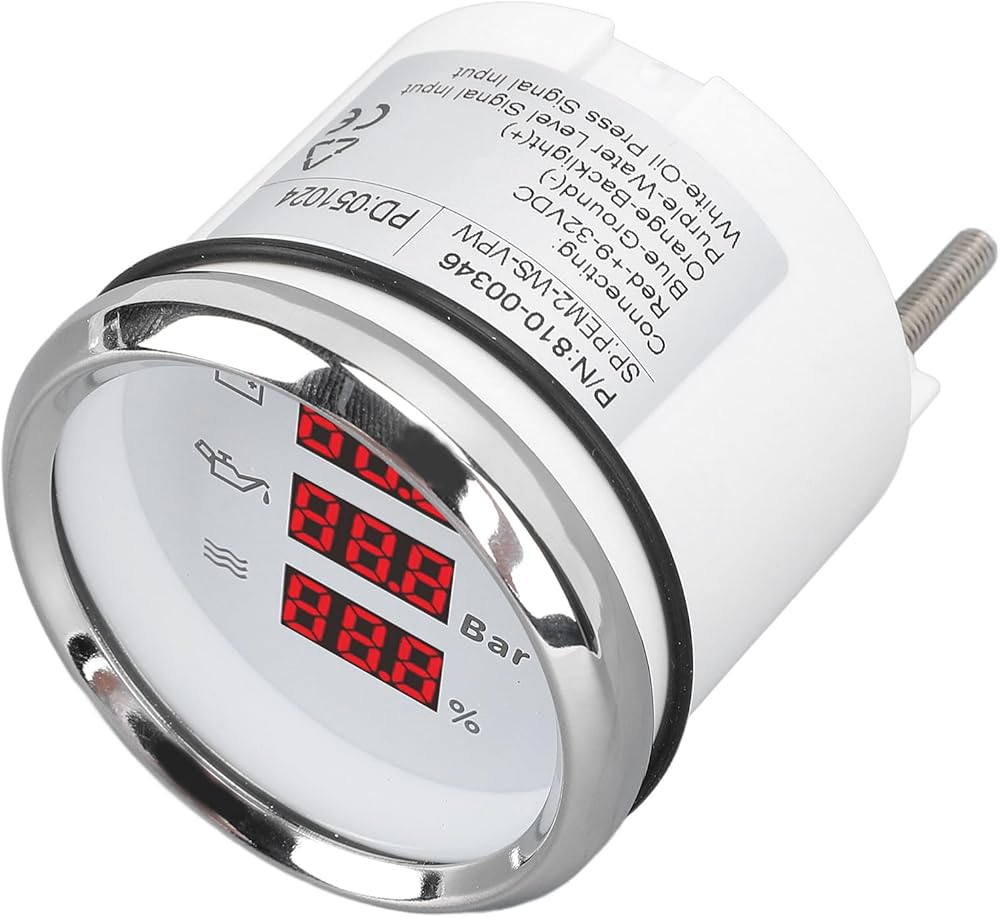

1. Red Backlight: The voltage oil pressure water level meter features a digital display with red backlight for easy viewing at night, high display accuracy, great repeatability, universal applicability, reliable stability, and simple use.
2. Wide Voltage Range: With a wide operating voltage range of 9 to 32VDC, this oil pressure water level voltmeter gauge offers low power consumption, long life, high accuracy, short startup time.
3. IP67 And Anti Fog: Made of 316L stainless steel bezel and anti fog glass, this voltage oil pressure water level gauge can withstand harsh weather and marine environment, with anti fog function and IP67 rating.
4. Secure Connection and Versatile: The wiring of this oil pressure water level voltage meter gauge is designed with a buckle, and the connection is firm, so that it can work even under strong vibration, suitable for marine, boat, fishing boats, yachts, outboard engines, trucks, motorcycles, and more.
5. Multifunctional and Efficient Use: The 3 in 1 design means you only need this digital gauge to get voltage, oil pressure, and water level information, reducing the number of devices and space utilization, users do not need to switch between different meters, easy to read and understand.

Spec:
Item Type: Voltage Oil Pressure Water Level Gauge
Material: Stainless Steel 316L Bezel, Anti Fog Glass
Protection Rating: IP67, Fully ; Excellent Anti Fog Function
Display: Voltage, Oil Pressure, Water Level
Backlight Color: Red (default), Green, Blue, White, Yellow, Yellow Green, Orange, Purple (color can be switched)
Operating Voltage: 9-32VDC
Operating Current: ≤60mA
Operating Temperature: -30℃ to +70℃
Storage Temperature: -40℃ to +85℃
Protection Rating: IP67, can work underwater at 1m / 3.3ft depth
Fitment: Suitable for Boats, Yachts, RVs, Trucks, Motorcycles

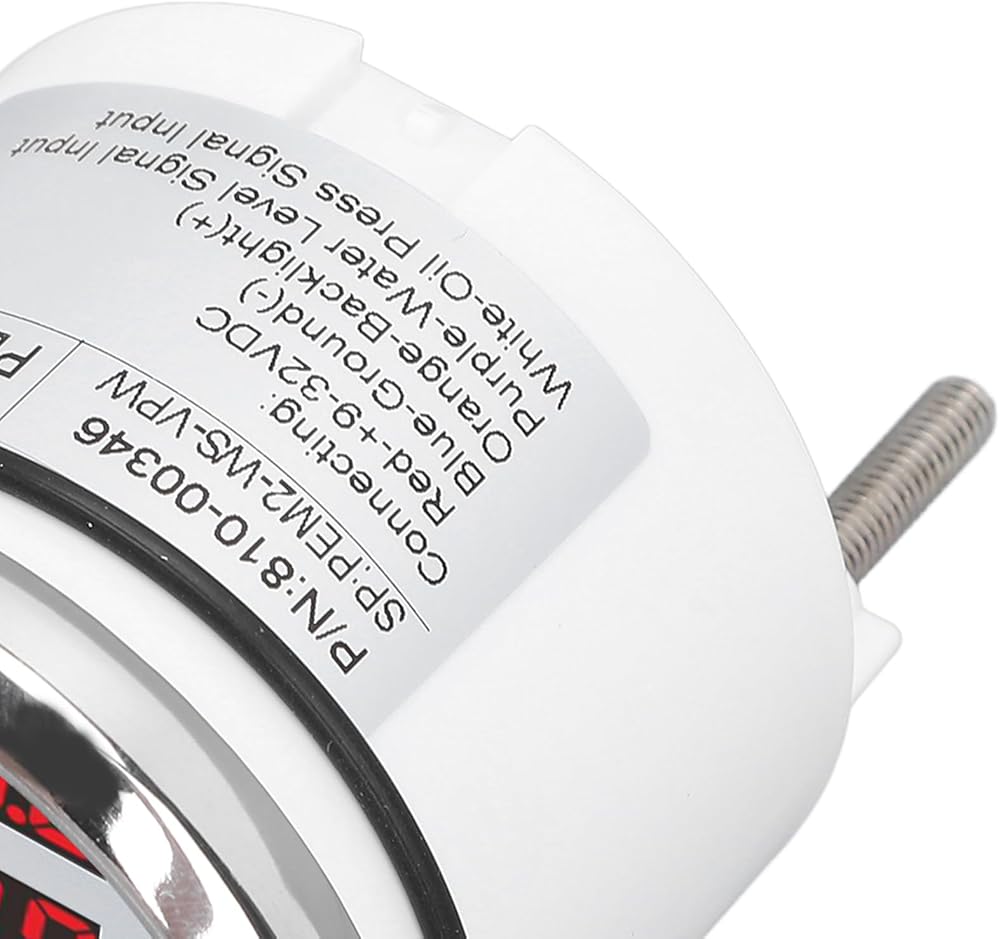

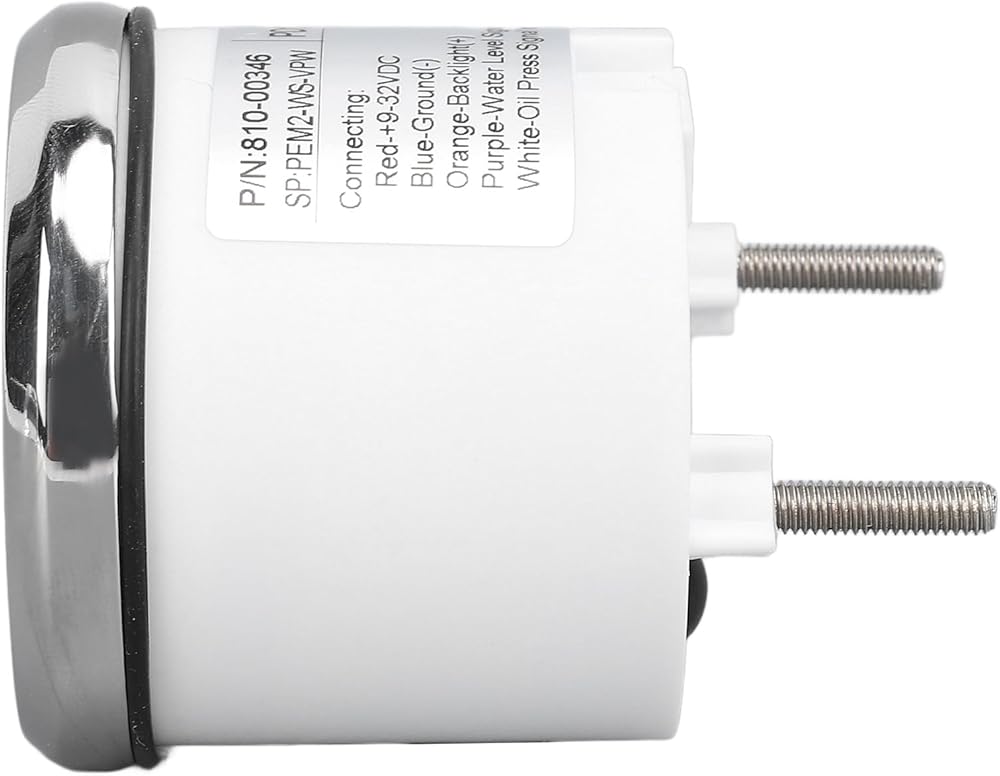

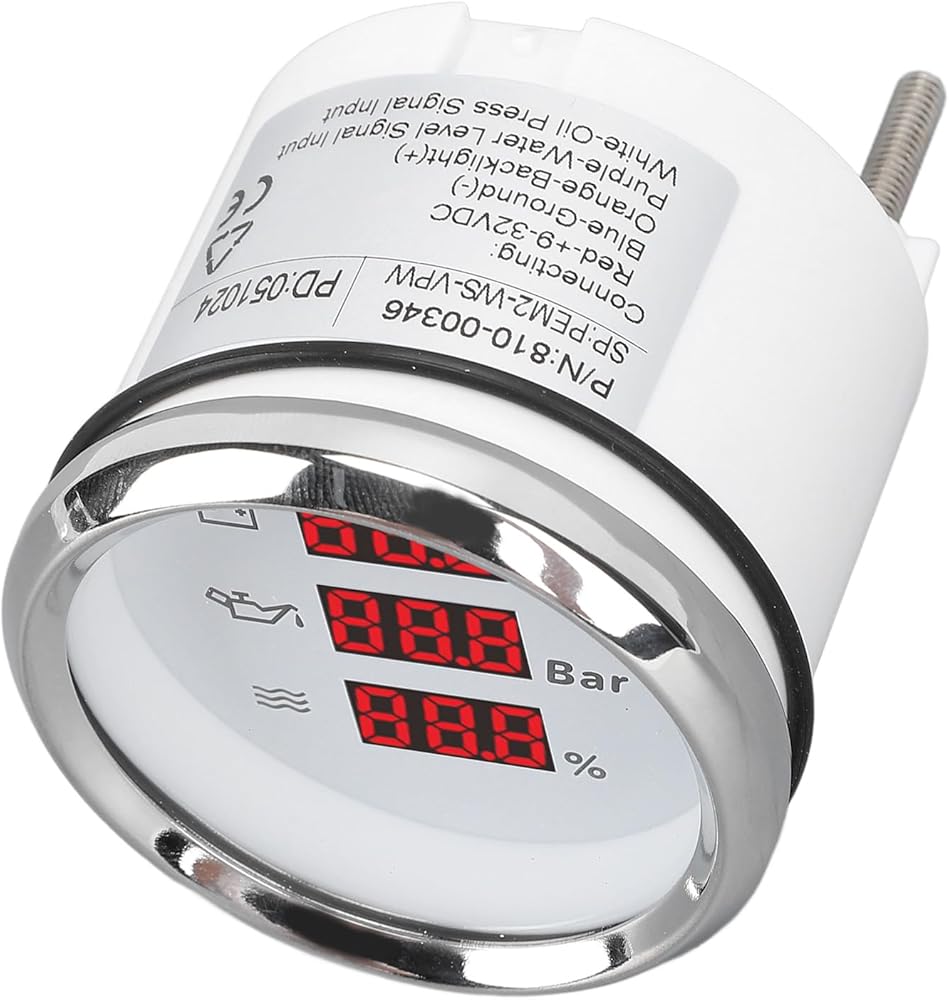

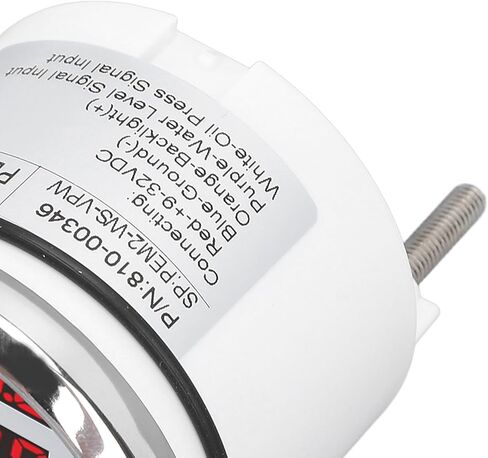

Wiring:
1. Red Wire: +9-32VDC
2. Orange Wire: Backlight
3. Blue Wire: Power Negative (-)
4. White Wire: Oil Pressure Gauge Signal Input
5. Purple Wire: Water Level Gauge Signal Input

How to Use:
Installation steps:
1. Cut a 52mm diameter hole in your central control or other pre installed location
2. Insert the gauge into the hole
3. Align the bracket screw holes with the screws on the back of the gauge, tighten the screws, and secure the panel with the bracket and frame
4. Plug the power harness directly into the back connector of the gauge, then connect the corresponding sensor and harness according to the provided instructions, and power on

Gauge function instructions:
1. Short press the Mode button (2. Long press the Mode button (>4 seconds) to enter setting mode
Short press the button (2 seconds) to cycle through the parameters of the gauge. For example, setting parameters for a water level gauge can be selected in the range of FO1‑FO5; setting parameters for a oil pressure gauge can be selected in the range of P01‑P03
3. After selecting the desired parameter group for the gauge, release the button. The data will be saved automatically after 45 seconds without using the gauge and exit the setting mode, entering the normal display mode.

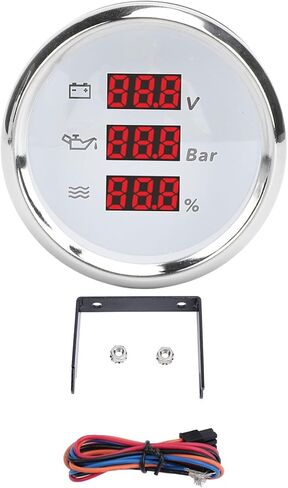

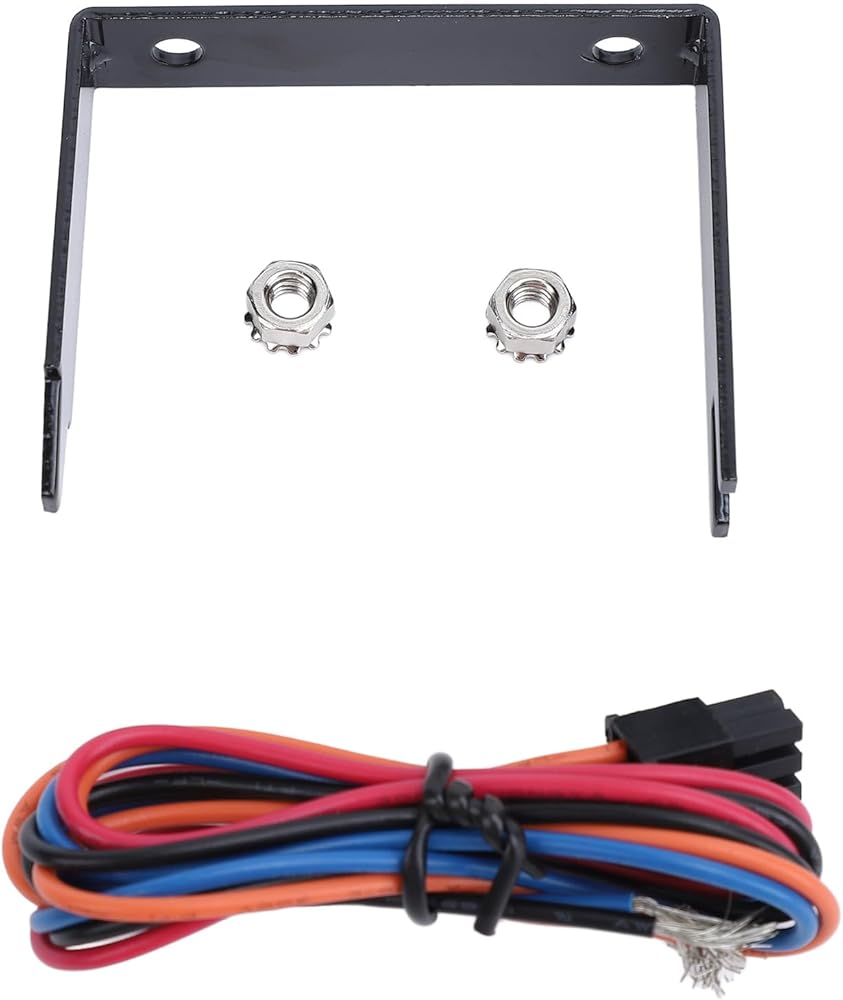

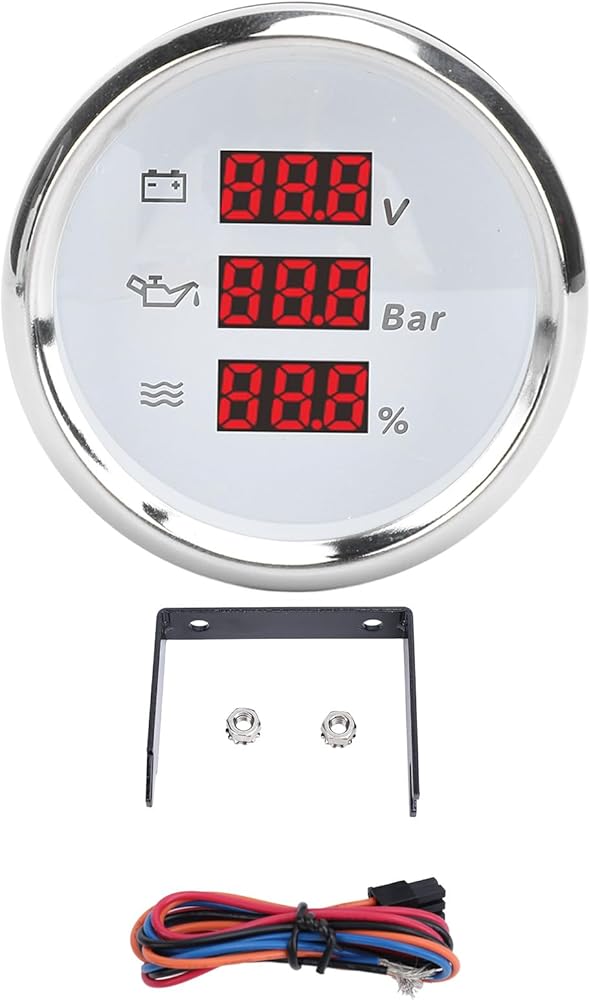

Package List:
1 x Gauge
1 x Wiring
1 x Mounting Base
2 x Nuts
1 x Instruction Manual

Notice:
The product comes with an instruction manual, please read it carefully before installation.
