slip ring

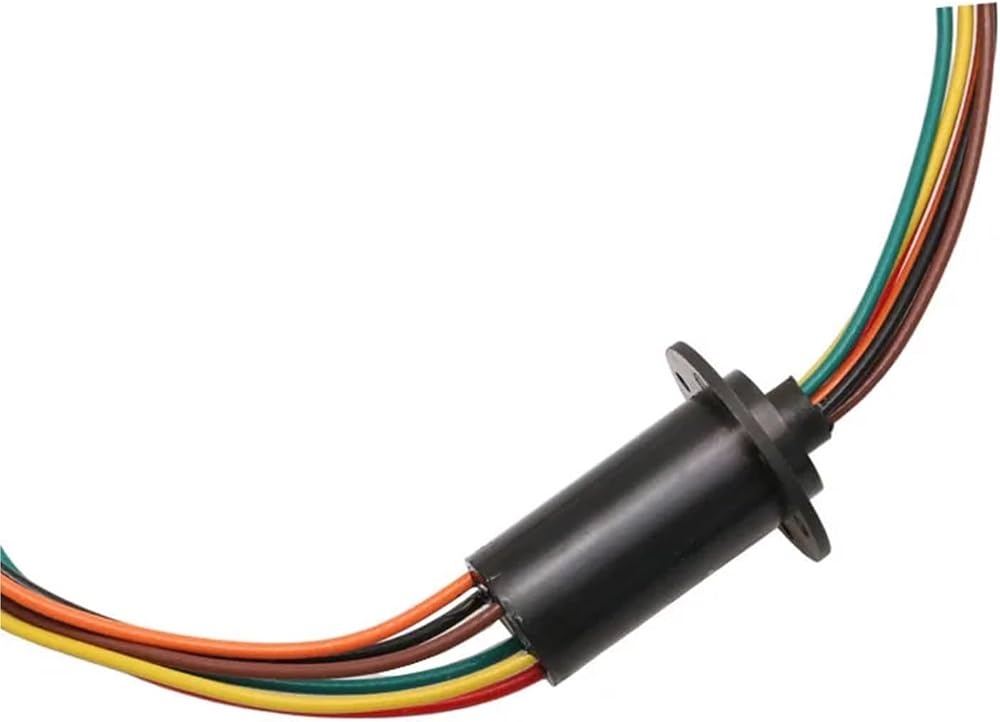

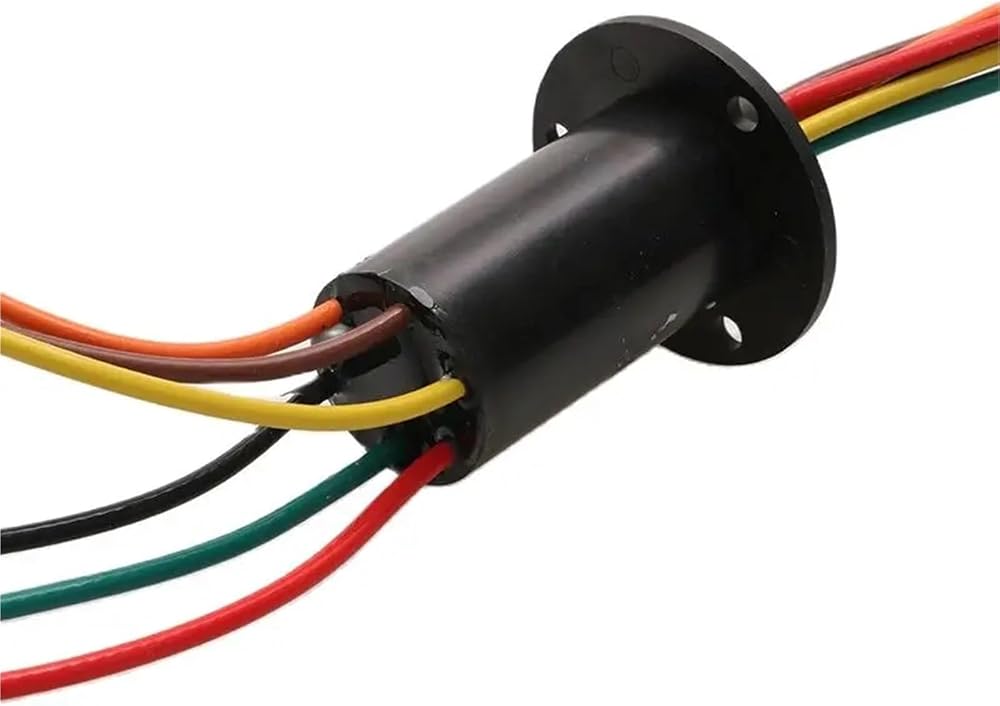

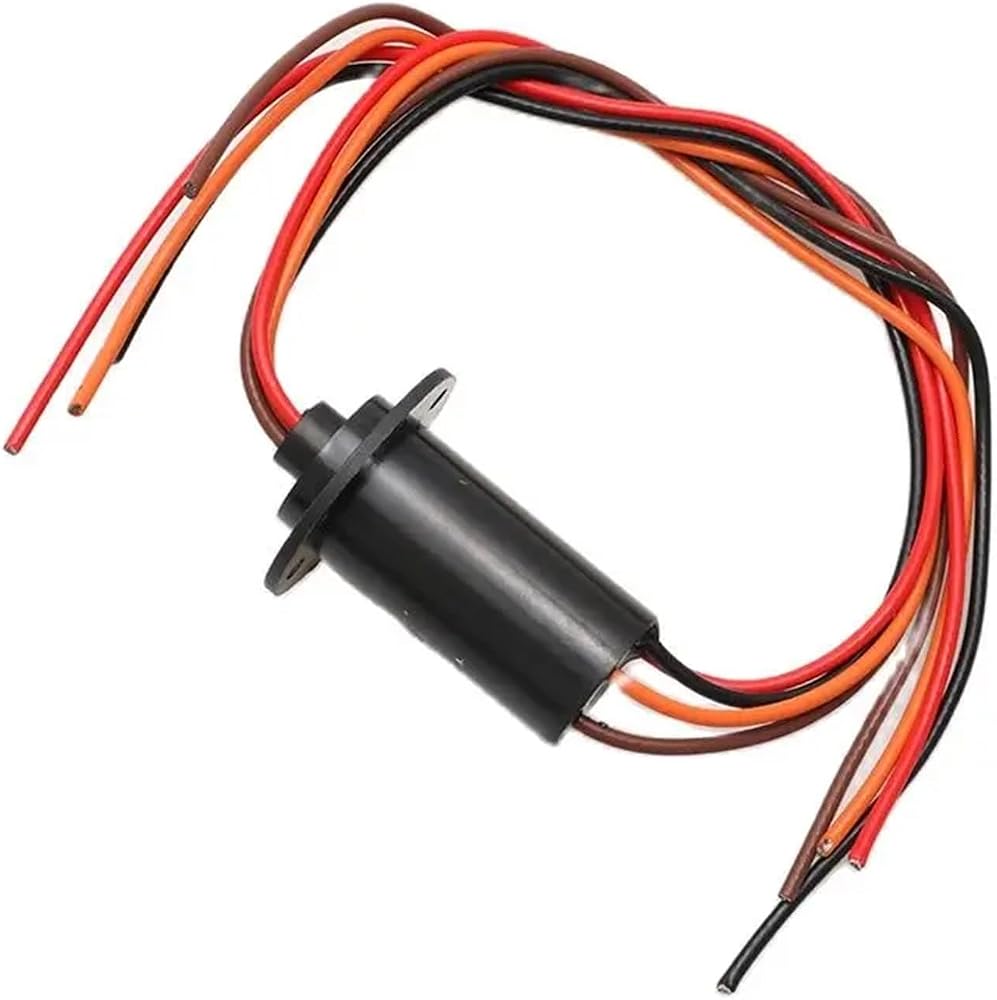

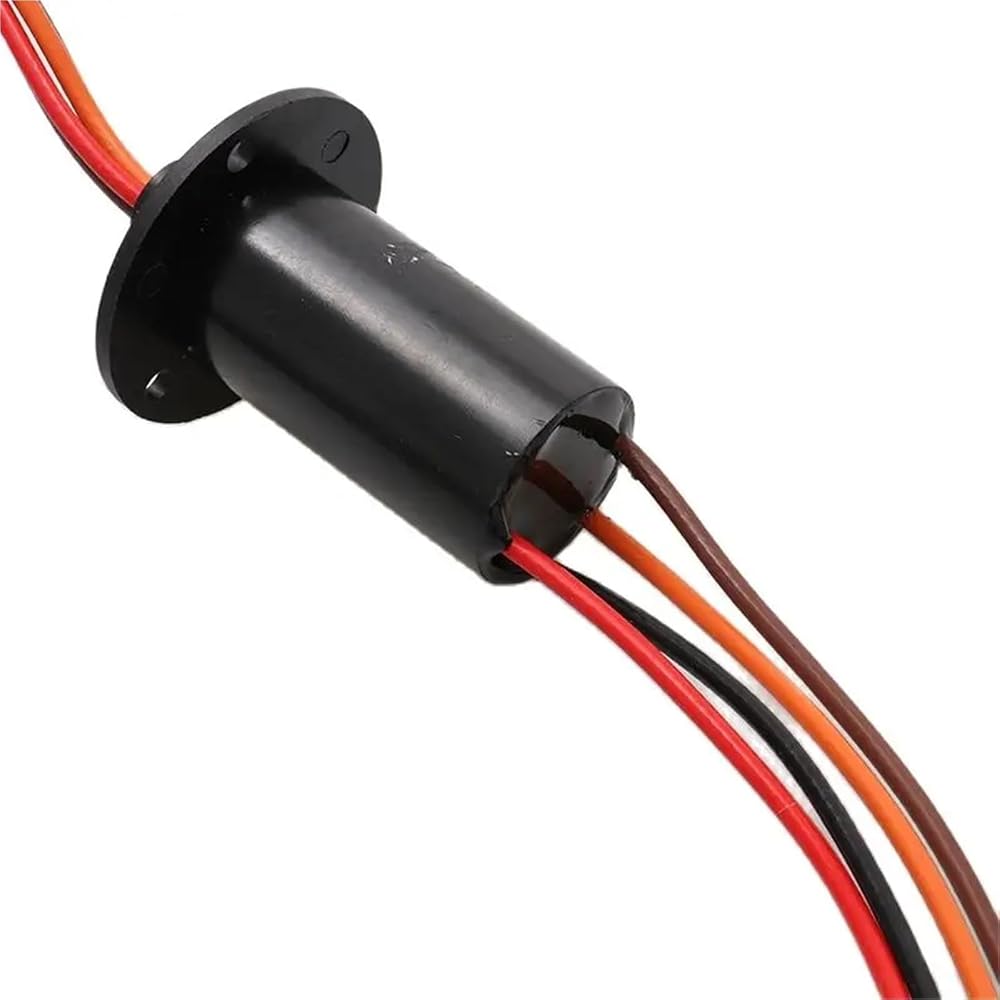

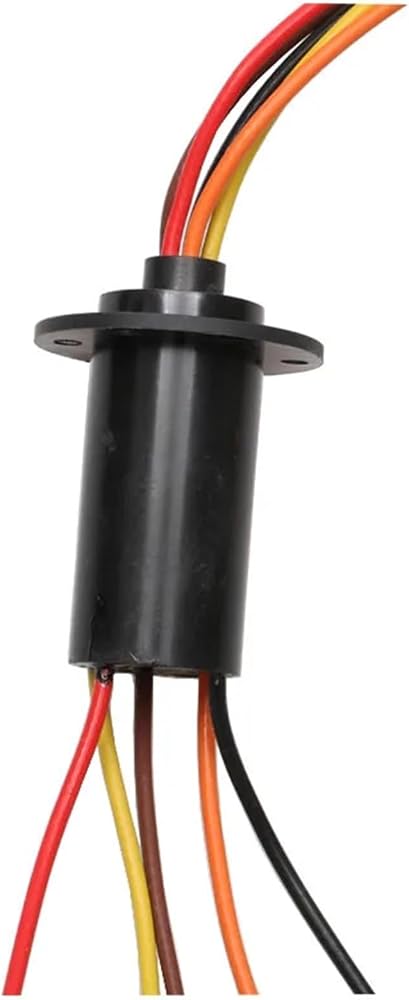

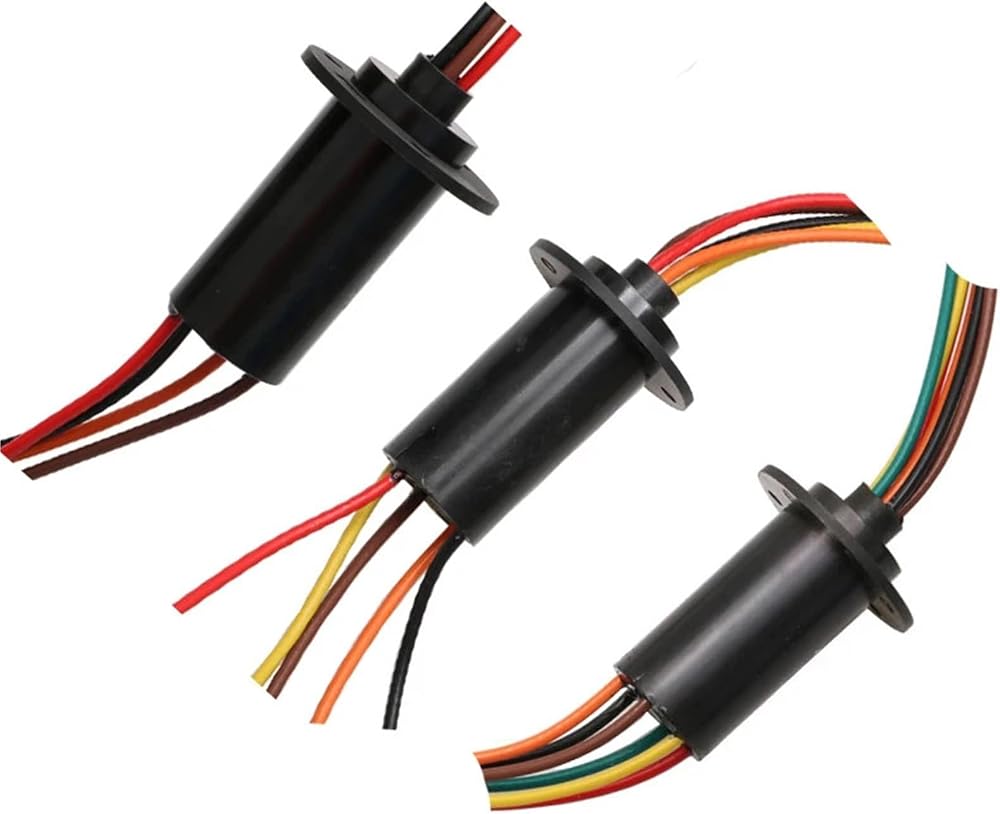

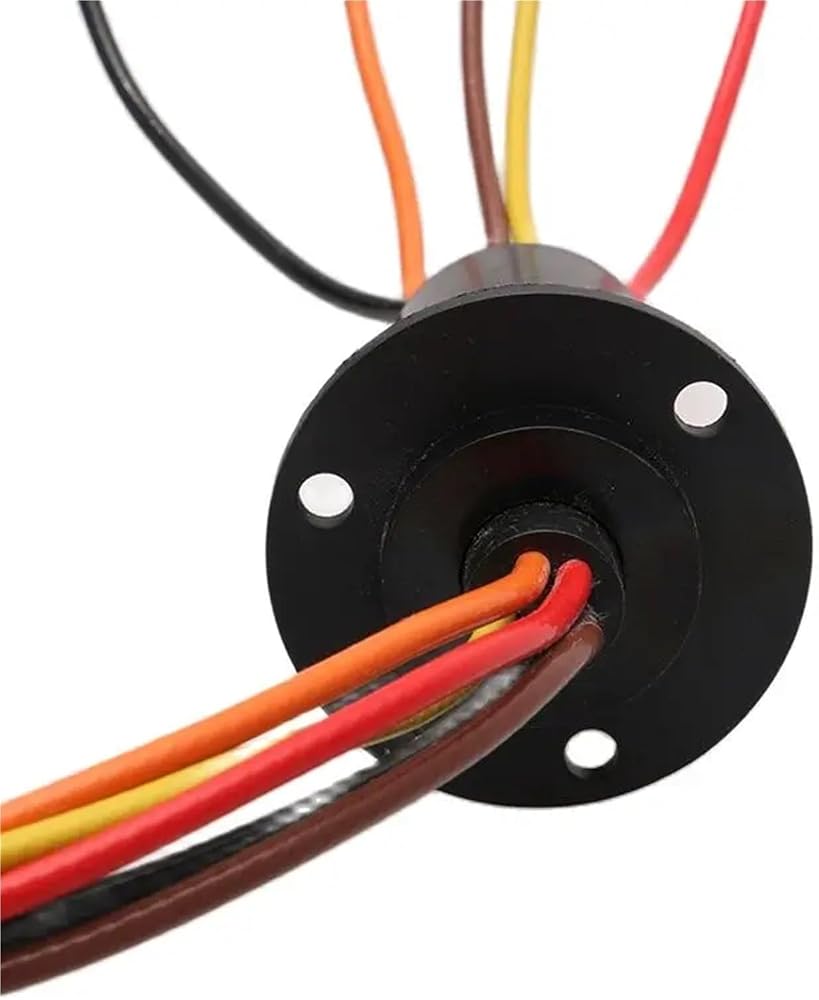

1PCS Dia 31mm 4/5/6CH 30A Large Current Wind Power Slipring Image Signal Transmission Rotary Joint Electric Conductive Slip Ring

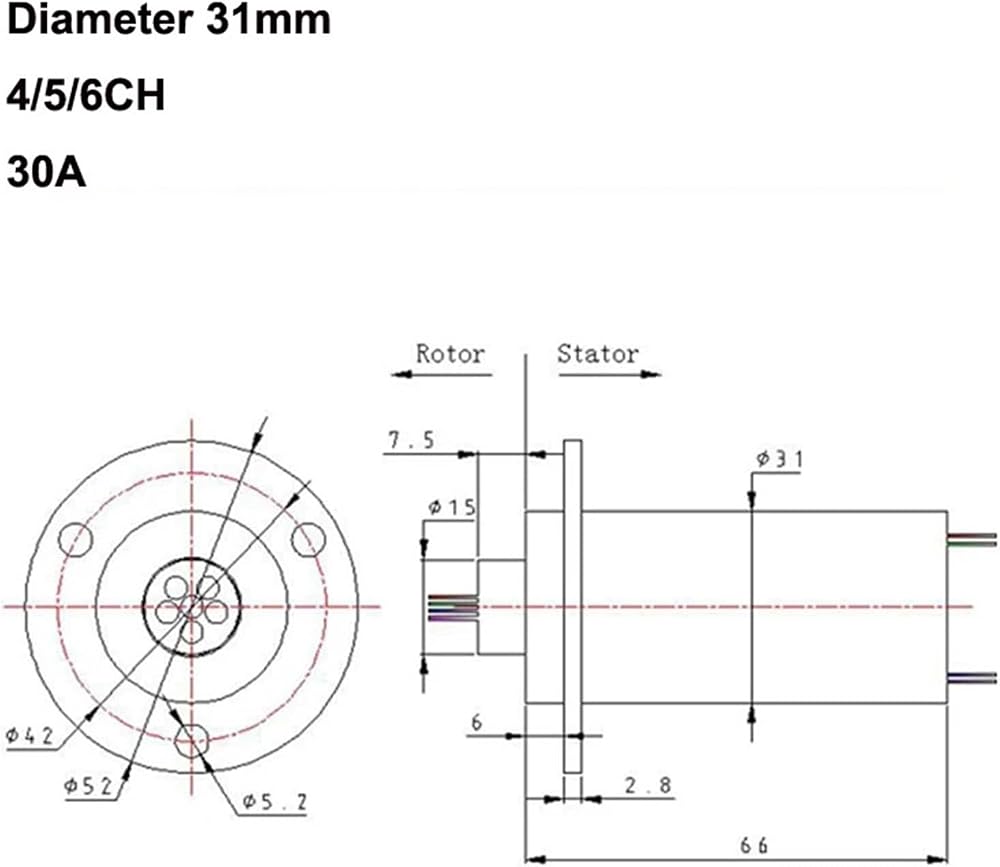

Specification:
- Outer diameter: 31mm
- Channels: 4/5/6CH
- Rated current: 30A
- Rotating Speed: 200rpm(at most)
- Rated Voltage: 240VAC/DC
- Working Temperature:-40C~+80C
- Contact Material: Gold/Gold
- Cable Length: 250mm
- Compressive Strength:>=500V@50Hz between two channels
- Shell Materials: Engineering plastics
- Working Life: >=5 millions revolutions(depends on work speed,environment)
Description:
Slip ring is an electromechanical component that can transmit energy and data signals from a fixed device to a rotating device. It is also called a conductive ring, brush, slip ring, rotating electrical joint or electrical rotary switch. It is a precise familiarity device that realizes the image, data signal and power transmission of two relative rotating mechanisms. It is used in electromechanical systems that require unrestricted continuous rotation of current and data signals. It can improve mechanical performance, simplify system design, and avoid possible damage caused by wire rotation.
Application:
- Wind power generation
- Consumer Electronics
- PTZ Packaging Machine
- Revolving Door
- Amusement equipment
- LED advertising light
- High-speedball
- Winding machine
- Robotic arm
- Robots Electrical test equipment
Package included:
1pcs x slip ring
==========
Hign-concerned Chemical : None
Is Electric : No Battery
Wheelbase : Screws
Size : Outer diameter: 31mm
Technical parameters : KV1100
Model Number : slipring
For Vehicle Type : Airplanes
Tool Supplies : Assembled class
Four-wheel Drive Attributes : Assemblage
Remote Control Peripherals/Devices : Conductive Slip Ring
Upgrade Parts/Accessories : Transmission Rotary Joint
RC Parts & Accs : Wind Power Sl
