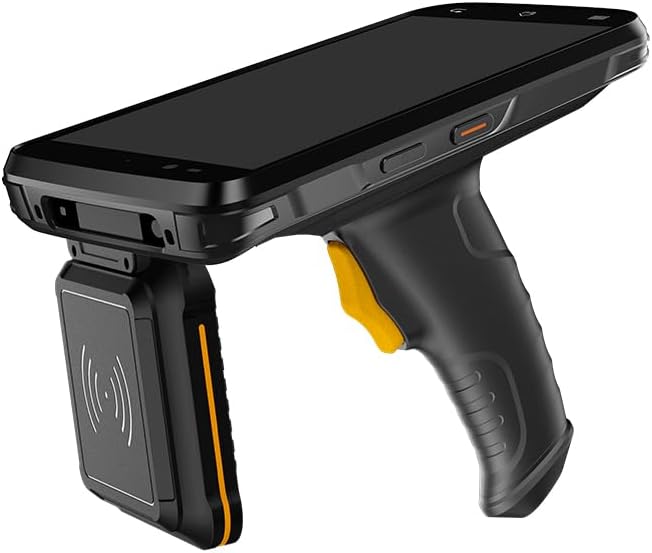

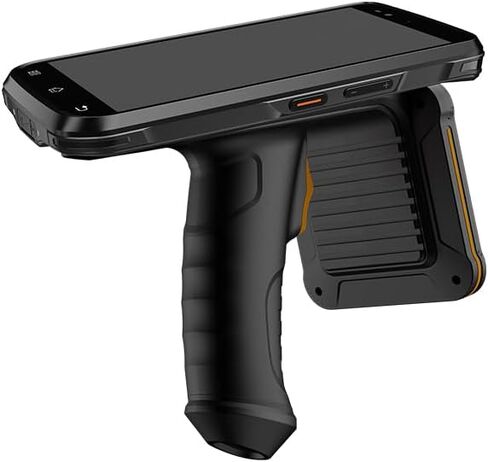

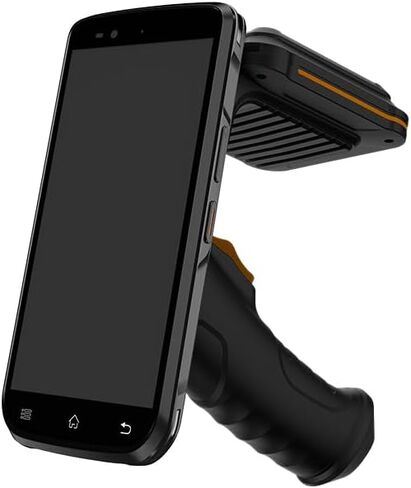

LF LOIAAFEL Rugged Android Enterprise Mobile Computer UHF RFID Handheld Data Terminal
Physical Characteristics
Display: 6'' IPS FHD 720 * 1440 resolution
Touch Panel: Corning Gorilla with multi-touch support.
Power: Removable polymer lithium-ion battery, capacity: 4850mAh; 4.35 V
Expansion Slot: 1 slot for SIM card, 1 slot for SIM or TF card

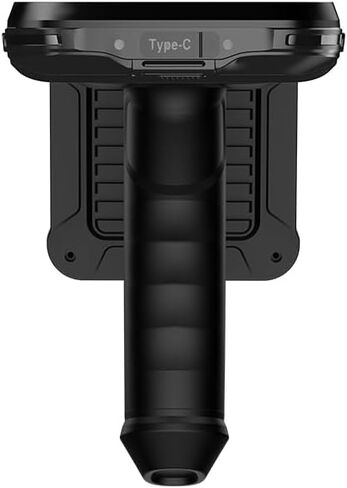

Interfaces: Type-C USB * 1 with OTG support
Audio: Microphone, speaker, earpiece
Keypad: Power button, volume +/-button, left and right scan button
Performance Characteristics
CPU: Octa-core 2.0 GHz
RAM+ROM: 4GB+64GB
Expansion: Supports Micro SD (TF) up to 128 G expansion
Operation system: Android 12.0
Wireless connectivity
WLAN: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
Bluetooth: Bluetooth 5.1 is supported
GNSS: Beidou, Glonass, GPS, Galileo
Data Collection: QR code scanning engine
1D barcode Symbologies.
2D barcode Symbologies.
Camera: Front camera: 5MP, Rear camera: 13MP Autofocus with flash
UHF RFID
China frequency: 920-925Mhz
US frequency: 902-928Mhz
European frequency: 865-868Mhz
Protocol standard: EPC C1 GEN2/ISO18000-6C
Antenna parameters: ceramic antenna (3dbi)
Card reading distance: effective distance 2-25m according to different labels
Standard accessories
Adapter, data cable, Protective film, handle Physical parameter:
Dimensions: 173 (L) * 79 (W) * 17 (T) mm
Weight: The whole machine is less than 641g (including battery)
