Description:
Electrical Specification:
Operat voltage: 4.8V - 6.0V
Runnig current: 90mA
No load speed: 0.10sec/60° (4.8V), 0.08sec/60° (6V)
Peak stall torque: 1.3kg.cm (4.8V), 1.8kg.cm (6V)
Stall current: 560mA±10% (4.8V), 750mA±10% (6V)
Control Specification:
Command signal: Pulse width modification
Amplifier type: Analog controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 180°±3° (when 500～2500usec)
Dead band width: 8 usec
Rotating direction: Counterclockwise (when 1000～2000usec)
Temperature Range: -25°C～70°C
Humidity Range: 65%±10%
Mechanical Specification:
Gear type: 5 Plastic
Limit angle: 200°±5°
Bearing: NO
Horn gear spline: 20T, Dia:4.9mm
Horn type: Plastic, POM
Case: Engineering plastics(PBT)
Connector wire: 250mm±5mm
Motor: Carbon brush motor
Splash water resistance: No
Size: 22.4*12.5*22.8mm (0.88*0.49*0.89 in)
Weight: 10g±5%

Package includes:

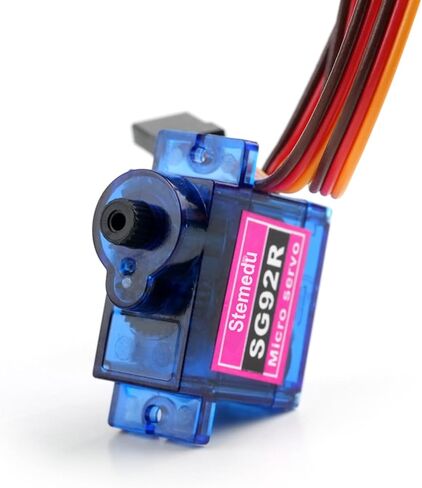

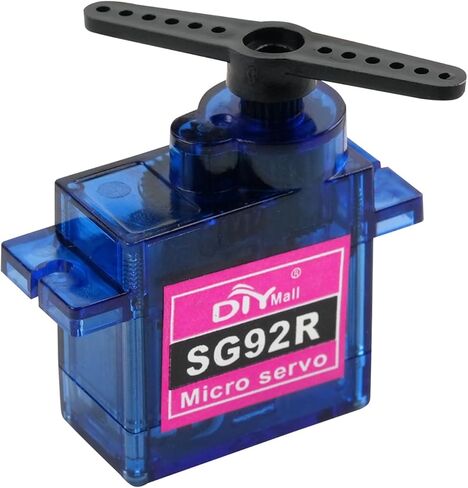

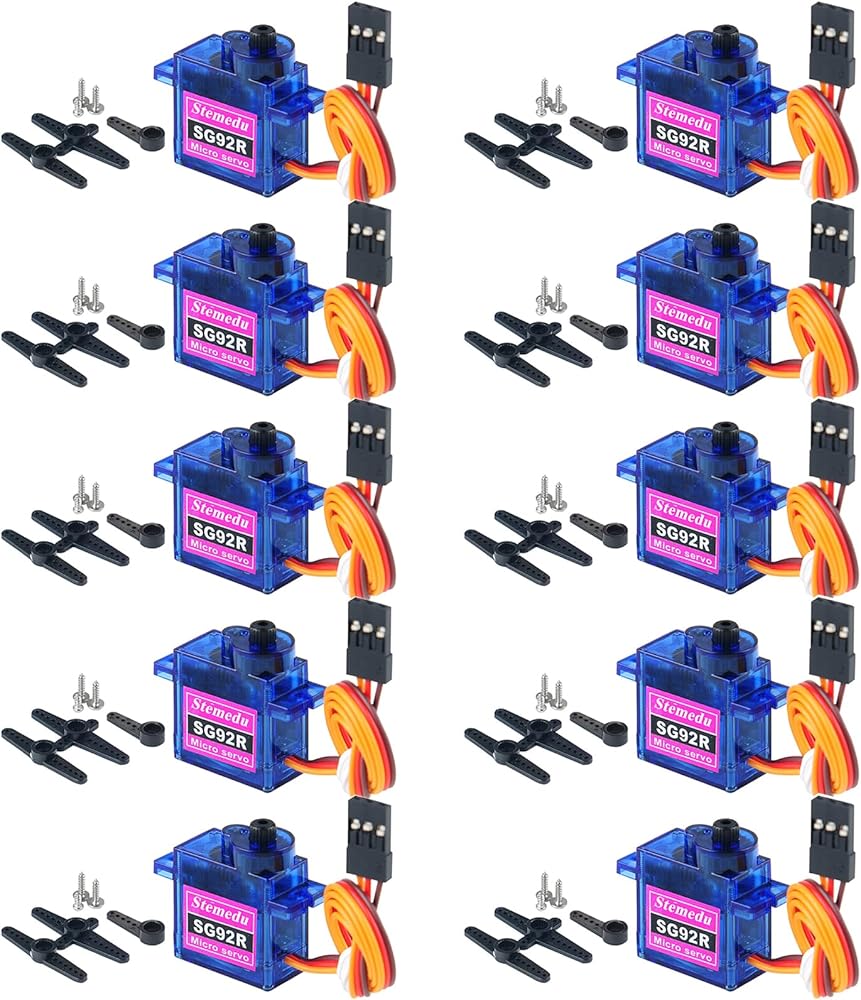

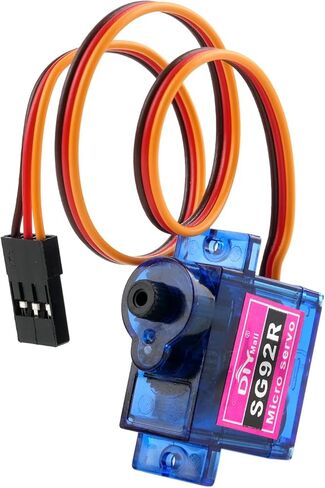

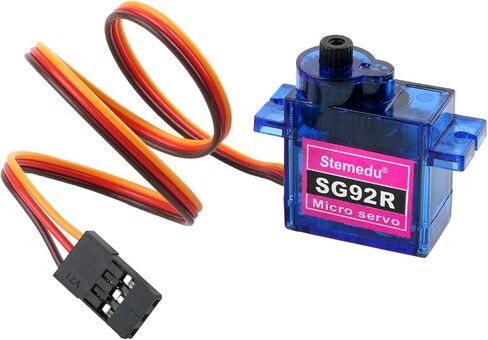

10 x SG92R 9g Micro Servo

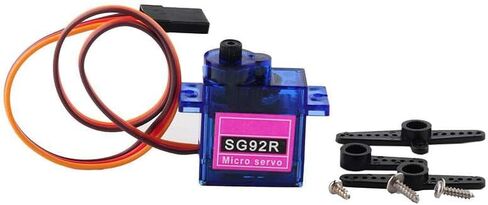

10 x Servo Accessories
