Compatible With CL25 Frame
Configuration:
Motor to Motor: 109mm
Internal diameter of Guard: 2.5 inches
Camera size: 19~20mm
Propeller: 2.5 inches
Motor hole size: 9mm (compatible with 1105/1204/1206 motors)
FC hole size: 26.5 x 26.5mm
Plate thickness: 2.5mm
Bottom Plate thickness: 1.5mm
Bottom Plate (camera) thickness: 2mm
Weight: 47.8 grams
Frame kit includes:
1 x plate 2.5mm
1 x Bottom plate 1.5mm
1 x Bottom Plate (Camera) 1.5mm
4 x (M2 x 3.5 x 25mm) Aluminum posts
2 x (M2 x 3.5 x 8mm) Aluminum posts
28 x (M2 x 6mm) Round head screws
2 x (M2 x 8mm) Round head screws
4 x (M2 x 12mm) Countersunk head screws
16 x (M2 x 2mm) Nylon Nuts
4 x (M2 x 18mm) Countersunk head screws
5 x Damping Rings
1 x (19 x 19mm) Camera mount
1 x (14 x 14mm) Camera mount
1 x 3D printed part Compatible With XM 1 x 3D printed part Compatible With TBS 1 x Naked Camera Mount
2 x pads
2 x EVA Landing pads

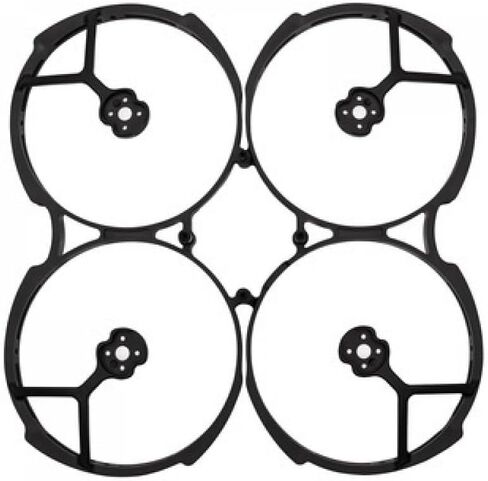

4 x 2.5 inch Guards
1 x EVA Damping Ring of Guard
2 x Ant Tubes
2 x straps (M15 x 150mm)
Compatible With CL30 Frame
Specification:
Motor to Motor: 126mm
Plate: 2.0mm
Bottom Plate: 2.0mm
Arm Plate: 3.0mm
FC hole position: 26.5mm x 26.5mm
VTX hole position: 20mm x 20mm
Motor hole position: 9mm x 9mm
Camera installation space: 14~19mm

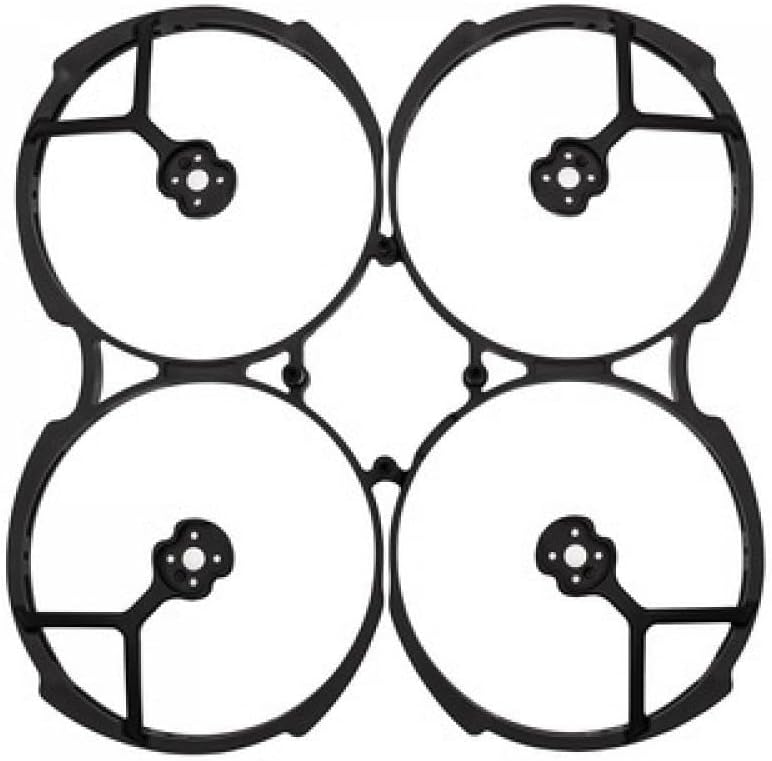

Propeller guard internal diameter: 79mm
Suitable propeller size: 3 inches
Dimension: 180mm x 180mm x 38mm (including propeller guard)
Weight: 62.6g
Includes:
Carbon Plate:
1 x Plate 2.0mm
1 x Arm Plate 3.0mm
1 x Bottom Plate 2.0mm
Screws:
2 x Knurled nut M2
4 x Aluminum Column M2 x 3.5 x 25
2 x M2 x 4mm cup head screws
28 x M2 x 6.5mm Round head screws
10 x M2 x 8mm Round head screws
7 x M2 x 9mm Round head screws
4 x M2 x 10mm Round head screws
1 x M2 x 12mm cup head scr
