2204 2500KV Brushless Outrunner Motor with 40A ESC & Mount Upgrade Kit for Axial SCX24 1/24 RC Crawlers

KWD 18.500
KWD 23

Brand
DashRC
Weight
78 g
1 +

Special Features

  • Precision Power Control – Smooth, linear throttle at low speeds with rapid response at higher RPMs for crawling and trail adventures.

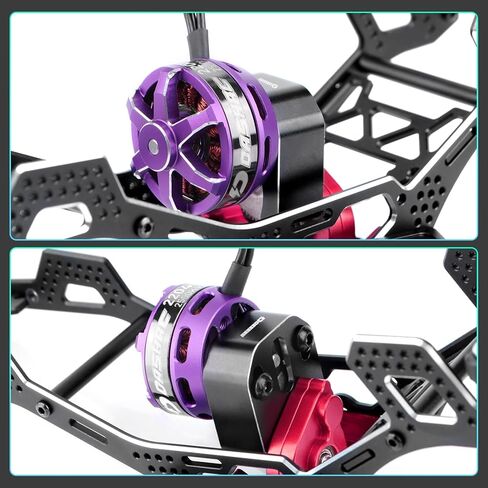

  • Perfect Fit for SCX24 – Designed for direct compatibility with Axial SCX24 models, including stock gearboxes and DashRC LCG chassis.
  • High Torque Performance – 2500KV rating with 250W max power and 7–15V input for optimized torque and speed balance.
  • Advanced AM32 Firmware Support – ESC features customizable tuning parameters for pro-level driving and braking performance.

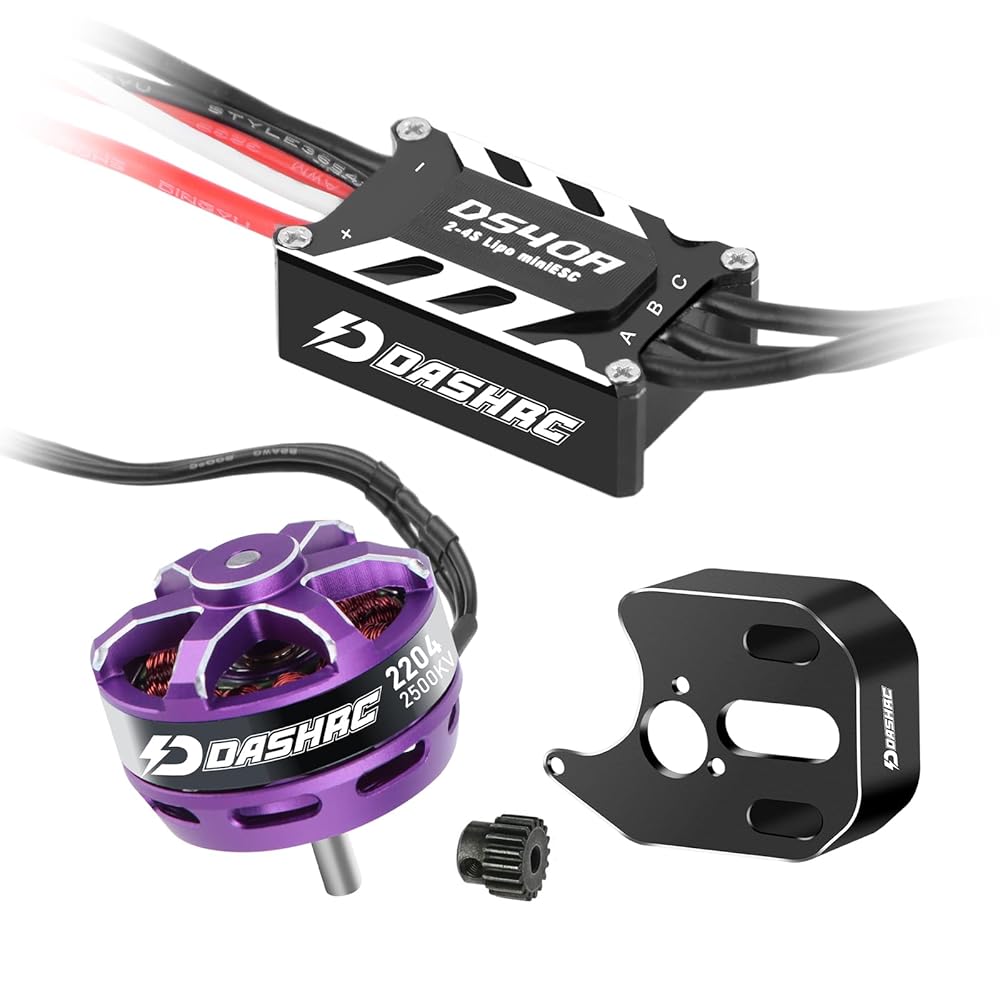

  • Complete Upgrade Kit – Includes 2204 Brushless Motor (2500KV), DS40A 40A ESC, 0.3mod 26T Motor Pinion, and Motor Mount.

Description

Boost the capability of your 1/24-scale rock crawler with the DashRC 2204 2500KV Brushless Outrunner Motor and DS40A 40A ESC combo. Tailored specifically for Axial SCX24 models, this upgrade delivers smoother control, more torque, and enhanced durability for technical crawling and trail driving.
The sensorless brushless motor offers consistent low-speed performance and bursts of high-speed output, while the included waterproof DS40A ESC supports AM32 firmware for fine-tuning your setup. Built with a rugged metal casing for efficient heat dissipation and long-term reliability, this system is ready to tackle demanding terrain with confidence.

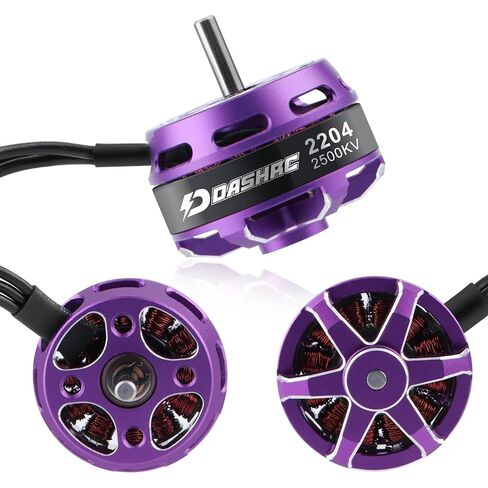

Type: Sensorless Brushless Outrunner
KV Rating: 2500KV
Motor Poles: 14
Max Power: 250W
Input Voltage: 7–15V
No-Load Current: 0.7A
Max Continuous Current: 18A
Peak Current: 50A
Shaft Length: 10mm (0.39 in)

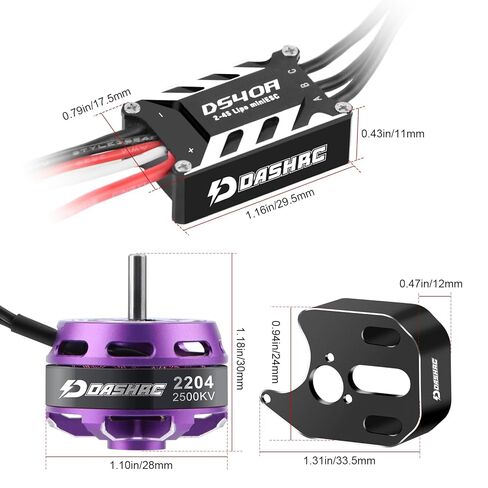

Dimensions: 28mm x 20mm (1.1 x 0.8 in)
Weight: 30g (1.06 oz)
Pinion Gear: 0.3mod 26T (compatible with SCX24 stock gearing)
Connectors: PH2.0 3-Pin

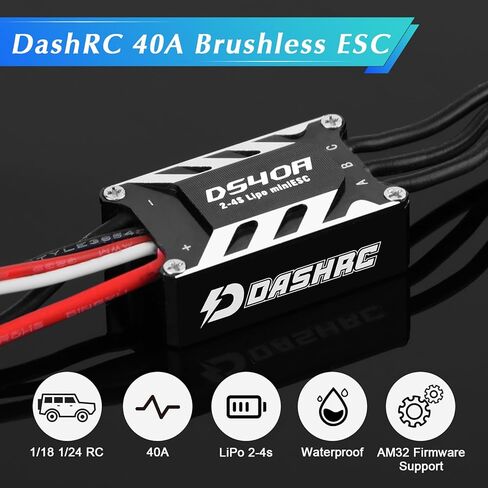

Model: DS40A
Continuous Current: 40A
Peak Current: 50A
Battery Compatibility: 2S–4S LiPo (7.4V–16.8V)
BEC Output: 5V / 2A
Connectors: PH2.0 (Motor/Battery), Dupont 2.54mm & ZH 1.5mm (Receiver)
Waterproof: Yes
Firmware: AM32 Supported
1 x DashRC 2204 2500KV Brushless Outrunner Motor
1 x DashRC DS40A 40A Brushless Micro ESC
1 x 0.3mod 26T Motor Pinion Gear
1 x CNC Motor Mount
