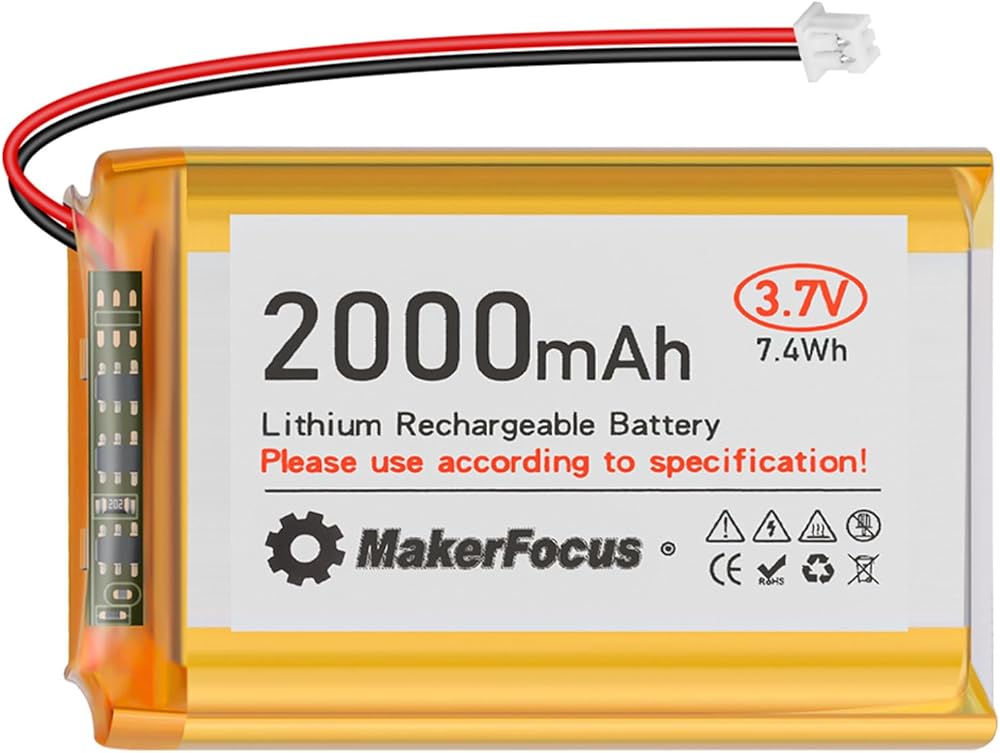

MakerFocus 1pcs 3.7V 2000mAh 7.4Wh Lithium Polymer Rechargeable Battery 1S 1C LiPo Battery with Protection Board Insulated Rubber Tape and Micro JST 1.25 Plug for ESP32 Development Board

KWD 11.500
KWD 12
Brand
MakerFocus
Weight
41 g
Model1
– 1 +

Special Features

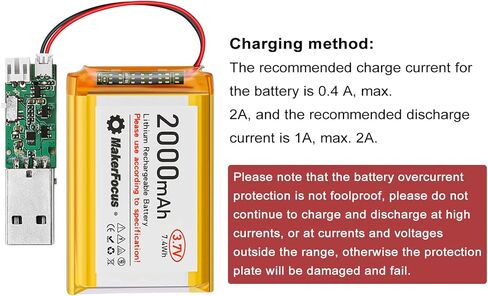

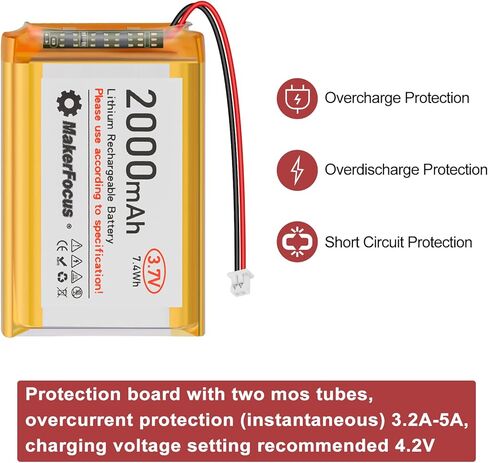

  • Charging Method: Recommended charging current of the battery is 0.4A, the maximum does not exceed 2A. The recommended discharge current is 1A, and the maximum does not exceed 2A. This battery protection board is equipped with two mos tubes, overcurrent protection (instantaneous) 3.2A-5A, charging voltage setting recommended 4.2V
  • Overcharge Protection: When charging the battery, when the voltage reaches the highest battery voltage (4.2V), the protection board will automatically power off and shut down, indicating that it will not continue to charge when fully charged, form an overcharge protection
  • Over-discharge Protection: When the battery is about to run out and the voltage is as low as 3.0V, the protection board will also be turned off and can no longer be discharged, forming an over-discharge protection effect
  • Short Circuit Protection: When an accidental short circuit occurs, the protection board will automatically shut down within a few milliseconds and will not be powered on again. Note that the cell is short-circuited (not through the protection board). The protection board will also fail due to continuous high current, or the components are heated and damaged
  • Note: The battery overcurrent protection is not a panacea, please do not continue to charge and discharge high current, or the current and voltage beyond the range, otherwise the protection board will be damaged and invalid

Description

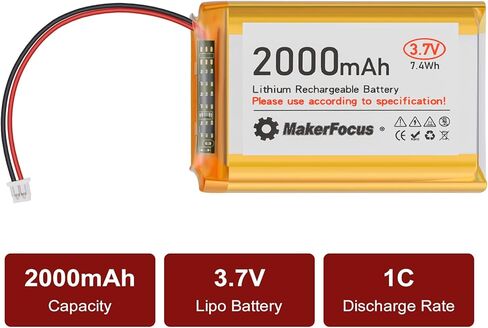

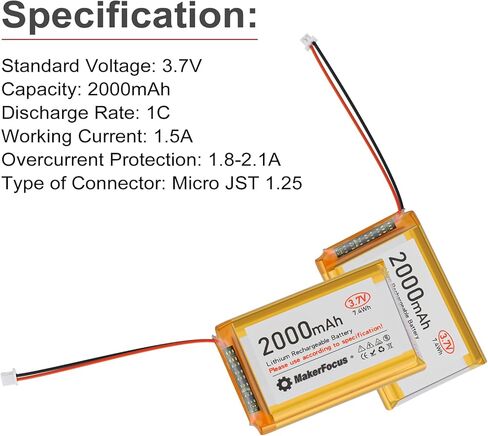

Specification:
Standard Voltage: 3.7V
Capacity: 2000mAh
Approx Weight: 35g

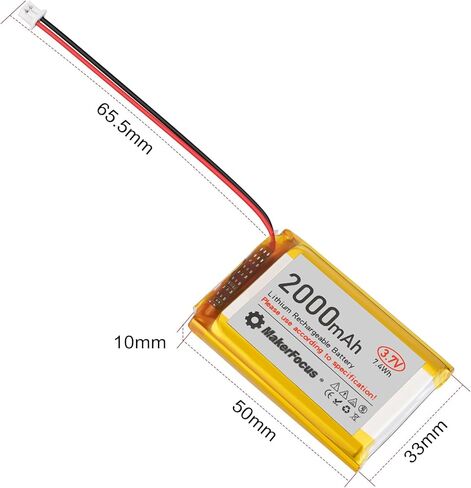

Dimensions(±2mm): 50 * 33 * 10 mm /1.96 * 1.33 * 0.39inch(L*W*H)
Discharge Rate: 1C
Working Current: 1.5A
Maximum Discharging Current: 3C
Overcurrent Protection: 1.8-2.1A
Type of Connector: Micro JST 1.25

Standard Charging Method:
Charging this battery to 4.25V at 0.2C constant current, then charge the battery at a constant voltage of 4.2V till it's charging current ≦ 0.05C

Note:
1. The maximum operating current of this battery is only about 1.5A, can not be used for unmanned aerial vehicles, model aircraft or power tools and other products that require high current

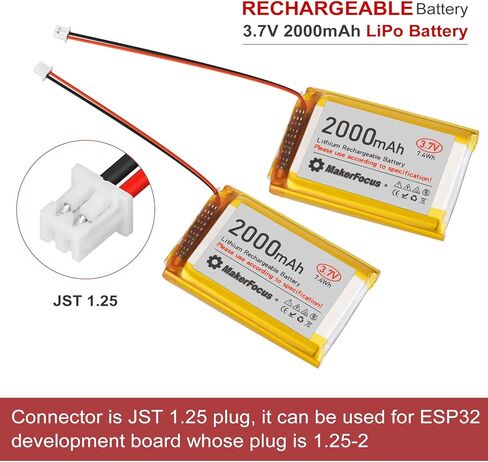

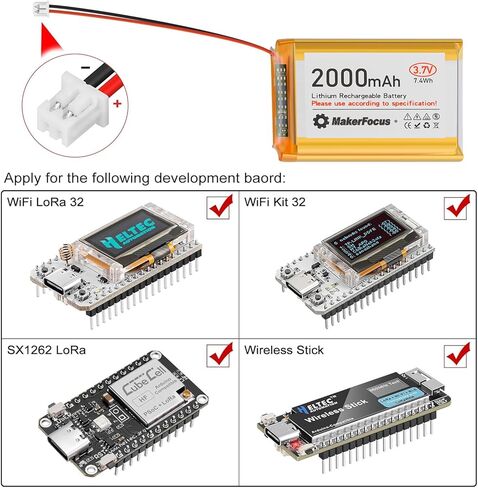

2. Connector is Micro JST 1.25 plug, it can be used for ESP32 development board whose plug is 1.25mm

Package Content:
1 * 3.7V 2000mAh LiPo Rechargeable Battery
