Specifications:

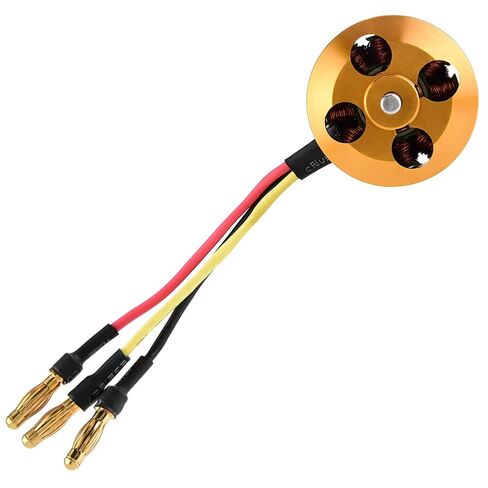

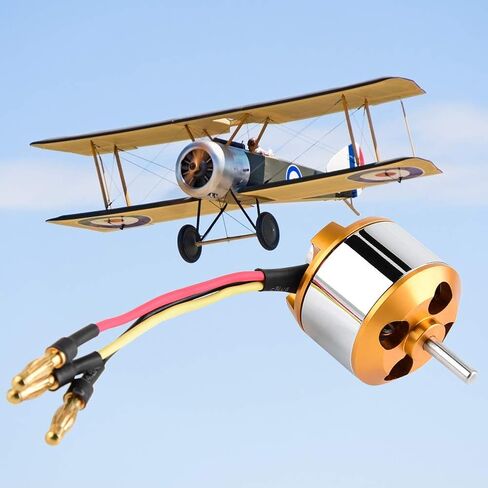

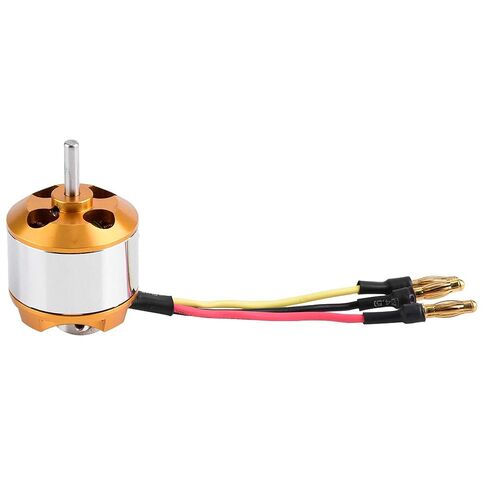

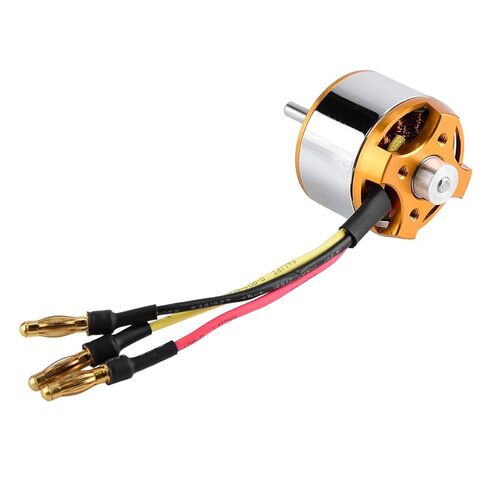

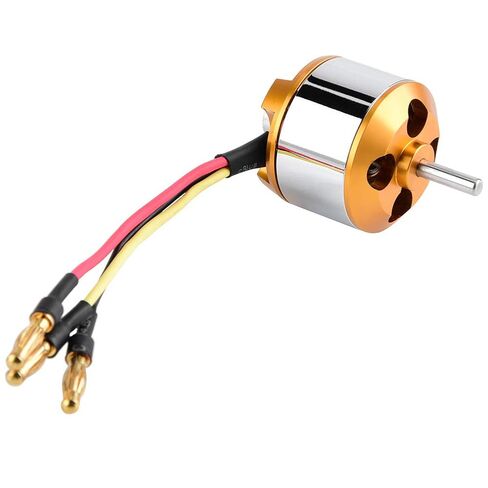

Product name: Brushless Motor 2814 for Fixed-wing RC Plane Model
KV: 1000KV, 1400KV optional
Support: 3S, 4S
thrust: 2020g (4S)
Weight: Approx 115g/4.1oz
Size: Approx 2.8*2.8*1.4cm/1.1*1.1*0.6inch (L * W * H)
Motor Propeller Blade Voltage(V) Current Thrust
2814-1000KV GEMFAN 12*6 12.4V(3S) 26A 1700g
HY 1160 14.8V(4S) 25A 1760g

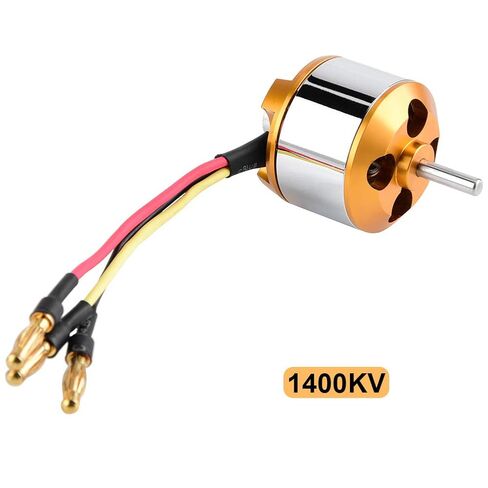

2814-1400KV HY 1060 12.4V(3S) 30A 1430g
14.8V(4S) 38A 1900g
HY 1160 12.4V(3S) 34A 1570g
14.8V(4S) 43A 2020g

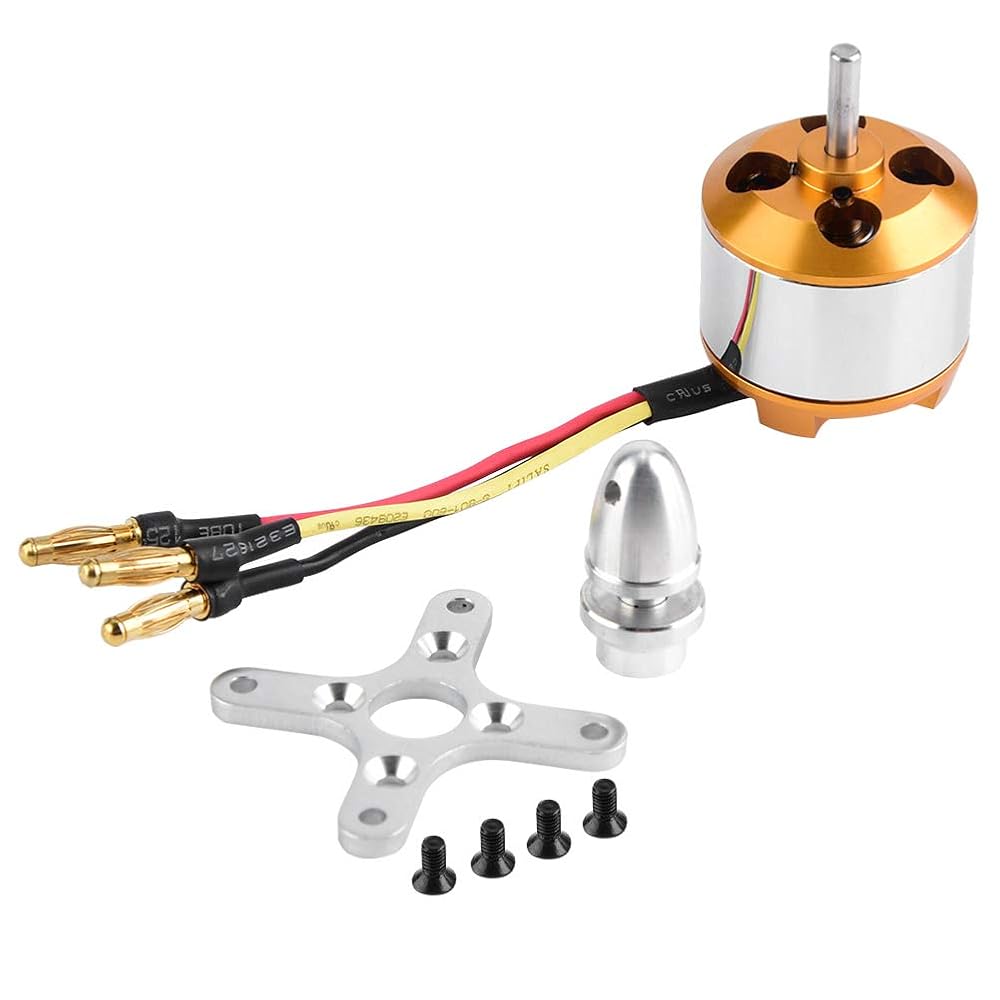

Package list:
1 * Motor
1 * Motor Base
1 * Bag of Accessories
Note:

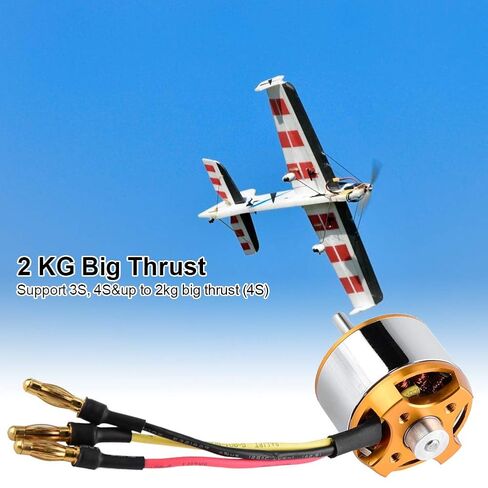

2kg thrust(4S), but a single accelerator should not exceed maximum 10 seconds.
The motor is equipped with cross, only need to lock 2 screws.

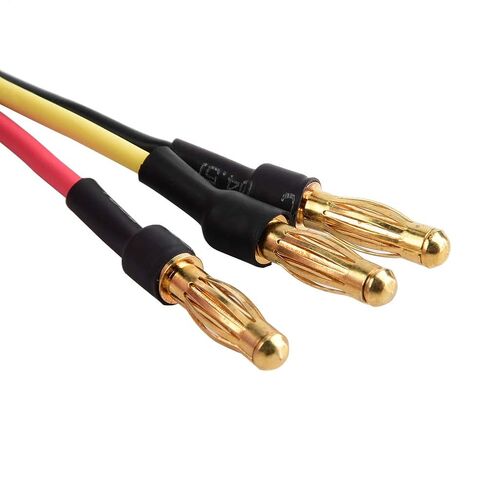

Properly weld motor 4.0mm banana plug, recommend use 50A ESC or higher.
