1. Motor Features and Specs:
Features:
- Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
- Japansese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses, very good heat dissipating, maximizes efficiency.
Specifications:
- KV (RPM/Motor) – 7500
- No-load current @7.4V – 0.3A
- Watt – 80W
- Battery – 2-3S
- Resistance – 0.7 Ohms
- Max Current – 9A
- Slot/Pole – 2P
- Motor size (mm) – 15.5x25
- Weight (g) – 17g
2. ESC Features and Specs:
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for TRX-4M monster truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available
- Real-time telemetry up to 10Hz
Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in wifi module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram

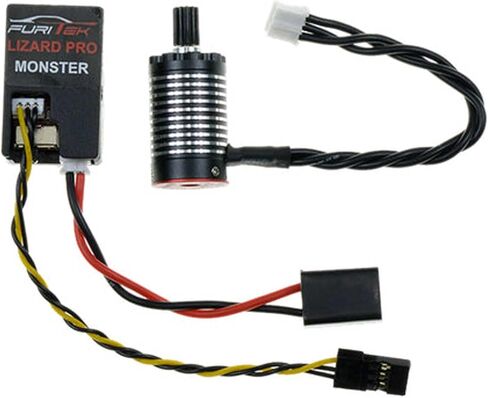

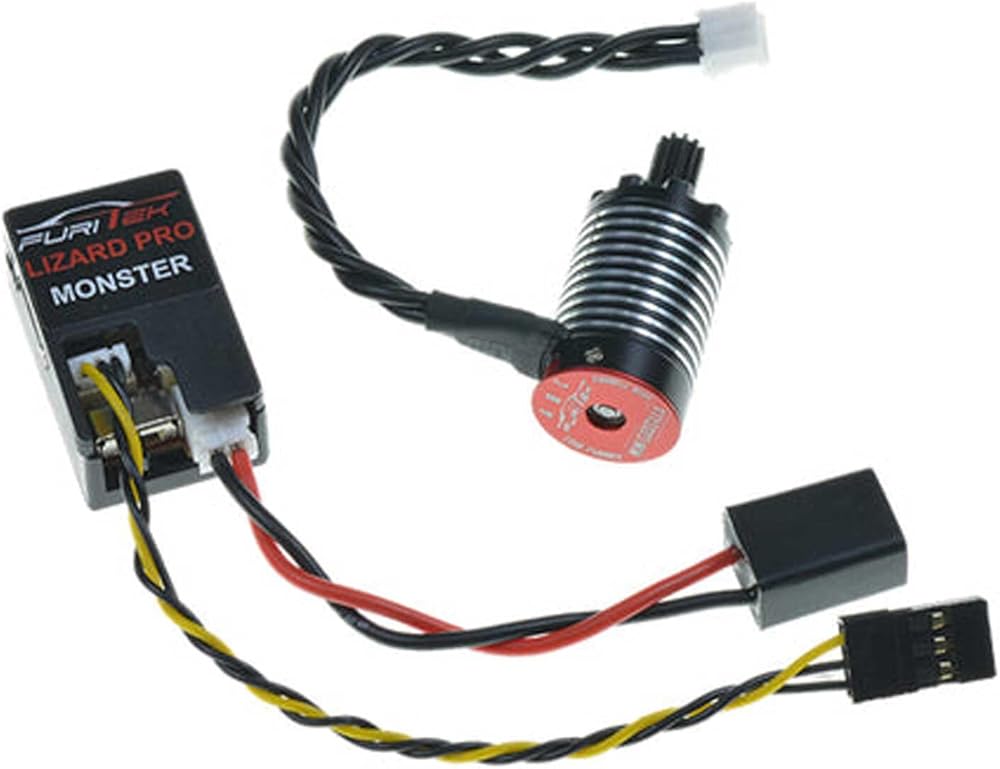

3. ESC, Motor & TX/RX (FUR-2381):
Package includes:
1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR TRX-4MT WITH FOC TECHNOLOGY with enclosing plastic case
1 x built-in Wifi module
1 x MINI GODZILLA 1410 7500KV brushless motor
1 x CNC Steel Pinion
1 x Furitek Transmiter 4CH
1 x Furitek Receiver 4CH
4. ESC & Motor (FUR-2380):
Package includes:
1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR TRX-4M WITH FOC TECHNOLOGY with enclosing plastic case
1 x built-in Wifi module
1 x MINI GODZILLA 1410 7500KV brushless motor
1 x CNC Steel Pinion
Extra requirements:
- A new 3-4 channel radio system is required
