Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 300mm
Specification:

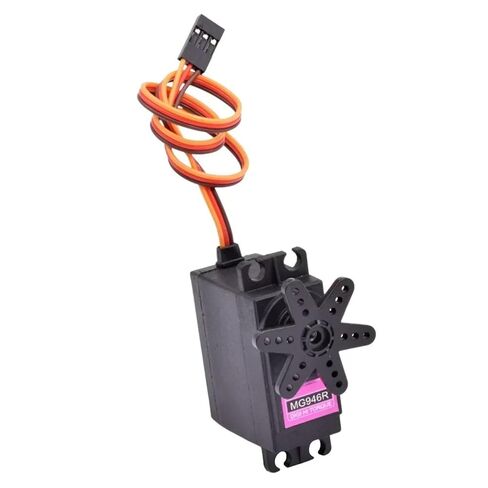

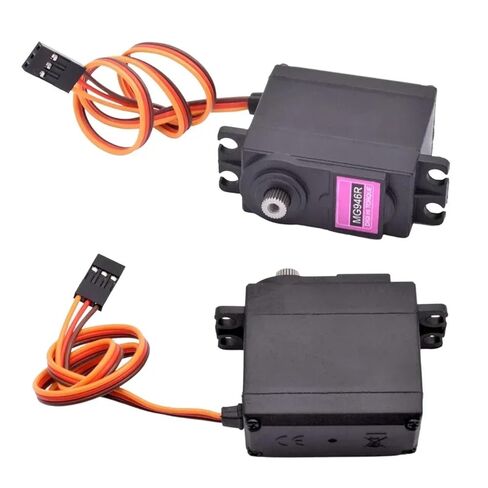

Product Model: MG946R
Color: Black

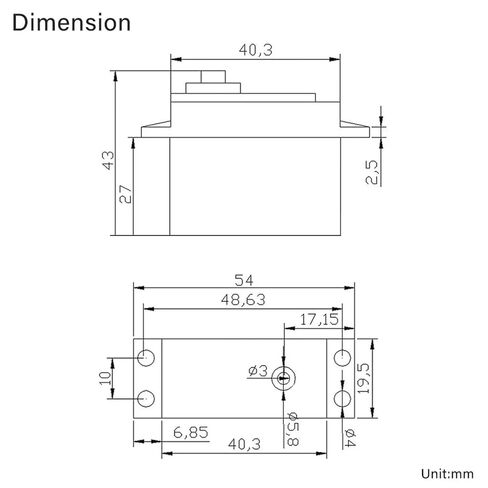

Dimension : 40mm x 19mm x 43mm
Rotation Angle:0-180 degrees
Operating Speed : 0.20sec/60 degrees (4.8V no load)
Operating Speed : 0.17sec/60 degrees (6.0V no load)
Stall Torque : 10.5kg/cm (4.8V)
Stall Torque : 13kg/cm (6V)
Operation Voltage : 4.8 - 7.2Volts
Operating Temperature: 0 - 55

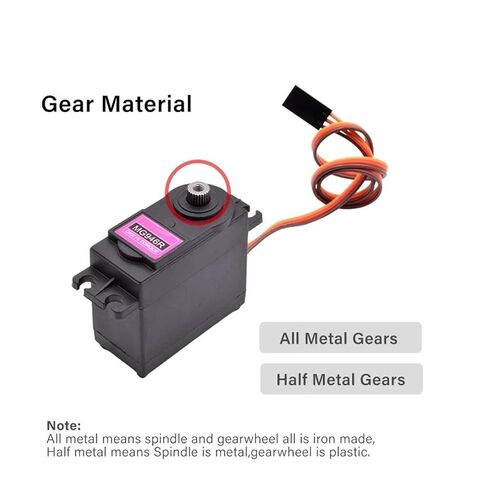

Gear Material: Half Metal/All Metal
Dead Band Width: 5msec
Operating Mode: Analog
Plug Type: JR, FUTABA General

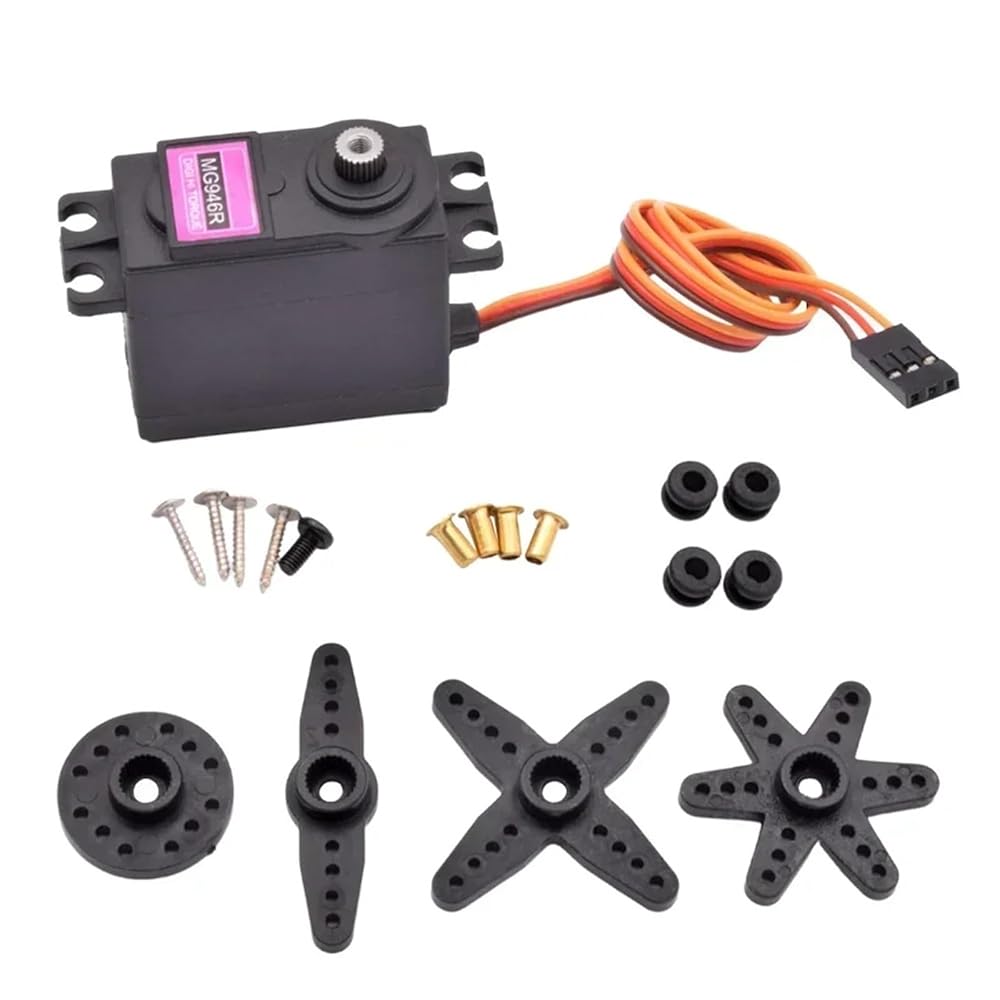

Accessories: Multi-arm, Fixing screws(AS the picture shows)
Connector Wire: 300mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.
The corresponding control relationship of the 180 degrees servo is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees;
2.0ms--------------135 degrees;
2.5ms--------------180 degrees
Please use a professional PWM Servo Controller to control the angle

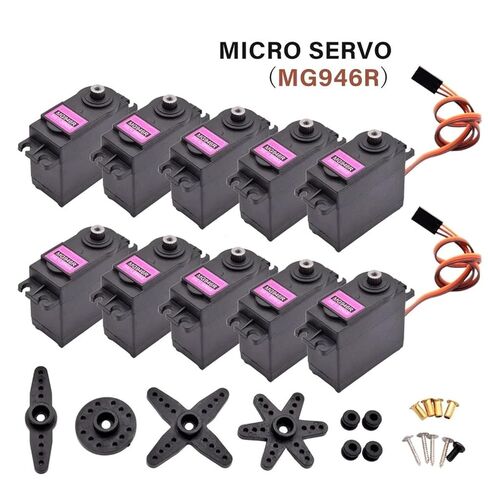

Packing: 2 x MG946R Servo or 4x MG946R Servo for option(Including Accessories)
