Description

Feature:

Frame rails laser cut from 3mm carbon fiber.

Extremely strong and extremely light. 0.92oz / 26 grams (pair).

13 degree angled skid plate, super slippery for sliding over rocks and debris.

Skid hole pattern is for Axial 3 gear transmission or simular.

We have provided you with Multiple front and rear shock mount positions for shock tunning, and holes for a bearing carrier as well.

Multiple rear mounting options for wheelbase tunning.

Excellent breakover and climbing abilities, compact is the overall theme, keep it light, keep it simple.

Material:

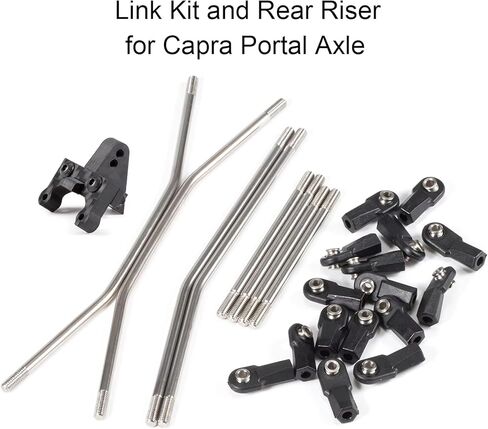

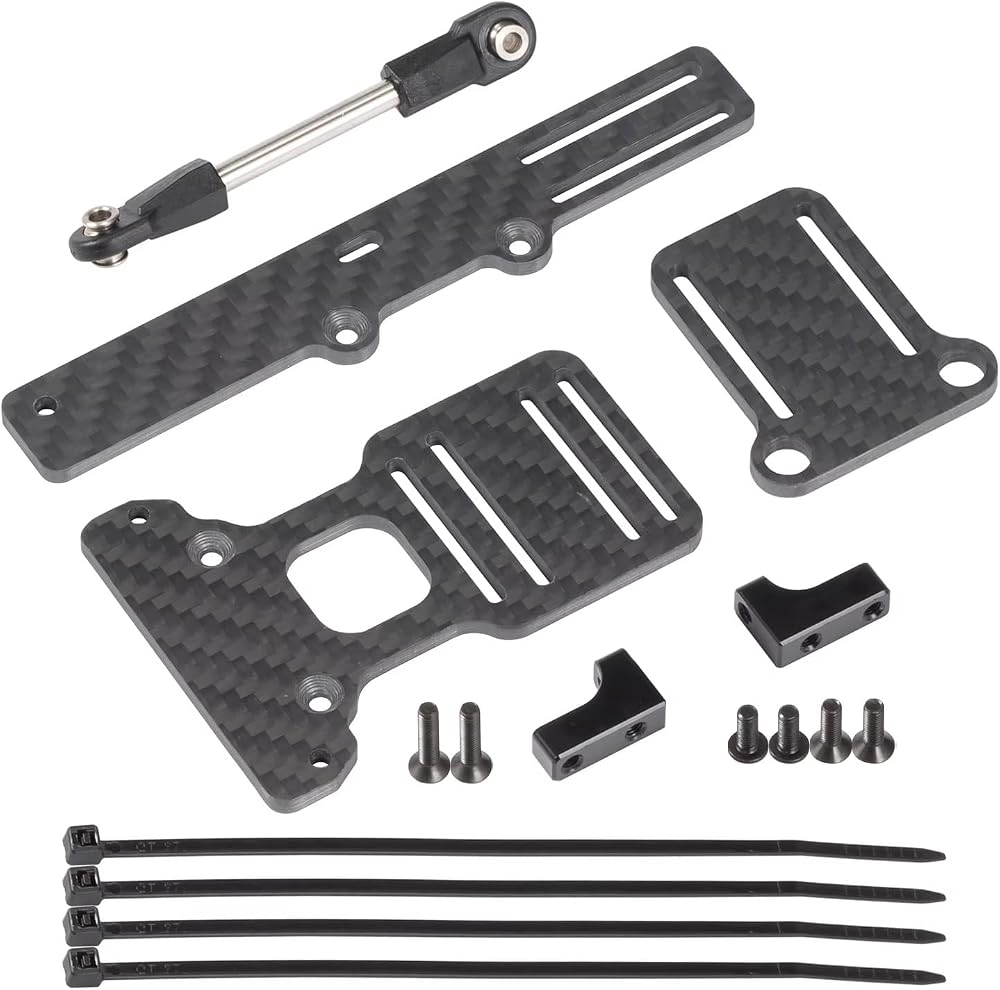

Carbon Fiber: Rails, Rear Link Riser, Add on Kit of Capra Portal Axle

Delrin: Body Mount / Chassis Brace, Skid Plate

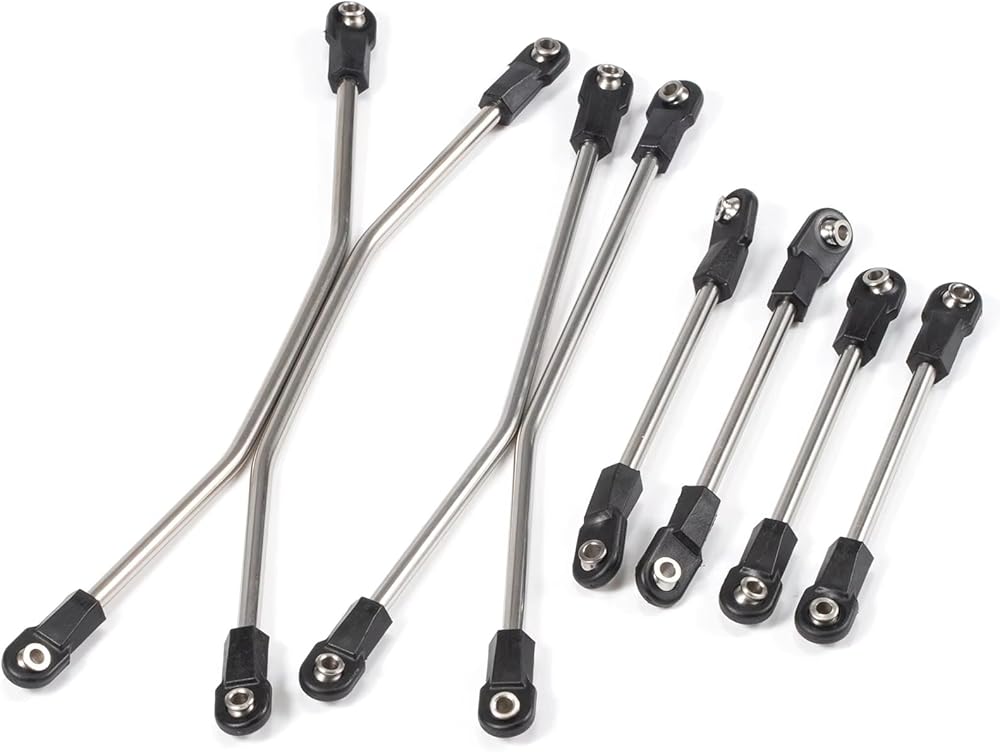

Stainless Steels: Link Kit

Applicable model: Poizd T3V1

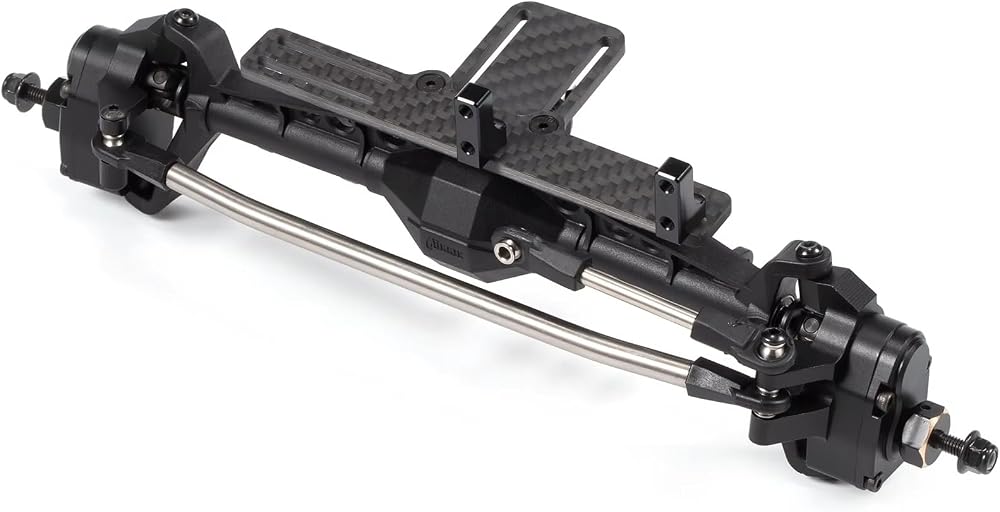

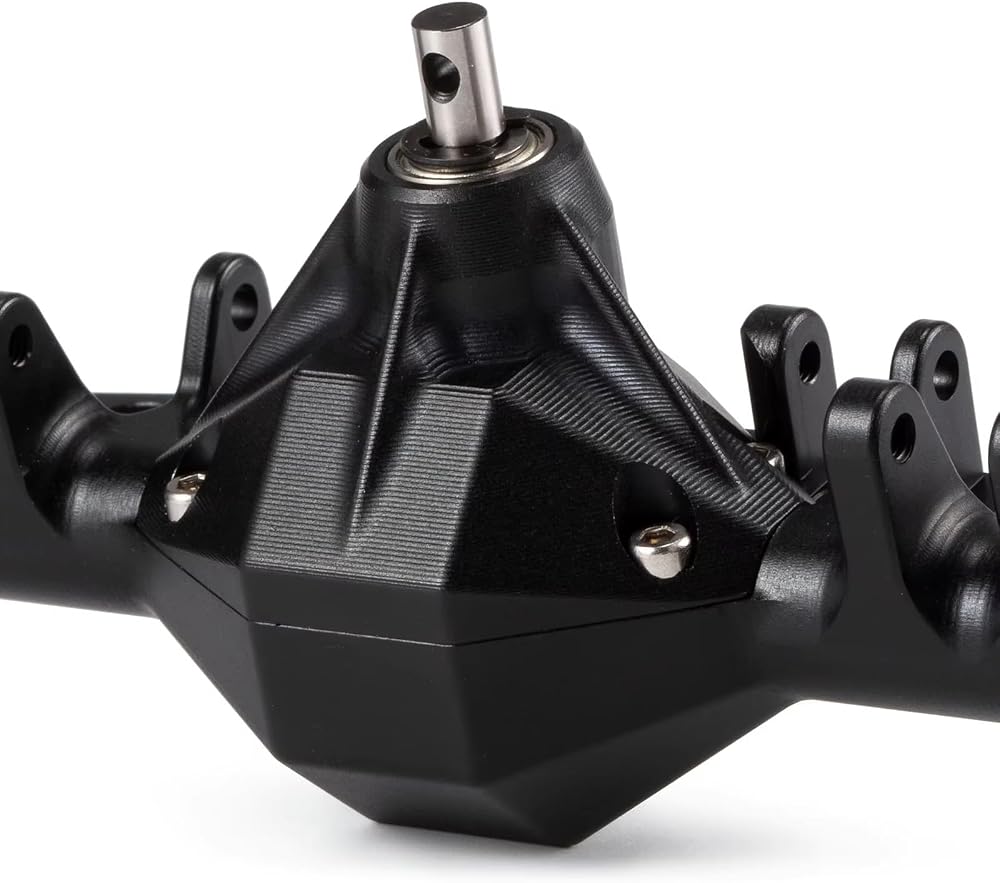

One piece housing construction.

CNC Machined from 7075 Aluminum.

Anodized, Color: Black / Silver.

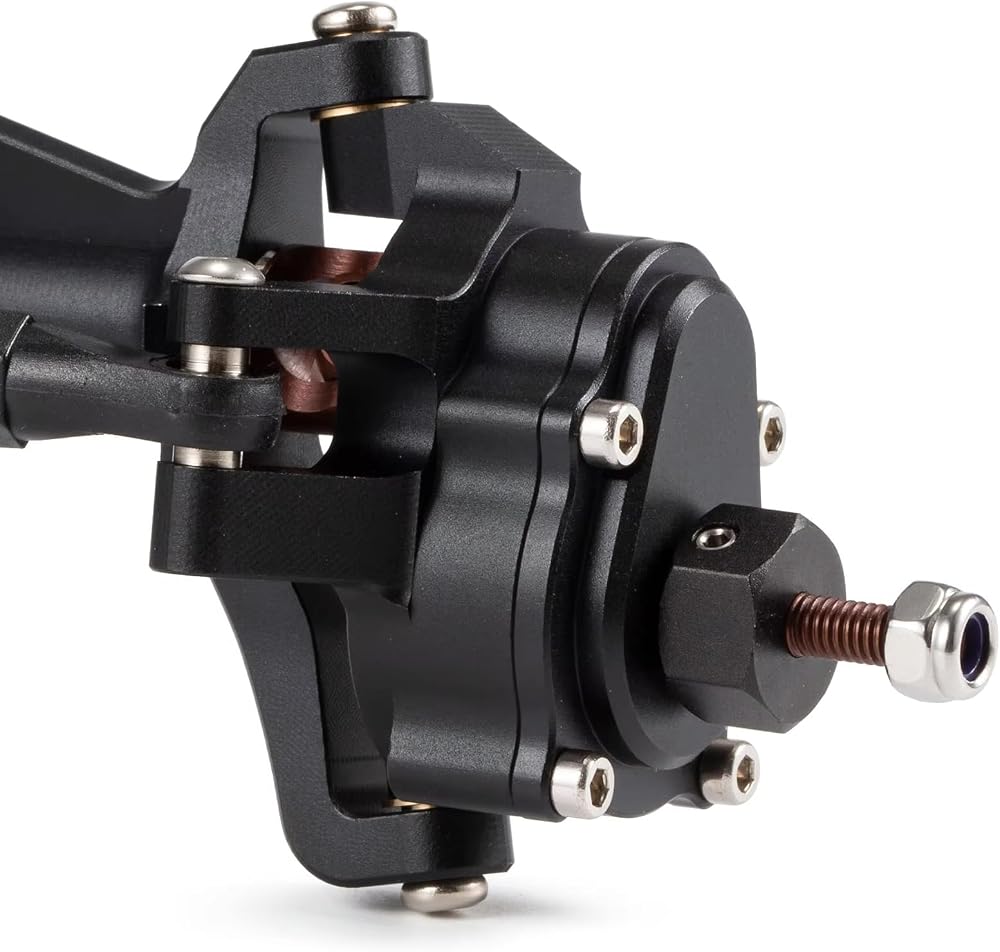

Offset C-hubs is machined into the housing for strength, durability, clearance and scale appearance.

Increased Caster Angle to 20° for improved steering.

50° of side to side steering. (5° over stock Capra/SCX10.3 axles)

High quality heat treated S2 steel front axle VDI shaft , rear axle shafts and portal stub shafts, large increase in strength.

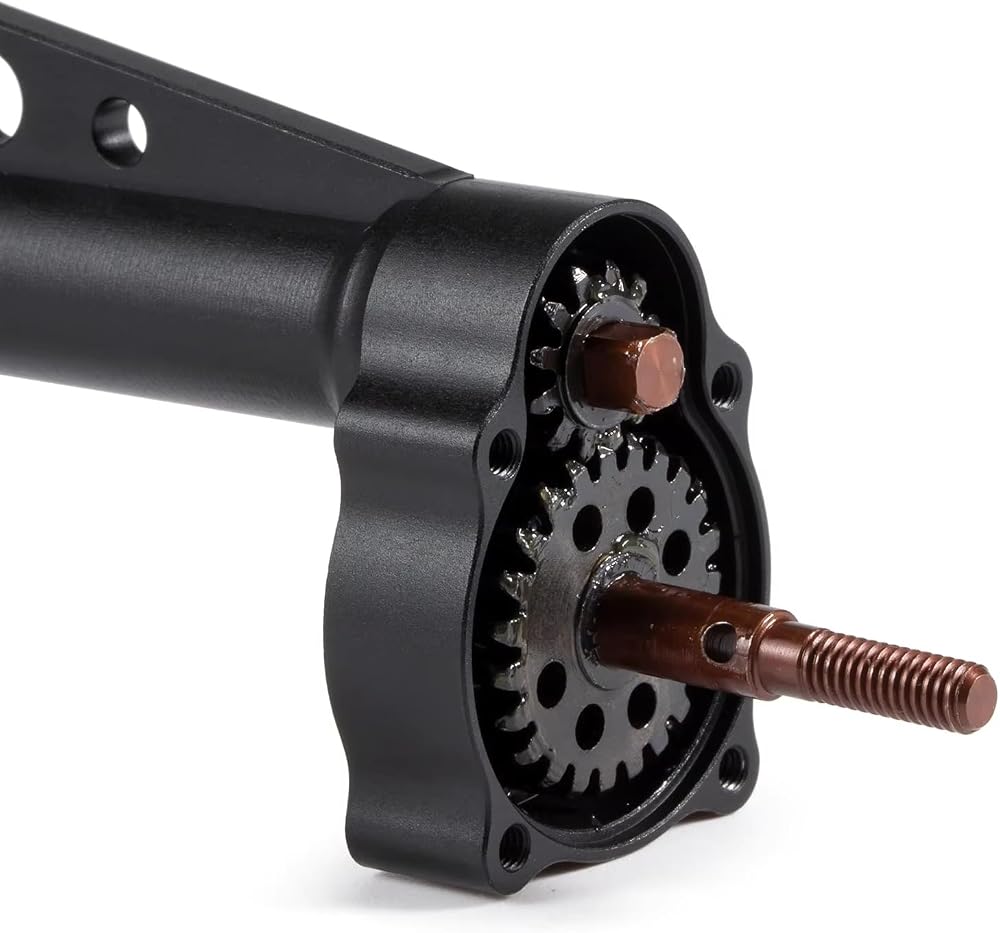

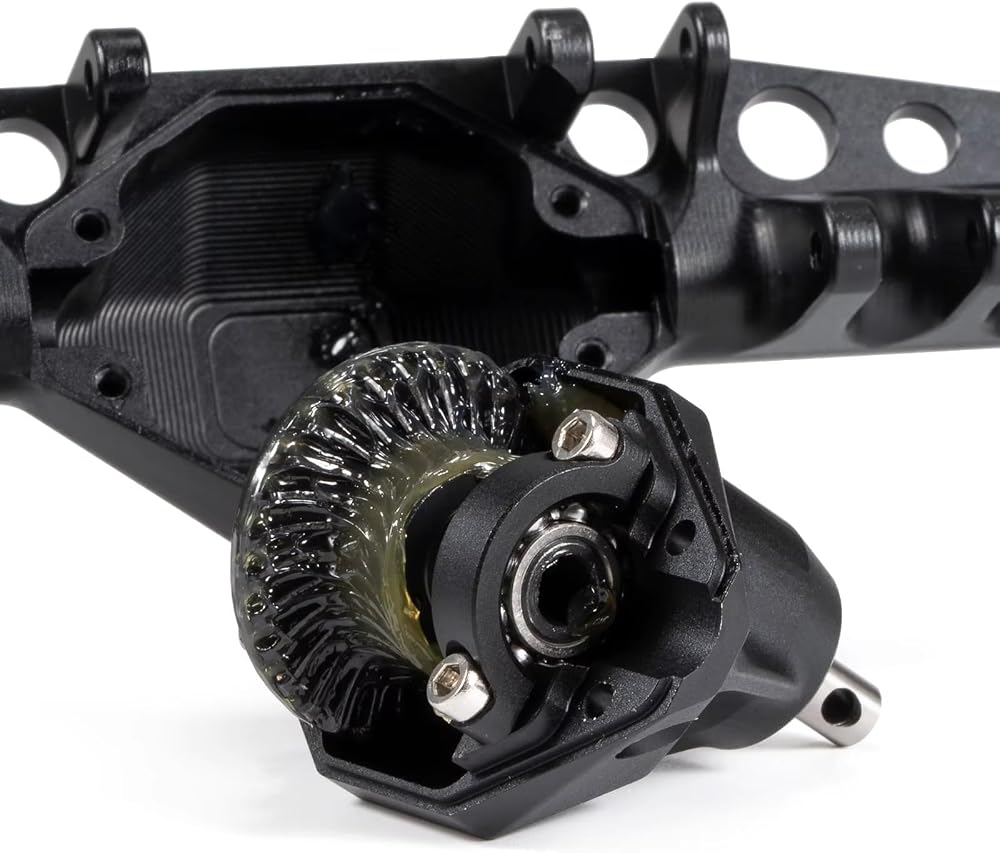

. Machined and hardened ring, pinion and portal gears, Stronger than stock substantially.

8-30T Ring/ Pinion gear set, 12-23T Portal gear set, 7.19:1 Ratio.

195mm Width Pin to Pin, Slightly wider than Axial SCX10.3, and slightly narrower than Axial Capra.

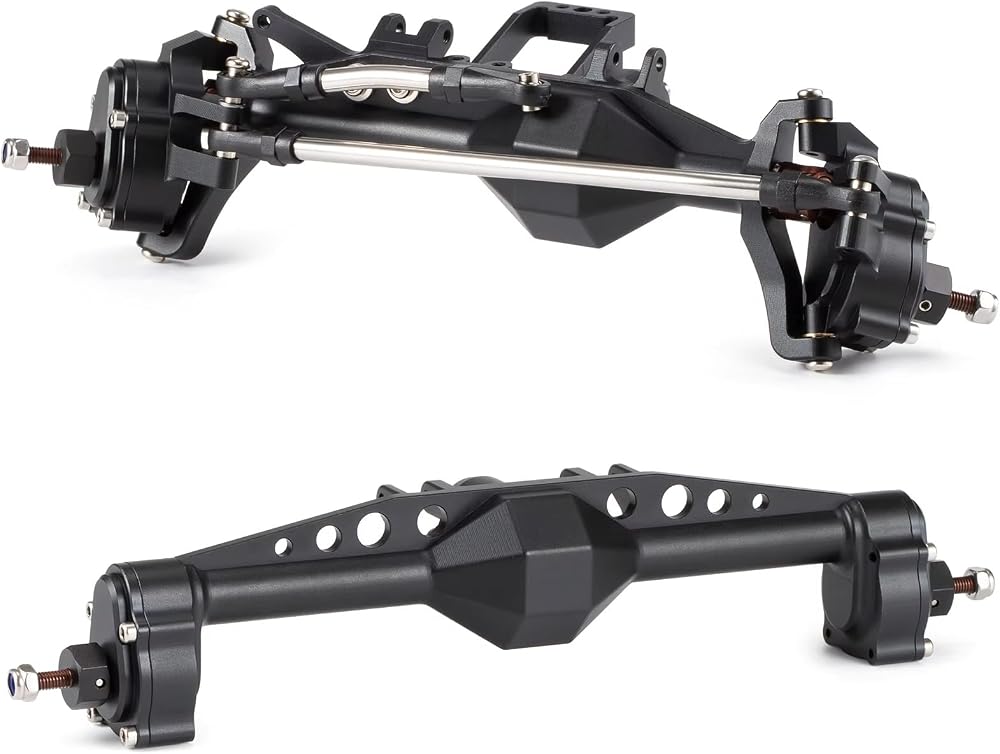

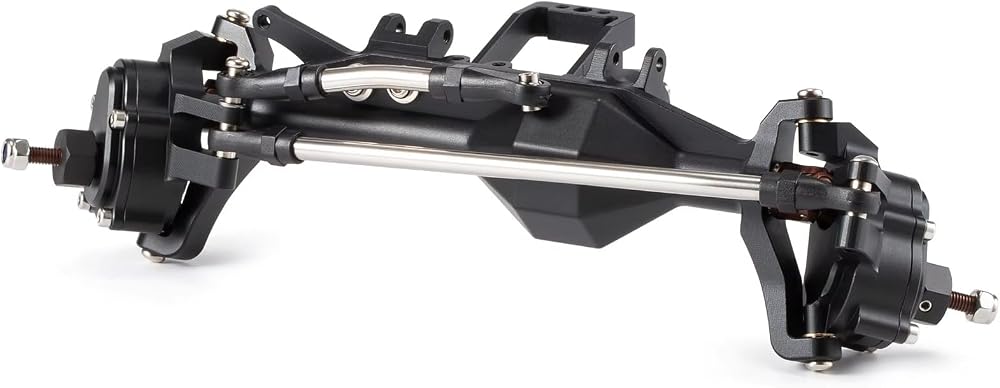

Front axle weight 307g.

Rear axle weight 218g.

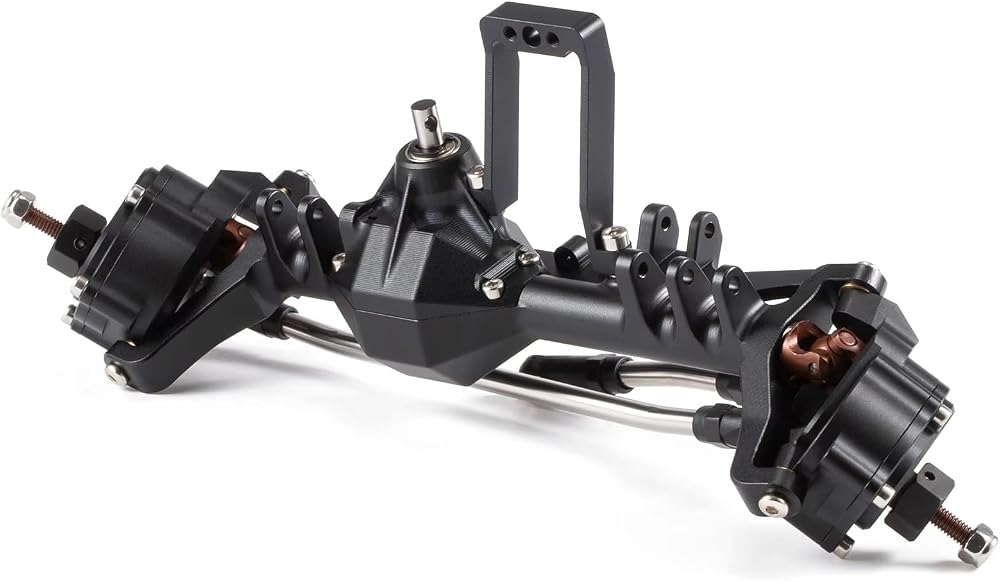

Two servo mounting options are available:

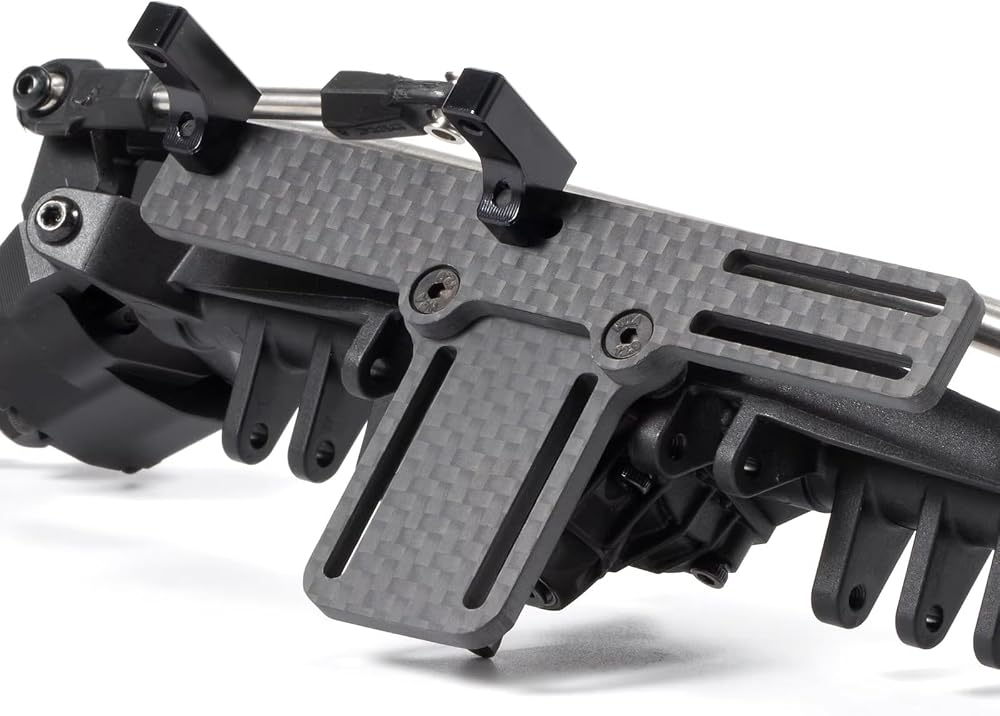

A: Use the removable Panhard/3rd link mount as a CMS option. (Chassis-Mounted Servo)

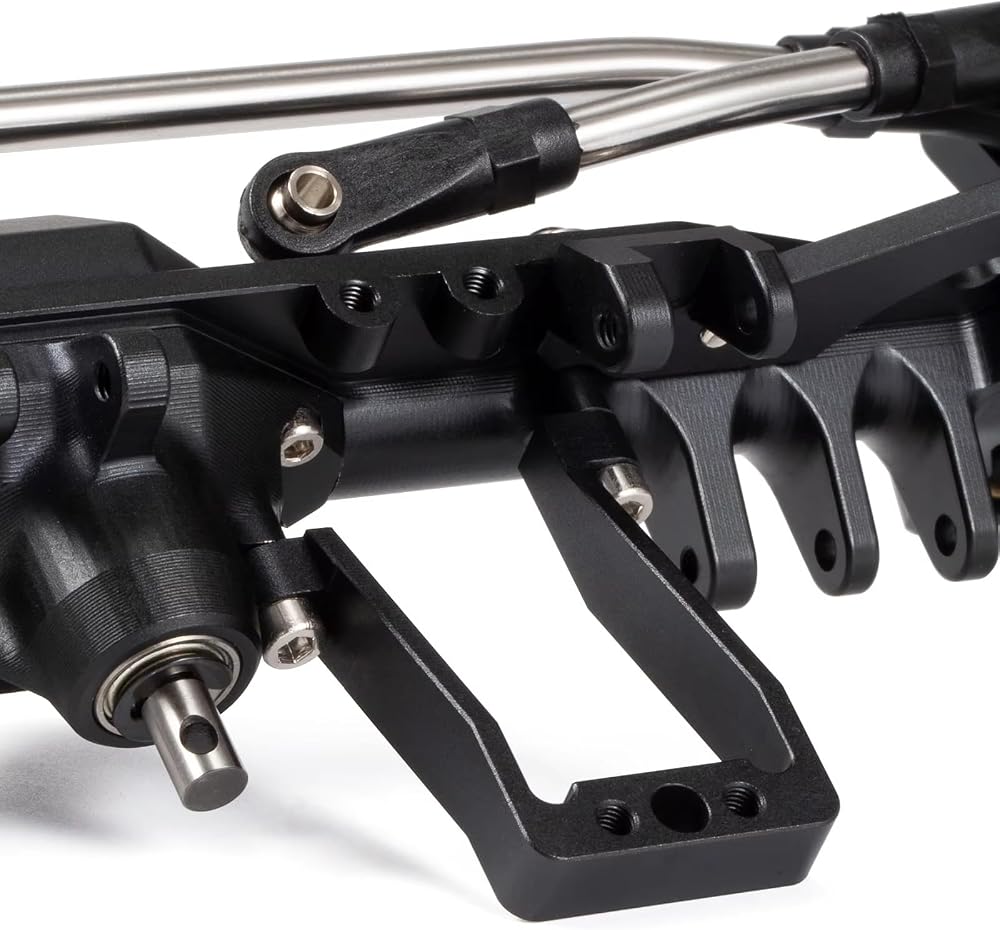

B: Use the removable BAT mounts as a AMS option. (Behind Axle Mounted Servo)

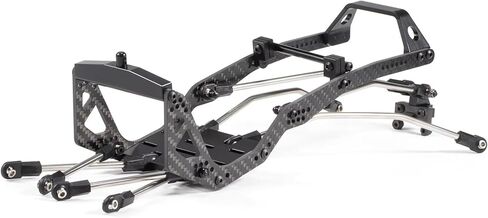

Chassis kit Includes:

x1 Carbon Rails (pair)

x1 Body Mount / Chassis Brace - Front

x1 Body Mount / Chassis Brace - Rear

x1 Skid Plate

x1 Chassis Brace - Rear

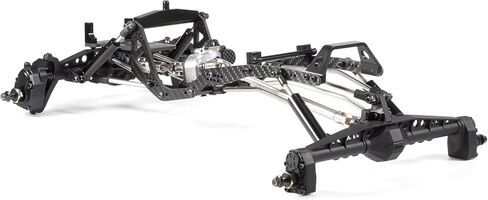

Here is some info on how we put these rigs together. This is a builders kit so it does not have to be put this way exactly, you can build it with any parts of your personal choice.
