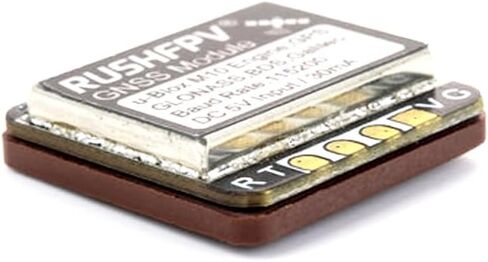

Description:
Receiving bands: GPSL 1, GLONASSL 1, BDSB 1, GALILEOE1, SBASL 1, QZSSL1
Receive channel: 72 CH
Receiving sensitivity: -162 dBm
Output protocol: UBX/NMEA
Baud rate: 115200dps
Output refresh rate: 1Hz - 10Hz
Power input: 5V 30mA
Speed accuracy: 0.05m/s
Positioning accuracy: 2D ACC 1.5m
Maximum working height: 50000m
Maximum movement speed: 500m/s
Dimensions: 18x18x4.8mm
Weight: 4.2g
Precautions:

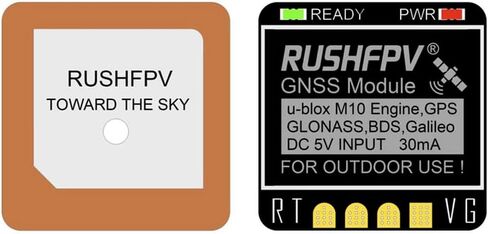

Please keep the top of the ceramic antenna unobstructed and avoid close to metal and carbon fiber.

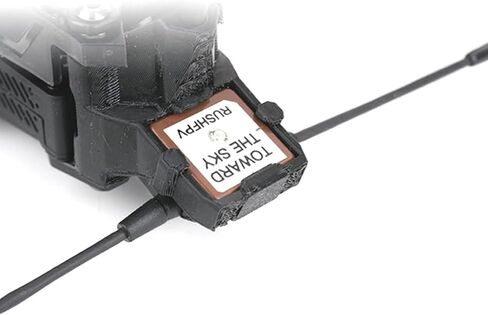

For the best reception, please use the bracket to install the GNSS antenna in a clear place, and keep it as far away as possible from the VTX and R/C receiver antenna.

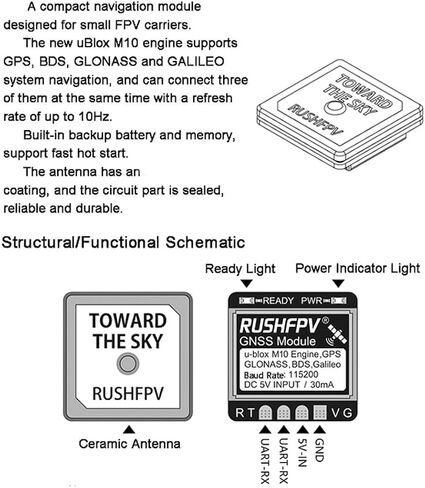

When connecting to FC, please connect theRX of the GNSS module to FC TX, and the TX of the module to FC RX.
The antenna is fragile, please do not hit or drop it.
The engraving marks on the ceramic antenna are produced by manually fine-tuning the center frequency to improve the performance of the antenna, and are not product defects.
