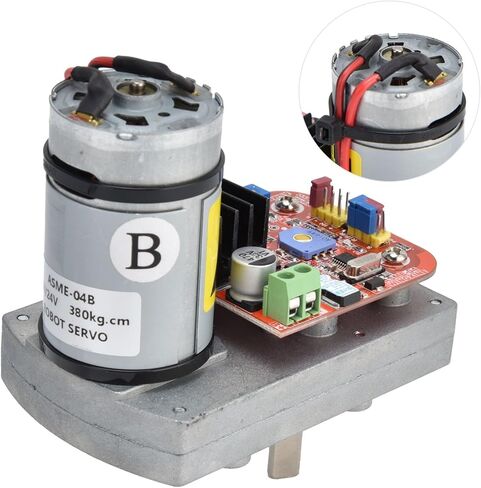

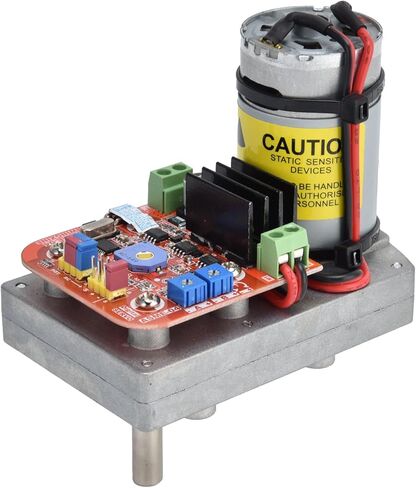

Robot Servo Motor Aluminum Alloy Digital Steering Gear Super Torsion Digital Steering Servos

KWD 26

Brand
GYZOUKA
Weight
0.6 kg
1 +

Special Features

  • [Versatile Applications] Widely used in robots, robotic arms, production lines, and camera pan-tilt control robots, offering versatility in various automation scenarios.
  • [Easy Installation] The d-hole anti-skid key connection on the servo arm plate makes installation a breeze, compatible with asmc asme servo axles for simple setup.
  • [Remote System Compatibility] Perfectly compatible with remote systems like futaba, jr, hitec, this servo motor offers seamless integration and control.
  • [High Stability and Continuous ] This robot servo motor offers high stability and can continue to work even if the is blown, ensuring within a stable torsion range.
  • [Metal Gears for High-torsion Output] The sturdy metal gears ensure high-torsion output for powerful motors, providing durability and longevity.

Description

Spec:
Item Type: Robotic Servo Motor
Maximum Torsion: 380kg.cm (24V) (Actual Measurement, Not Theoretically Calculated Value)
3648N.cm(24V) (Actual Measurement, Not Theoretically Calculated Value)
190kg.cm(12V) (Actual Measurement, Not Theoretical Calculation Value)
1824N.cm(12V) (Actual Measurement, Not Theoretically Calculated Value)
Angular Speed: 0.5s/60°(0.5s is Needed for 60°Rotation), at 24V;
1.0s/60°(1.0s is Required for 60°Rotation), at 12V;
Rotation Angle: 300°Maxium
Input Mode: Pulse (Remote Control, Multi-Channel Steering Gear Controller, Single-Chip Microcomputer) or Analog Voltage (Potentiometer)
Pulse Input Range: 0.5ms-2.5ms Suitable for All "Multi-Channel Steering Gear Controllers", "1ms-2ms Model Airplane Remote Control", "MCU Programming", Etc.;
Voltage Input Range: 0V to +5V
Control Accuracy: 0.32°
Rated Voltage: 12V~24V/DC (11V/Minium~30V/Maxium, Limit Voltage)
No-Load Current: 500mA (Current Limit: 5A, Recommended to Use A Switching Power Supply or Battery Greater than 5A)
Limit Angle: ±150° or 0°~300°(Maxium) The Steering Gear Has Electronic Limit Adjustment
Analog Voltage Mode: 0V-5V Input Voltage (0.22V Corresponds to 0°, 4.78V Corresponds to 300°)
Material: Gear and Shaft: Alloy Steel; Gear Box: Cast Aluminum
Weight: Approx. 550g / 19.4oz
Dimension Size: Approx. 95 x 60 x 110mm / 3.7 x 2.3 x 4.3in
Mechanical Life: >1,000000 Cycles/Full Load (Conservative Value)
Limit Parameters
Limit Voltage: 11V-30V/DC(Maxium)
Current Limit Value: 5A±0.2A(Maxium)
Working Angle: ±150° or 0°~300°(Maxium)
RC Mode: 1ms Pulse Mode: 1ms~2ms (Pulse Width)/50Hz~333Hz (Frequency)
2ms Pulse Mode: 0.5ms~2.5ms (Pulse Width)/50Hz~333Hz (Frequency)
Analog Voltage Mode: 0V-5V Input Voltage 0.22V Corresponds to 0°, 4.78V Corresponds to 300°)

packing list:
1 x Robotic Arm Servo
1 x Connection Line
