Fit Compatible With F4 1S 5A Fit Compatible With AIO Brushless Flight Controller Built-in Fit Compatible With SPI ExpressLRS Fit Compatible With ELRS 2.4G Receiver Fit Compatible With Drone Meteor 65 /75
Bullet Point
Come with a Serial ExpressLRS 2.4G receiver, which can be updated via Wi-Fi or Betaflight serial passthrough. It is convenient Fit Compatible With pilots to flash any version of ELRS firmware and especially can flash Fit Compatible With ExpressLRS V3.0 without updating flight controller firmware.
Fit Compatible With SPI Fit Compatible With version board reserves an SBUS port and a UART port, which is available Fit Compatible With the SBUS protocol receiver or other external receivers.
Built-in an 8MB flash memory chip dedicated to Blackbox logging. It's an extremely powerful tool Fit Compatible With tuning and troubleshooting an drone.
Integrated motor pin connectors, it is easy to install motors without soldering work.
Particular design with only 3.6g ultralight weight, reasonable layout, and easy to build. With a 26*26mm mounting hole size, it is fully compatible with the whoop frame in the current market.
Specification of FC

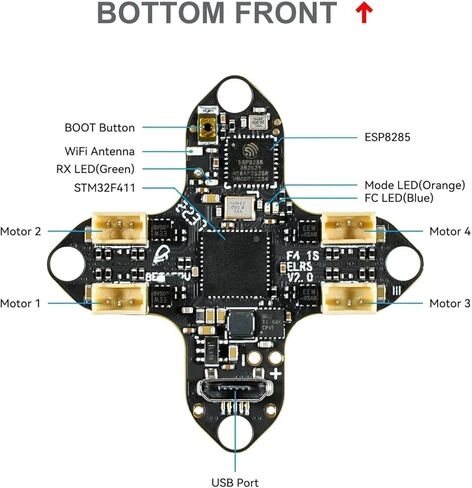

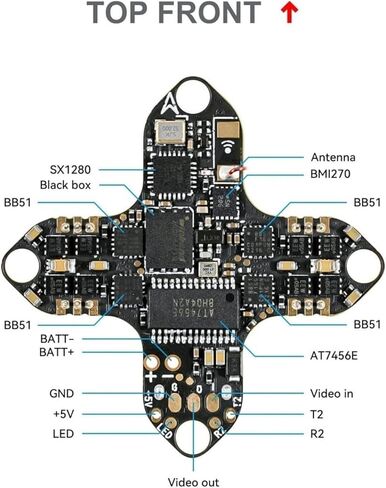

CPU: STM32F411CEU6 (100MHZ)
Six-: BMI270
Built-in Receiver: Serial ExpressLRS 2.4G/SPI CC2500 (Fit Compatible With )
Receiver : Line
FC Size: 30*30mm
Mounting Hole Size: 26*26mm
Firmware version: betaflight_4.3.1_BETAFPVF411 (ELRS)/betaflight_4.2.11_BETAFPVF411RX (Fit Compatible With )
OSD: Built-in BetaFlight OSD
Blackbox: 8MB
Recommend VTX: >200mW, like Fit Compatible With M03 350mW VTX or Fit Compatible With TBS Unify VTX
Power : 55mm, with BT2.0 connector
Weight: 3.6g(ELRS)/3.7g(Fit Compatible With ), without power and BT2.0 connector
Specification of ESC
Power supply: 1S
Current: 5A continuous and peak 6A (3 seconds)
ESC firmware: A_X_5_.HEX Fit Compatible With BB51 BLHeli_S hardware
Support: Fit Compati
