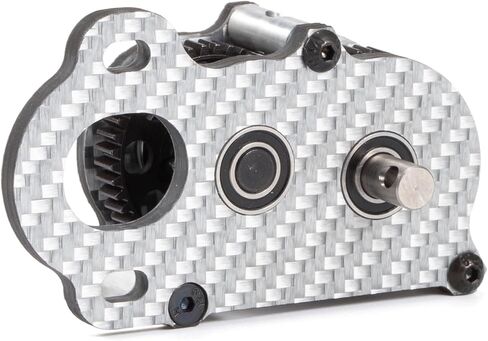

NOD Transmission Straight Axle Gearbox for Scaler Sportsman 1/10 RC Crawler Chassis - Ultra-Lightweight Low-CG Design (Silver)

KWD 15.500
Brand
ZMHOBBY
Weight
37 g
ColorSilver
– 1 +

Special Features

  • Ultra-Compact and Featherlight Build: Only 35g, with dimensions 59.4mm W x 35.3mm H x 21.3mm. 4:1 low gear ratio with 44T 48P spur gear optimizes torque distribution. Compatible with 11T-18T pinions (not included). This is a universal fit transmission geared for straight axles, typical use would be Scaler and Sportsman class vehicles
  • Strong Durability: Features laser-cut carbon fiber housing, hardened chromoly steel gears, and titanium output shafts - engineered to withstand extreme comp rig conditions while maintaining silky-smooth operation
  • Precision Low-CG Engineering: Ultra low center of gravity (LCG), the motor sits as low as possible with a stubby type motor. Full size 540 motors require the included spacer under the transmission, meaning they get the ultimate in LCG too
  • Pro-Level Installation Flexibility: Includes CNC aluminum adapter plate and hardware set for seamless integration with Axial 3-gear skid plate. Easy 2 hole mounting with extra room for screws without hitting the gears. Precisely spaced 25mm motor/33mm skid mounting patterns ensure universal 1/10 chassis compatibility
  • Competition-Ready Silent Operation: Advanced meshing geometry and premium materials significantly reduces gear noise (which can be further minimized with grease application), allowing you to concentrate fully on technical control during crucial competitive moments

Description

Features:
Tiny Transmission for straight axles.
Laser cut carbon fiber case.
Hardened chromoly gears.
Grade 5 Titanium 5mm output shaft.
Dimensions: 59.4mm W x 35.3mm H x 21.3mm L (not counting output shaft).
Weight: 34.7g, Ultra-Small and Ultra-Light. Ultra low center of gravity (LCG).
Low noise and ultra smooth.
Motor bolt holes 25mm on center. Skid plate mounting holes 33mm on center (M3 threaded holes).
Comes with an aluminum slidable shim based on the Axial 3 gear type transmission mounting holes.
44T Spur Gear (48 pitch), 4:1 Low gear ratio.
Fits 48 Pitch pinions from 11T to 18T (Not Included).

Transmission Ratio:
11T pinion=16:1
12T pinion=14.67:1
13T pinion=13.54:1
14T pinion=12.57:1
15T pinion=11.73:1
16T pinion=11:1
17T pinion=10.35:1
18T pinion=9.78:1

Package Includes:
1x Complete Transmission Assembly
1x Aluminum Adapter Plate
1x Hardware Set
