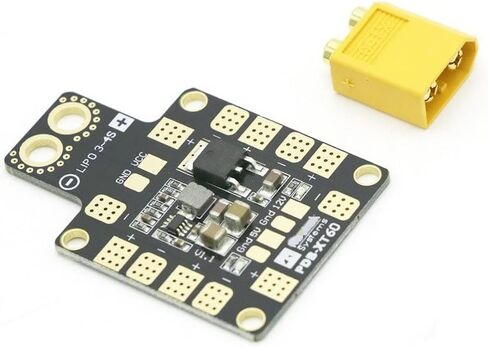

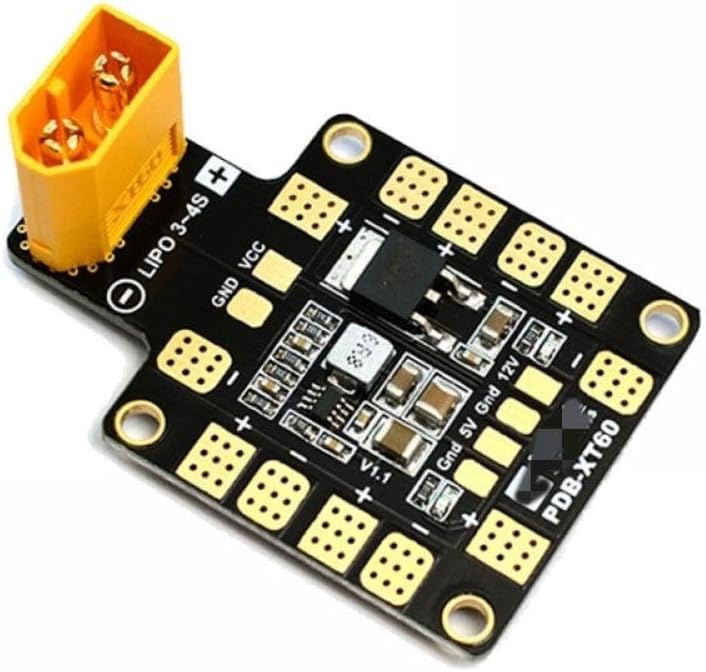

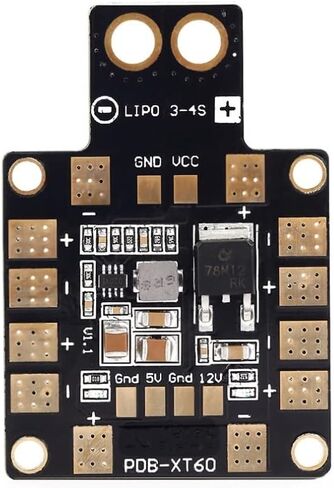

Compatible With Matek Systems PDB XT60 W/ BEC 5V &A; 12V 2oz Copper Compatible With RC Helicopter Quadcopter Muliticopter Drone Power Distribution Board

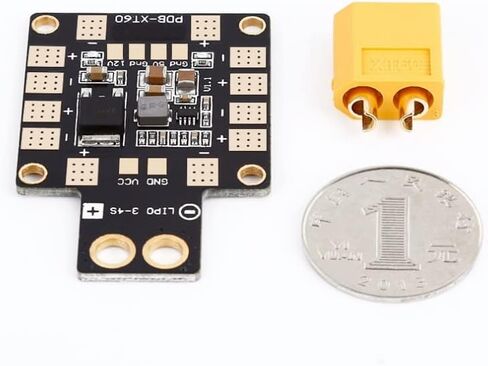

NoteL The COIN is just Compatible With reference, the package is not included it.
Description:
General:
-Input voltage range (3S-4S LiPo ): 9 18V DC
-Regulated 5V and 12V outputs
-L ED power indicators ( 5V & 12V outputs
6 ESC outputs 1 pair Compatible With VCCGND pads
ESC outputs
-Continuous current: 25A*4 or 15A*6
-Peak current (10 seconds/minute): 30A*4 or 20A*6
BEC 5V output:
-Designed Compatible With RC Receivers, Compatible With Flight controllers, Compatible With OSD, and Compatible With Servos.
-DC/DC synchronous buck regulator.
-Voltage: 5.0 +/- 0.1VDC
-Continuous current: 2 Amps (Max.2.5A 10s/minute)
-Output Ripple: 40mV (VIn16V, VOut5V@2A load)
-Short-tolerant (5 seconds/minute)
BEC 12V output:
-Designed Compatible With Video TX or camera with linear regulator.
-The should be 4S LiPo (13~18V DC)
Voltage: 12.0 +/- 0.3VDC
-Continuous current: 500mA (Max.0.8A 5s/minute)
-Short-tolerant (2 seconds/minute)
BEC 12V @ 3S LiPo
-Output voltage 3S LiPo voltage -1V
Physical:
-Dimensions: 36 x 50 x 4 mm (without XT60)
-Mounting: 30.5 x 30.5mm, 3mm
Weight: 7.5g(w/o XT60), 11g(w/ XT60)
