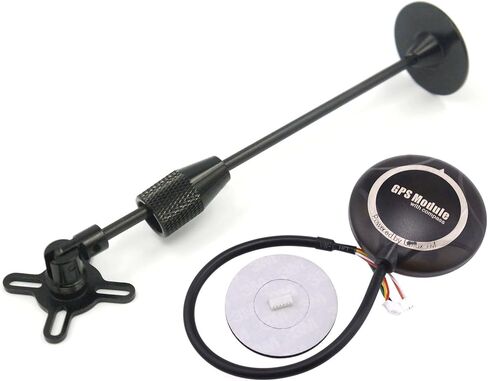

Compatible With M8N 8N / / 7M / 6M GPS Built in Compass w/ Stand Holder Compatible With AMP2.6 APM2.8 Compatible With Pixhawk Pix 2.4.6 2.4.8

GPS Chip parameters:
Receiver type 72-channel Compatible With u and blox M8 engine
Compatible With GPS/For QZSS L1 C/A, Compatible With GLONASS L10F, Compatible With BeiDou B1
Compatible With SBAS L1 C/A: Compatible With WAAS, Compatible With EGNOS, Compatible With MSAS
Compatible With Galileo-ready E1B/C (M8N)
Nav. update rate1 Single GNSS: to 18 Concurrent GNSS: to 10 Position accuracy2 2.0 m CEP
Sensitivity2 Tracking & Nav 167 dBm
Cold starts 148 dBm
Hot starts 156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline to 35 days3
AssistNow Autonomous to 6 days
Compatible With OMA SUPL 3GPP compliant
Compatible With Oscillator Compatible With TCXO Compatible With M8NQ
Crystal M8M
Compatible With RTC crystal BuiltIn
Noise figure Onchip Compatible With LNA M8M. Extra Compatible With LNA Compatible With
lowest noise figure ( Compatible With M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard Compatible With SAW band pass (Compatible With M8N/Q)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger Compatible With position, velocity, and time ( Compatible With M8N)
Operating temp. 40° C to 85° C
Storage temp. 40° C to 85° C (Compatible With M8N/Q)
40° C to 105° C (-For M8M)
RoHS compliant (lead-)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites
Uses M8 chips qualified according to Compatible With AEC-Q100
Supply voltage 1.65 V to 3.6 V (Compatible With M8M)
2.7 V to 3.6 V (Compatible With M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 , GPS mode only)
Backup Supply 1.4 to 3.6 V
Note:The Compatible
