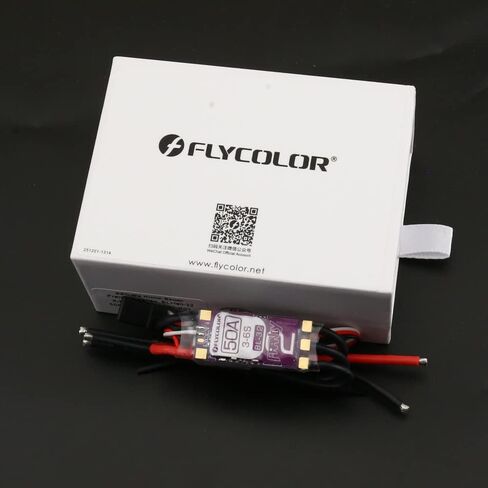

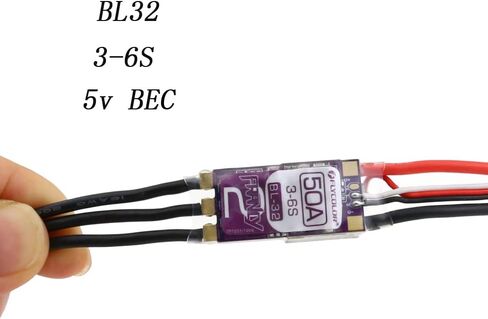

Product Name: Francy 2 50A Brushless ESC Speed Controller, it is a 50A ESC designed for fixed wing.
50A Brushless ESC Speed Controller: High performance MCU, modular BEC, supports Dshot digital signal.
Ultra-small size, can easily fit on the plane, ARM 32-bit cortex core MCU, operating frequency up to 48Mhz, can support up to 48Khz motor PWM frequency.
Supports up to Dshot1200 digital signals, lowest latency, digital protocols without calibration throttle (requires flight control support). Also supports PWM, Oneshot, Multshot protocols.

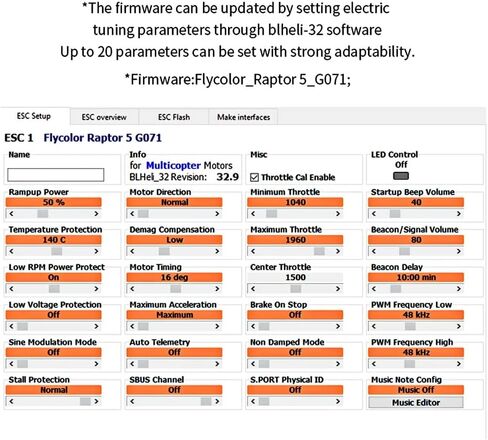

The firmware can be updated by setting ESC parameters through BLHeli-32 software, up to 20 parameters can be set, with strong adaptability. At the same time, the motor feed angle can be set from 1°-31°or automatically.
وصف
Description:
Brand: Flycolor
Model: Francy
Continuous current: 50A
Instantaneous current (10S): 50A
BEC: 5V/3A, 12V/2A
Number of lithium batteries: 5V/3A: 3-6S; 12V/2A: 4-6S(Not included)
Size: 33x16x10mm
Weight (including wire): 16.5g/pc
Features:
High performance MCU/modular BEC/all Dshot and Proshot signals are supported
Small size and light weight, support higher KV motor and more power load
ARM 32-bit Cortex MCU, frequency up to 64 MHZ, 25% higher than the previous generation of MCU
Supports regular 1-2ms pulse width input, as well as Oneshot125(125-250us),
Oneshot42(41.7-83.3us) and multshot(5-25us). the input signal is automatically detected by the ESC upon power up.
Motor timing can be set between approximately 1° and approximately 31° in approximately 1°increments(actual accurate values here are 15/16ths of a degree)
The firmware can be updated by setting the ESC parameters through the BLHeli-32 software, up to twenty parameters can be set with strong adaptability
