70kg Digital Servo 8.4V 180° Brushless RC Servo Motor High Torgue Waterproof IP68 Steel Helical Gear with 25T Servo Arm 1/8, 1/10 RC Car Robot Boat

KWD 18

Brand
Geekstory
Weight
87 g
1 +

Special Features

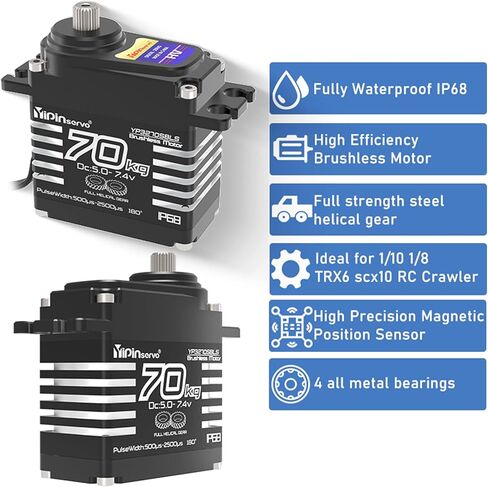

  • 【70KG】: 70KG Powerful Design. Brushless Servo: Low friction during operation, smooth running and low noise generated. High efficiency: high efficiency, high power and torque density
  • 【Feature】: No Load Speed 6.0V:≤0.12sec/60°; No Load Speed 8.4V:≤0.09sec/60°. Operating Travel Angle:180±10°(500~2500us)

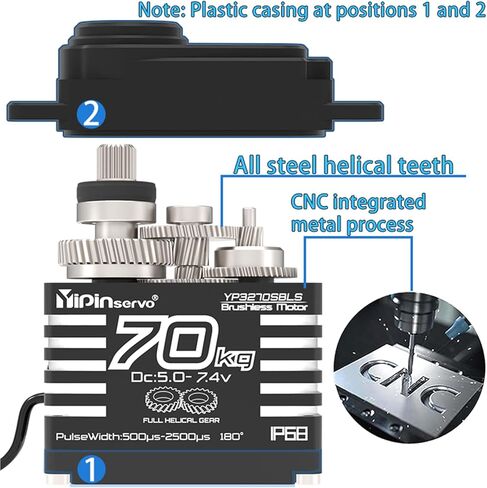

  • 【Construction】: Featuring a metal gear train with steel helical gears for lasting durability and performance. Aluminium alloy fluted shell design, good heat dissipation, beautiful appearance, suitable for the environment in -20 degrees Celsius to 80 degrees Celsius
  • 【Waterproof】: With an IP68 rating, the servo is fully waterproof and suitable for use in wet conditions. Can work underwater in a wide range of situations
  • 【Size】: Net weight: 90g; product size: 4.05*2.1*4.17cm; Operating Voltage 6.0-8.4V DC

Description

Description:
product size:90g
Net weight of product:4.05*2.1*4.17cm
Operating Voltage 6.0-8.4V DC
Standby Current: ≤20mA
Stall Current 6.0V:≤5A
Stall Current 7.4V:≤7A
Stall Current 8.4V:≤9A
Rated Torque:6.0V:≥10kg.cm
Rated Torque:7.4V:≥14kg.cm
Rated Torque:8.4V:≥16kg.cm
No Load Speed 6.0V:≤0.12sec/60°
No Load Speed 7.4V:≤0.10sec/60°
No Load Speed 8.4V:≤0.09sec/60°
Max.Torque 6.0V: ≥ 55 kgf.cm
Max.Torque 7.4V: ≥ 63 kgf.cm
Max.Torque 8.4V: ≥ 70 kgf.cm
Rotating Direction:ccw(500—2500us)

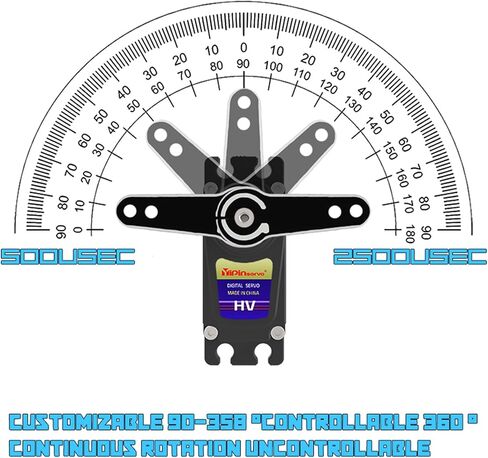

operating Travel Angle:180±10°(500~2500us)
Neutral Position:1500us
Reduction ratio:1:299
Dead Band Width:≤2us
operating Temperature Range:'-20℃~+80C

waterproof rating:IP68
Features: - Metal Gear
-Semi-metal case
-Brushless
-IP68

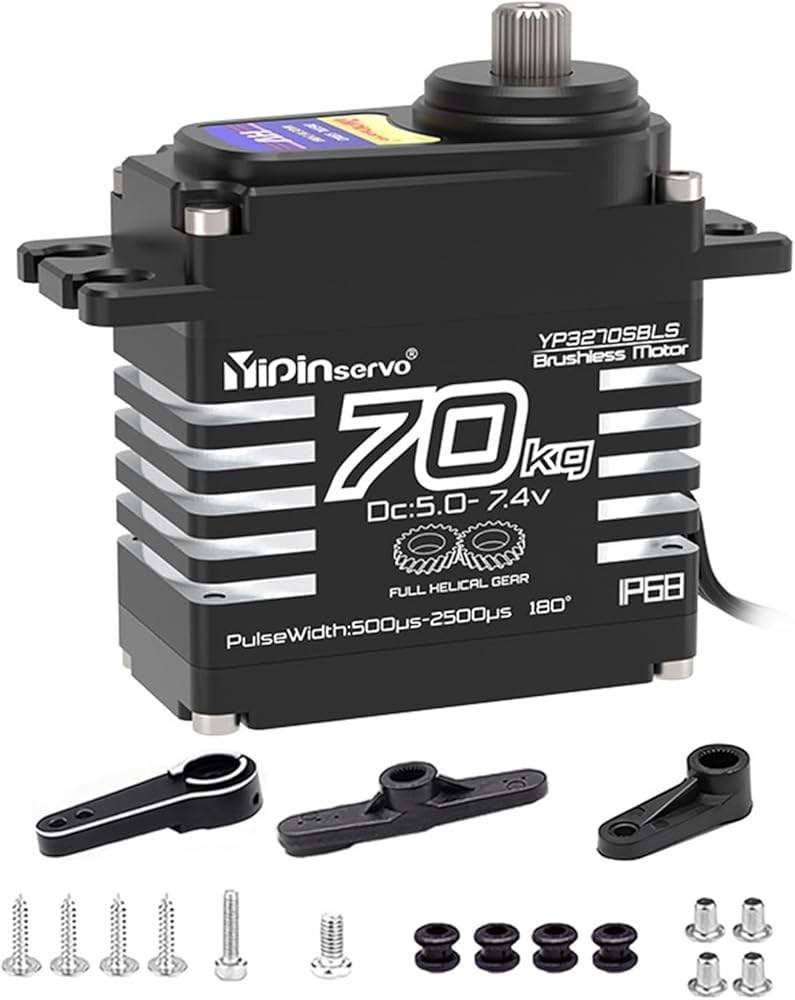

Packing list:
1 X 70kg Servo
1 X Servo accessories
