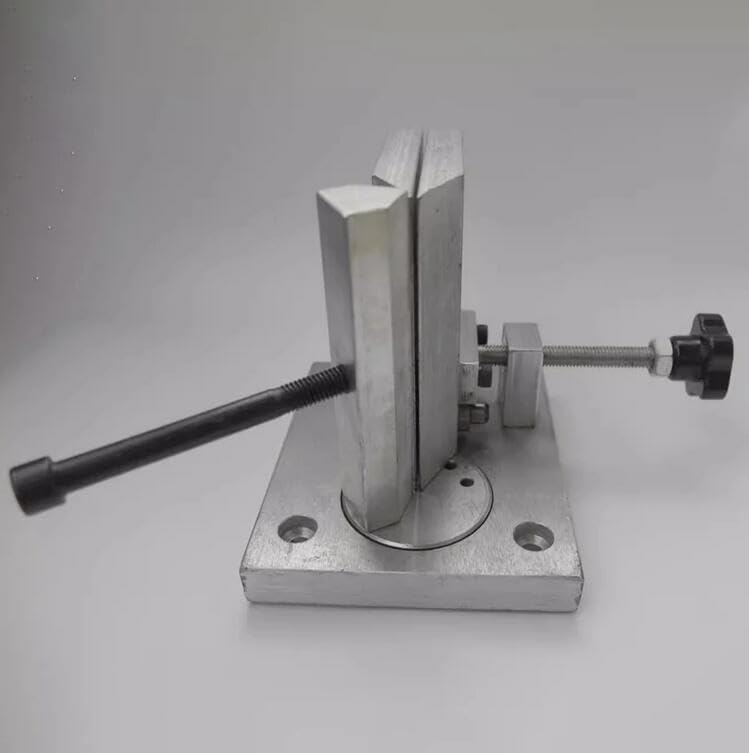

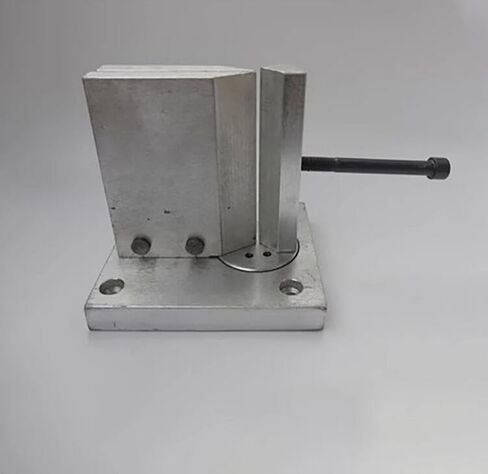

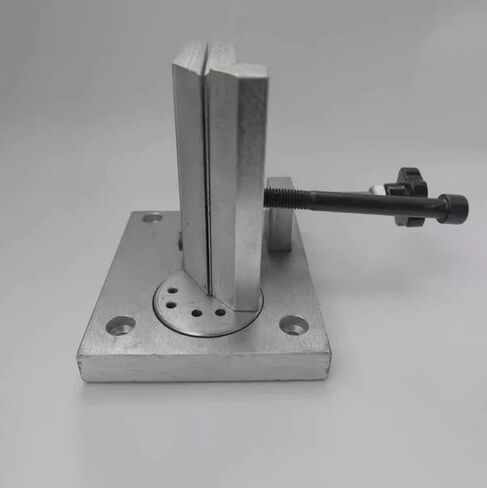

Desktop Metal Letter Edge Folding Machine Stainless Steel Aluminum Sheet Bender Dual-Axis Adjustable Angle Folding Machine
Specification:
Package Dimensions: 25cm × 25cm × 20cm
Material: 45# Steel
Clamping Method: Handwheel Rotation Clamping
Effective Folding Height: 10 cm
Base Plate Dimensions & Thickness: 11cm × 14cm, 1.8cm thick
Clamping Plate Dimensions & Thickness: 12cm × 9cm, 1.5cm thick
Max Clamping Width: 1 cm
Applicable Materials: Iron sheets, stainless steel, aluminum edges
Material Thickness Limits:
Iron sheets: ≤0.8mm
Stainless steel: ≤0.8mm
Aluminum edges: ≤1mm
Installation: Fixed to workbench via four corner screws
Handle Dimensions: 100mm × 10mm

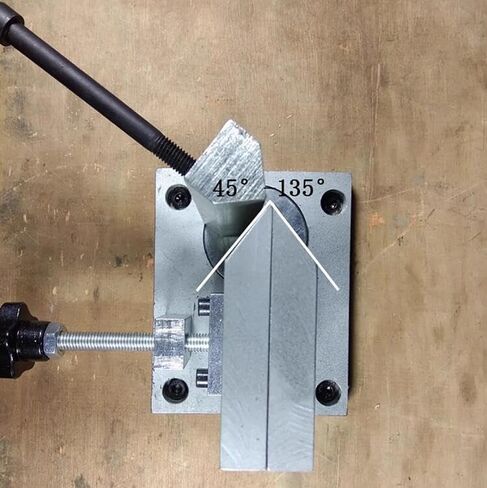

Adjustable Folding Angle: 45°–135°
Max Bending Height: ≤10cm
Weight: 5.8 kg
Precautions:
Installation: Before use, recess a slot on the workbench to accommodate the machine's bearing position. Secure the four corner screw holes to the workbench.
Material Limits: Suitable for iron sheets, stainless steel, flat/notched aluminum edges, and aluminum profiles. Do NOT exceed thickness limits to avoid damaging the machine.
Maintenance: Regularly lubricate bearings and tightening handles.
Angle Adjustment: For angles smaller than 45°, manually adjust after initial folding.

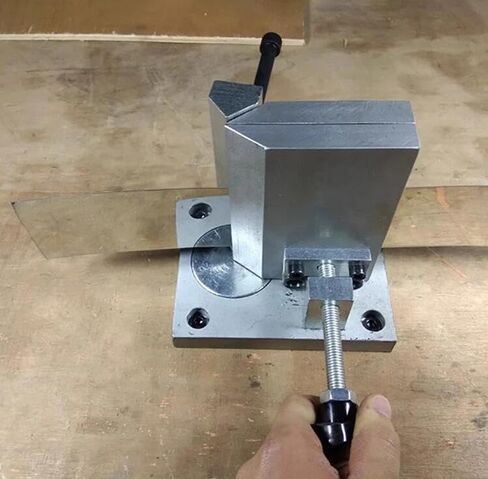

Usage Steps:
1.Fix the folding machine to the workbench using the four screw holes.
2.Loosen the locking handle.
3.Insert material and tighten the locking handle.
4.Fold to the desired angle.
5.Loosen the locking handle.
6.Remove the material.
7.Fine-tune the angle manually if needed.
Package included:
1 x Desktop Metal Letter Edge Folding Machine
