Radiomaster RP4TD ExpressLRS 2.4ghz Nano Receiver Built in WiFi TCXO

KWD 15.500
Brand
RADIOMASTER
Weight
19 g
– 1 +

Special Features

  • Featuring dual-channel 2.4GHz radios, the RP4TD excels in signal sensitivity, signal-to-noise ratio, and overall performance due to its optimized circuit design. The reliable DCDC power supply circuit ensures lower operating temperatures during extended usage. Additionally, the dual TCXO contributes to the utmost frequency stability and makes the RP4TD a leader in its class.
  • RP4TD features built in WIFI so you can wirelessly upgrade firmware configure the Receiver via the built-in WebUI with your PC or mobile phone.
  • Suitable for drones and fixed-wing models, the receiver can be installed virtually any application that requires a serial receiver.
  • Dual TCXO (temperature compensated crystal oscillator) The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Two TCXO offer better advantages in true diversity receivers.
  • The RP4TD is now compatible with mLRS! The mLRS project offers an open source 2.4 GHz & 915/868 MHz & 433 MHz/70 cm LoRa-based high-performance long-range radio link, which provides bidirectional serial connection combined with full remote control.

Description

Features
Gemini mode compatible
Reliable DCDC Power supply circuit
Class leading SNR and RSSI performance
Optimized PCB design for better heat dissipation
Upgraded antenna with greater durability and performance
UART pads for extended applications
Dual TCXO (temperature compensated crystal oscillator)
2x 100mw RF Telemetry power output
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specifications
Item: RP4TD ExpressLRS 2.4GHz Diversity Receiver
Type: ISM

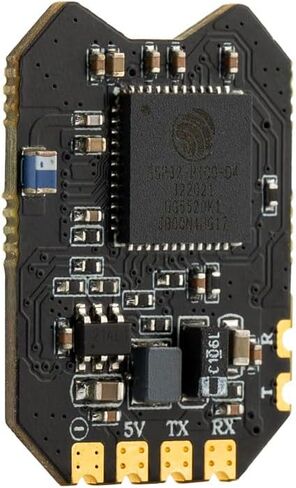

MCU: ESP32

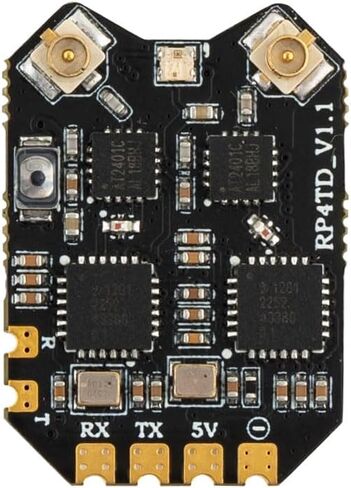

RF Chip: SX1281 x 2

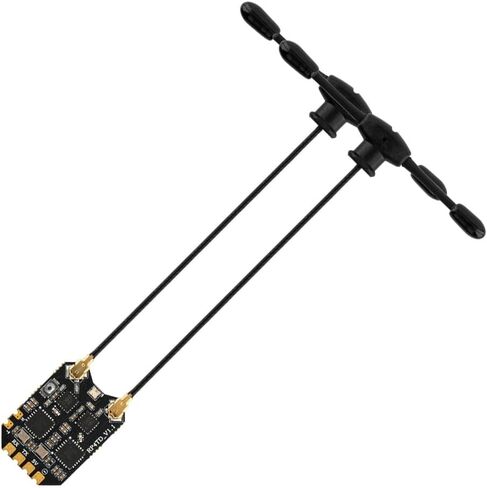

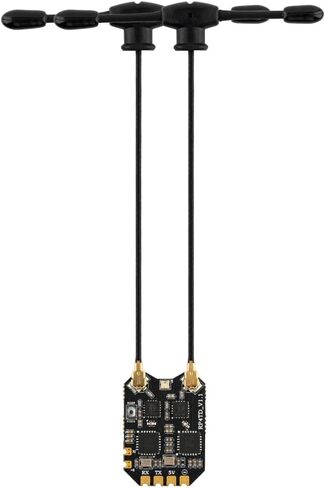

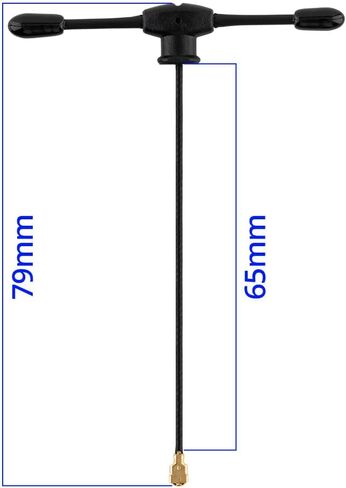

Antenna: 65mm 2.4GHz T Antenna x 2
Frequency Range: 2.4GHz
Maximum Refresh Rate: 500Hz / F1000Hz
Telemetry RF Power: Max 2x 100mW
Working Voltage: DC 4.5-12.0V

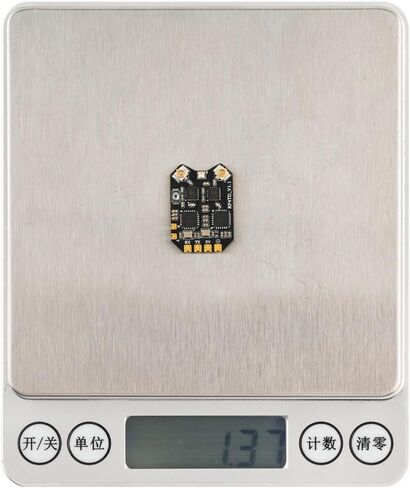

Weight: 1.4g (without antenna)

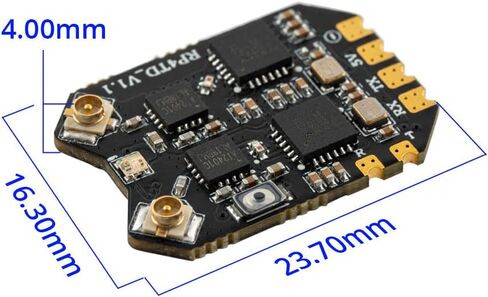

Dimension: 23.7*16.3*4.0mm
Firmware Version: ExpressLRS V3.3.0 pre-installed
FW Target: RadioMaster RP4TD 2400 RX
Bus interface: CRSF
Extend interface: UART

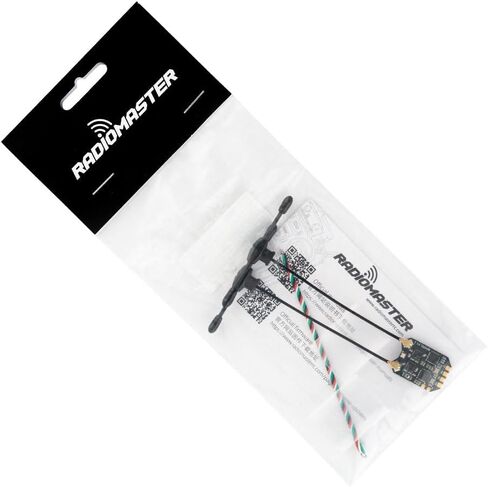

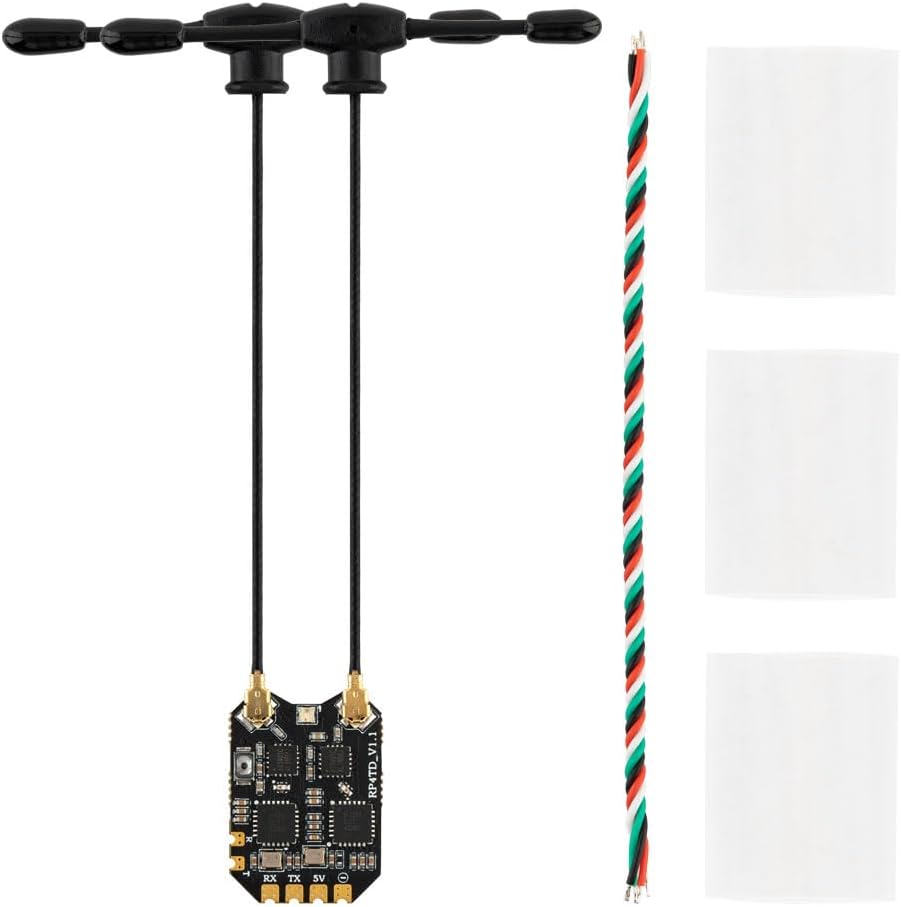

Package Includes
1 * RP4TD ExpressLRS 2.4GHz Diversity Receiver
1 * CRSF wire
3 * Heat-Shrinkable Tube
2 * 65mm 2.4GHz T Antenna (Installed on receiver)
1 * User Manual
