1PCS High Power 30A Electronic Module 1CH 2CH 12V 24V PWM Relay Switch Remote Control On-off Switches for DIY RC Models

- 1CH relay switch size: length 57.8mm width 27.7mm height 29.5mm, weight: about 40g/pcs

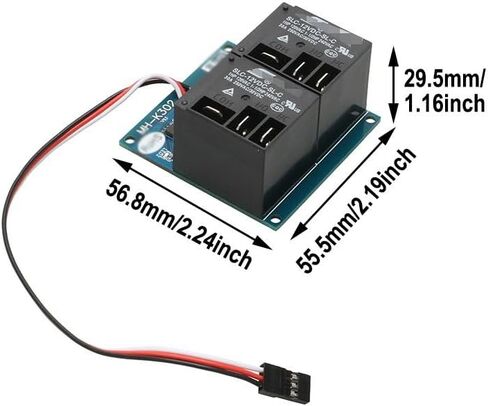

- 2CH relay switch size: length 56.8mm width 55.5mm height 29.5mm, weight: about 74.7g/pcs
- Receiver signal wire 5-10V voltage

Description:
- 1 way steering gear signal input, control 1 way/2 way electronic switch
- 30V maximum controlled voltage
- The controlled end supports 30A 250VAC/30VDC( can connect 250w motor)

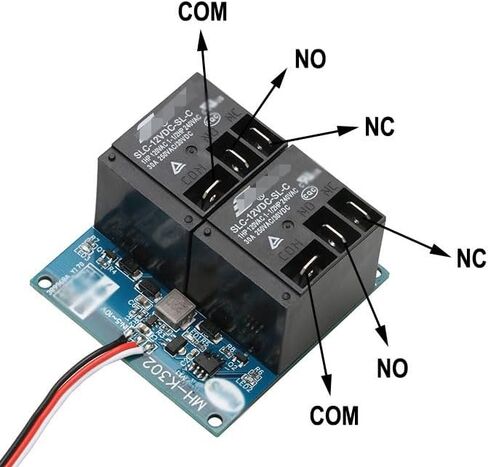

- 2-way output (only one relay at a time)
- Compatible with all brands of remote control equipment without calibration
- Three-stage switching channel / proportional channel control

Application Range:
- Remote control model rocket launch
- Remote control model smoke control
- The weapon system control of the real machine
- Model aircraft navigation light control
- Control of various remote switching systems
Functional Description:
- The remote switch remotely controls up to 2 channels of electrical equipment on the aircraft model through a switch channel on the remote control
- This equipment does not need to be calibrated, can accurately compatible with various brands of remote control equipment.
- The equipment is powered by a receiver, completely isolated from the external power supply. The external power supply is only supplied to the controlled equipment.

Package included:
1pcs x 1CH relay switch
or
1pcs x 2CH relay switch
