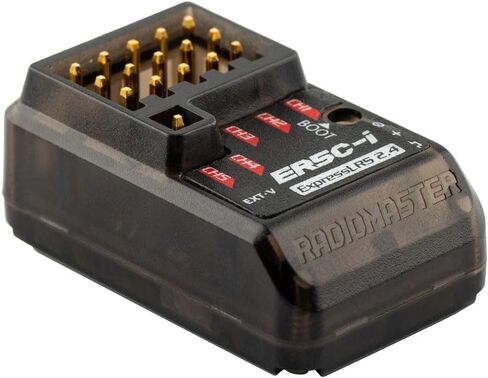

RadioMaster ER5C-i 5ch ExpressLRS 2.4GHZ PWM Receiver Built-in a TCXO

KWD 12.500
Brand
RADIOMASTER
Weight
19 g
– 1 +

Special Features

  • The RadioMaster ER5C-i receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.
  •  The ER5C-i ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER5C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.
  • Supports Wi-Fi updates and WEBUI configuration
  • Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
  • Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Description

Features
Built-in high-sensitivity ceramic antenna
Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range
Supports 5 PWM Channels
Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
Optimized ground up PCB design
Supports Wi-Fi updates and WEBUI configuration
Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
Designed for all types of surface models
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specifications
Item: ER5C-i 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 - 8.4V
Antenna type: Built-in high-sensitivity ceramic antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 5CH PWM
Telemetry power: 10mW
Battery voltage detection range: DC 4.0 - 35V

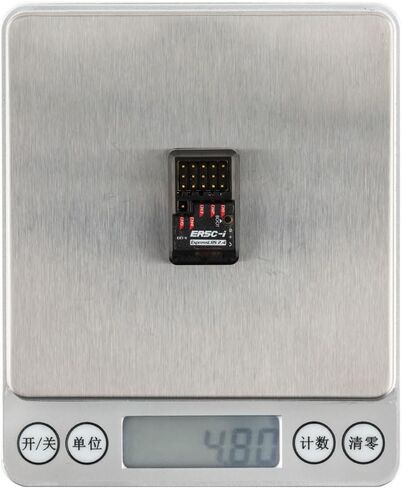

Weight: 5.0 grams

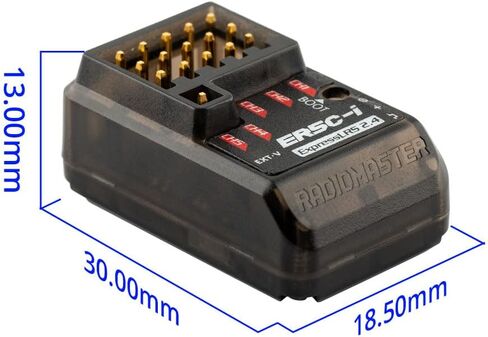

Dimensions: 30.0*18.5*13.0 mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER5C-i

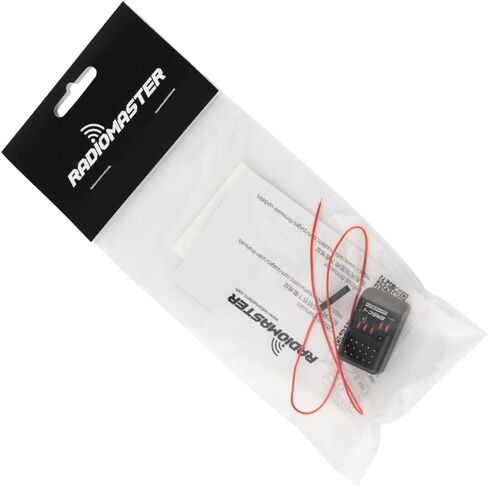

Package Includes
1 * ER5C-i 2.4GHz ELRS PWM Receiver

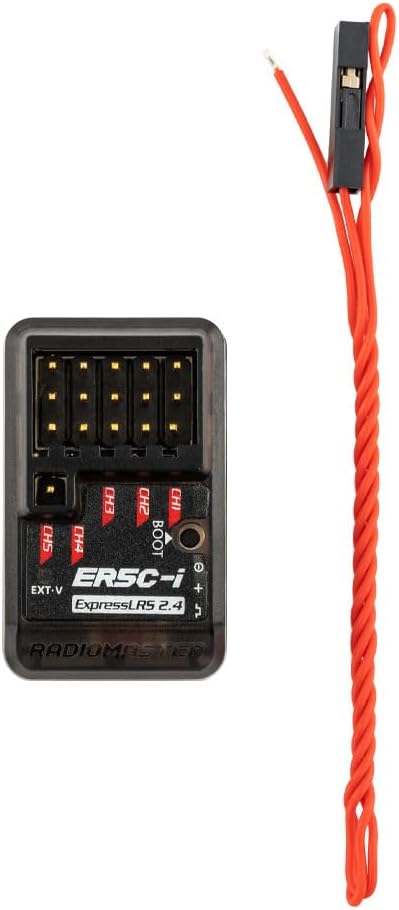

1 * Voltage telemetry wire
1 * User Card
