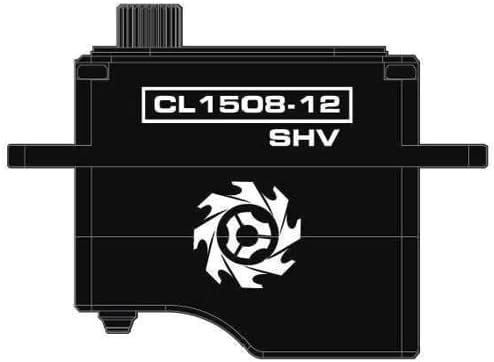

TORQ CL1508-12 Mini SHV Cyclic Servo Coreless DC Motor with Aluminum Alloy Case & Hardened Steel Gear Set - Remote Control Helicopter, RC Helicopter Electronics for 380-420 & 480-520 Size

KWD 36.500

1 +

Special Features

  • Unleash next-level cyclic control with the TORQ CL1508-12 Mini SHV Cyclic Servo, built for precision, speed, and raw power!
  • With 20.0 kgf.cm of torque at 13V, it delivers unmatched strength to handle the most aggressive 3D maneuvers with ease.
  • The coreless DC motor ensures ultra-smooth response, while the hardened steel gear set provides extreme durability under high stress.
  • Its aluminum alloy case offers superior thermal dissipation, keeping performance at peak levels during intense flights.
  • Designed with 1520us/333Hz working frequency, this servo guarantees fast, accurate, and reliable cyclic control for elite pilots.
  • Fully programmable with a soft-start function, it ensures a smooth power-up sequence for added safety.
  • Weighing just 35g, the TORQ CL1508-12 packs high-voltage muscle into a mini-sized powerhouse—perfect for 380-520 size RC helicopters. Take control like never before and dominate the skies!

Description

*** Specification:
Rated Voltage: DC12.0V
Voltage Range : DC8.40V-13.0V
Stalling Torque:
15.0Kgf.cm@8.40V
18.0Kgf.cm@12.0V
20.0 Kgf.cm@13.0V
Speed:
0.15sec/60°@8.40V
0.11sec/60°@12.0V
0.10sec/60°@13.0V
Start Current:
1.50A@8.40V
2.08A@12.0V
2.25A@13.0V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±60° =100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB
Case Dimensions: 33mm*15mm*30mm±0.2mm
Weight: 35g±10%
Command signal - PWM Command Interface
Signal Voltage:
HIGH: min.3.3V, max.5.0V
Low: min.0.0V, max.1.5V
Pulse Lengths: 900us-2100us
Pulse Lengths for Position: 1000us/1500us/2000us
-50°/ 0°/+50°
