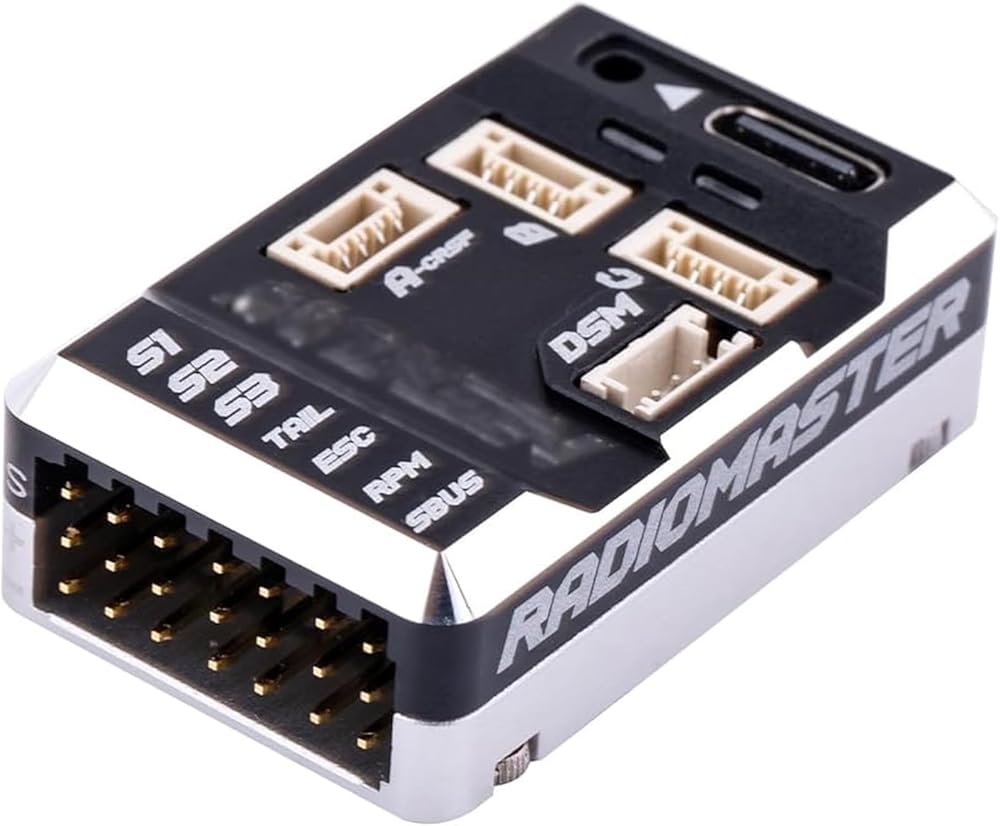

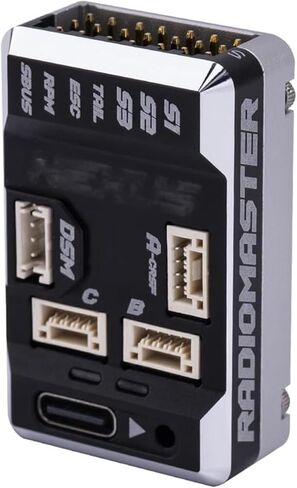

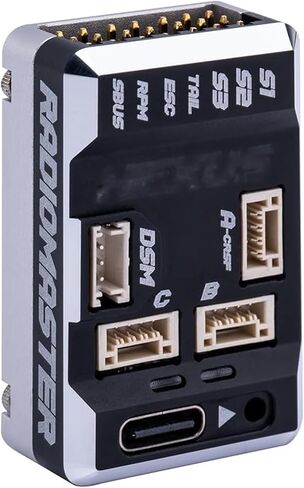

The Helicopter flight controller is designed from the ground up specifically for Rotorflight 2.0; Equipped with an advanced STM32F722 MCU and TDK 6-axis MEMS motion tracking device, which combines a 3-axis gyroscope and a 3-axis accelerometer
A variety of receivers are supported, including CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX, and F PORT; The device has multiple independent power supplies that minimize noise when reaching 1.8V. It includes 1.8V for Gyro, 3.3V for the MCU, and 5.0V for the external interface Ultra light-weight and flexible USB-C extender cable is included to help in situations where the USB-C port may not be easy to reach. Made as light as possible because every gram counts and uses flexible silicone wires to prevent vibration transfer to the control unit
Built-in Black Box: A large 128Mb of onboard flash memory ensures you can log all your flights for fine-tuning and adjustment; Locking connector system compatible with our Plug'n'Play solder-free RP3-H ExpressLRS receivers, You can rest assured that there will be a stable connection between the control unit and the receiver (RP3-H not included)

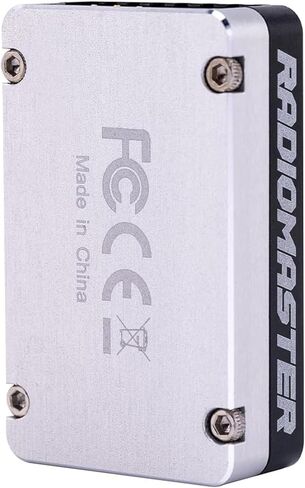

Features multi-function ports (UART) for future expansion; The flight controller is compact and rugged. The CNC case not only protects the internal components but acts as a heat sink to help keep the electronics cool
The measures just 41mm x 25mm and is only 13mm high, making it a perfect fit for any size heli build, including 250/450/500/550/600/700 helicopters; The flight controller supports a wide range of Tail Motors and Tail ESCs (760μs / 1520μs)
