A new 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors
Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power
Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles
Integrates the BEC module (5V2A), adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level
Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth
With a 470uF 25V capacitor to improve its working condition
AM32 ESC Programming Converter for AM32 open source program ESC, connects the ESC to a computer for configuration or firmware upgrade,very convenient!
Description
Specification:
Item name: 32-bit ESC
Firmware: AM32
Master control: AT32
Working voltage: 2-4S Lipo
Max current: 40A
BEC: 5V2A
Support signal: PWM/DSHOT/Sine, etc.
Board size: 32x13mm/1.26x0.51inch
Enhanced version size: 32x12mm/1.26x0.51inch
Signal cable length: 100mm
Weight: about 13.7g
Attention! When using the AM32 ESC, it is necessary to use in conjunction with a param converter.

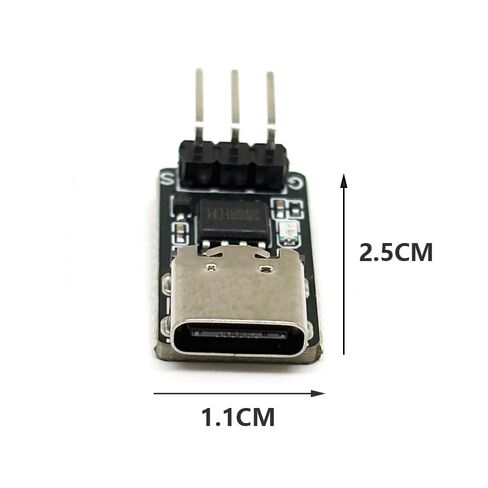

Parameter converter:
Working voltage: 5V
Special for AM32 32-bit ESC
Package include:
1pc x AM32 ESC
1pc x AM32 Param Converter
