Compatible With M8N GPS Built in Compass w/ Stand Holder Compatible With AMP2.6/ 2.8 Compatible With Pixhawk
Compatible With NEO-M8N GPS Module
GPS Chip parameters:
Nav. update rate1 Single GNSS: to 18 Concurrent GNSS: to 10 Position accuracy2 2.0 m CEP
Sensitivity2 Tracking & Nav 167 dBm
Cold starts 148 dBm
Hot starts: 156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (to 35 days)3
AssistNow Autonomous (to 6 days)
Compatible With OMA SUPL & Compatible With 3GPP compliant
Compatible With Oscillator Compatible With TCXO Compatible With M8NQ),
Crystal (M8M)
Compatible With RTC crystal
Noise figure On-chip Compatible With LNA (Compatible With M8M). Extra Compatible With LNA Compatible With
lowest noise figure ( Compatible With M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard Compatible With SAW band pass (Compatible With M8N/Q)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger Compatible With position, velocity, and time ( Compatible With M8N)
Operating temp. 40° C to 85° C
Storage temp. 40° C to 85° C (Compatible With M8N/Q)
40° C to 105° C (-M8M)
Compatible With RoHS compliant (lead-)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites
Uses M8 chips qualified according to Compatible With AEC-Q100
Supply voltage 1.65 V to 3.6 V (Compatible With M8M)
2.7 V to 3.6 V (Compatible With M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 , GPS mode only)
Backup Supply 1.4 to 3.6 V

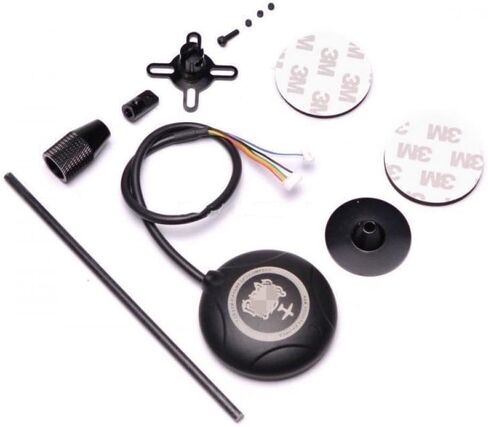

1 x Compatible With M8N GPS Module with Shell
1x BlackGps Holder
