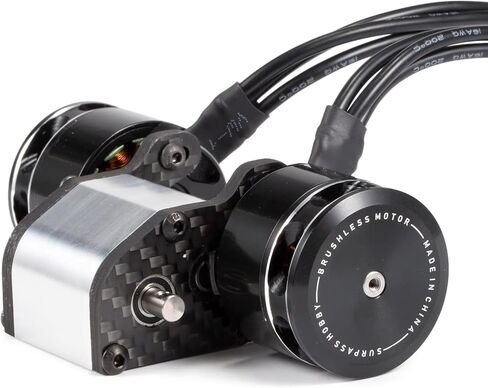

Dual Motor Transmission for Versatility: This ultralight dual motor transmission allows for the independent control of front and rear axles, enabling DIG, Overdrive, and various other mixing options for customized handling and performance in RC crawlers.
CNC Machined Aluminum & Carbon Construction: Built with a CNC machined aluminum case and carbon motor plate, this gearbox offers enhanced strength and durability while maintaining a lightweight structure, ensuring reliability even under demanding conditions.
High-Performance Gear Set: Featuring hardened chromoly gears and a Grade 5 titanium 5mm output shaft, this gearbox provides exceptional durability and strength for reliable torque transmission while keeping the weight at a competitive 62g.
Customizable Gear Ratios: Equipped with a 36T spur gear (48 pitch) and offering a 3:1 output ratio, this transmission is compatible with pinions from 11T to 18T, allowing you to adjust the gear ratio for tailored performance based on your RC crawler setup.
Compact & Low-Center of Gravity Design: With compact dimensions (35.2mm length, 43.7mm width, 33.8mm height) and a low weight of 62g, this transmission design ensures an ultra-low center of gravity, enhancing stability and handling on challenging terrain, ideal for LCG (Low-Center-of-Gravity) cheater rigs.

Feature:

Ultralight Dual Motor Transmission.

Works with either straight or portal axles.

Allow DIG, Overdrive, and basically any mixing option to control front and rear axles independently.

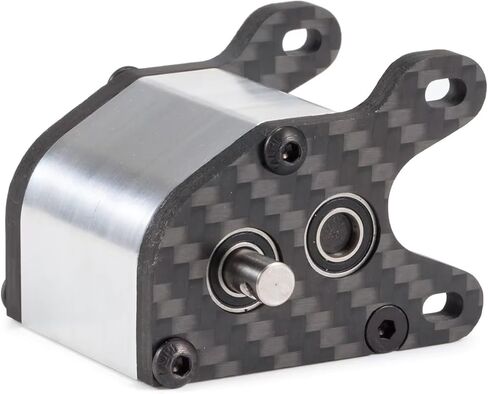

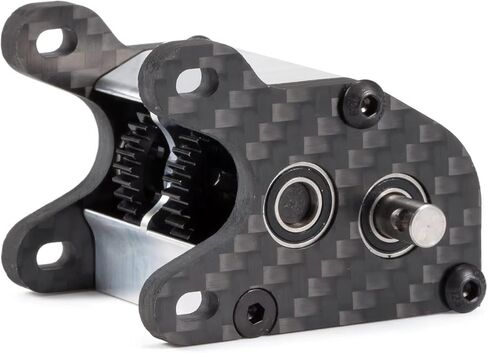

CNC machined aluminum case and carbon motor plate.

Hardened chromoly gears.

Grade 5 Titanium 5mm output shaft.

Comes with an aluminum slidable shim based on the Axial 3 gear type transmission mounting holes.

Weight: 62g

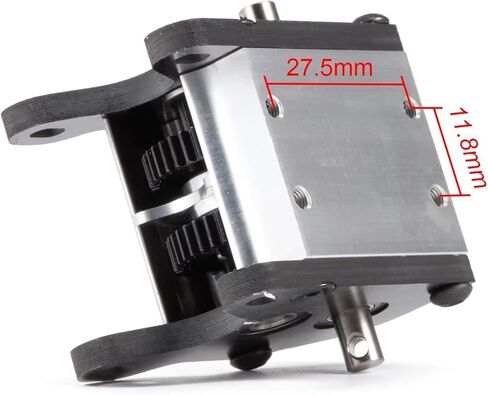

Motor bolt holes 25mm on center.

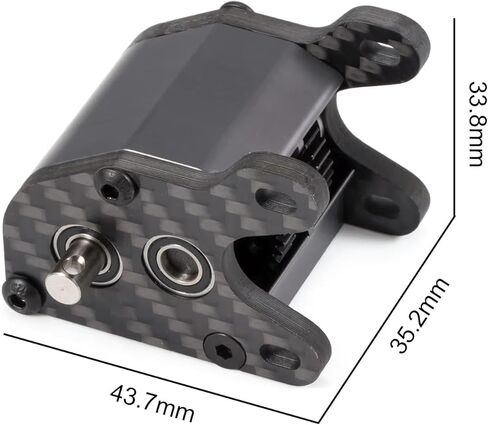

Dimensions: 35.2mm Length, 43.7mm Width, 33.8mm Height. (not including output shaft)

3:1 Output Ratios with 36T spur gears.

Fits 48 Pitch pinions from 11T to 18T (Not Included)

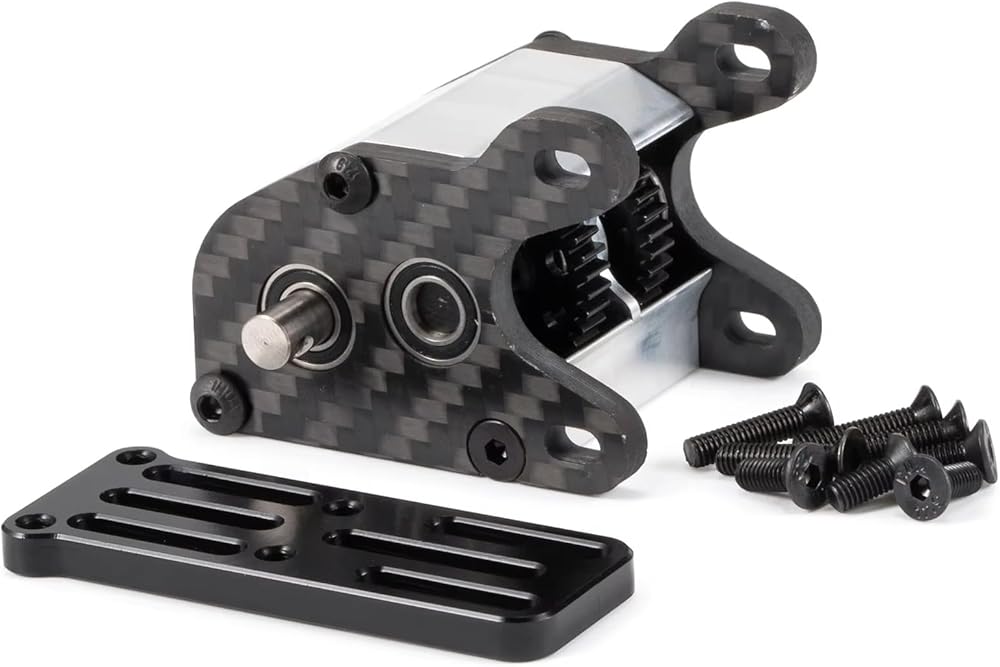

Included:

1x Dual Motor Transmission

1x Slidable Shim

1x Hardware Set
