Feature:
Model: LS-5804
Name: Mini FPV MONITOF
LCD Screen: 3.0 Inch IPS LCD
Resolution: 480*320 16:9
View Angle: 360without dead angle

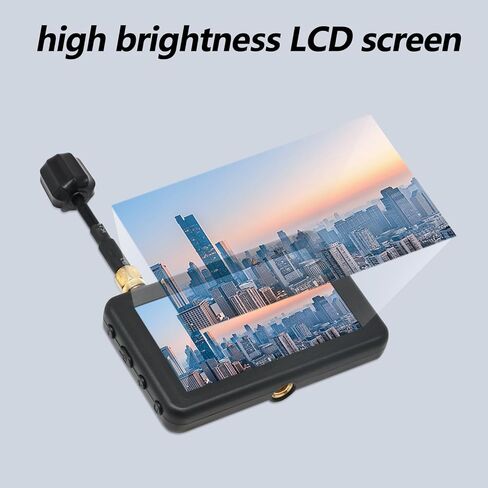

Brightness: 500cd/m2 with high brightness backlight LED
Video delay: Video time-delay less than 20ms
Interface:
Antenna :RP-SMA male
AV Jack :External video signals input or internals AV signal output
Power adapter: DC5V/1A (USB interface)
Battery:3.7V/800mAh, Each full charge revive around 2hr working time
Power Consumption:*The device operating current of 360~400mA at 3.7~4.2V;*Built-in battery maximum charge current of 800mA;
Wireless: Frequency Table(MHz)
Band A CH1-5865 CH2-5845 CH3-5825 CH4-5805 CH5-5785 CH6-5765 CH7-5745 CH8-5725
Band B CH1-5733 CH2-5752 CH3-5771 CH4-5790 CH5-5809 CH6-5828 CH7-5847 CH8-5866
Band E CH1-5705 CH2-5685 CH3-5665 CH4-5645 CH5-5885 CH6-5905 CH7-5925 CH8-5945
Band F CH1-5740 CH2-5760 CH3-5780 CH4-5800 CH5-5820 CH6-5840 CH7-5860 CH8-5880
Band R CH1-5658 CH2-5695 CH3-5732 CH4-5769 CH5-5806 CH6-5843 CH7-5880 CH8-5917

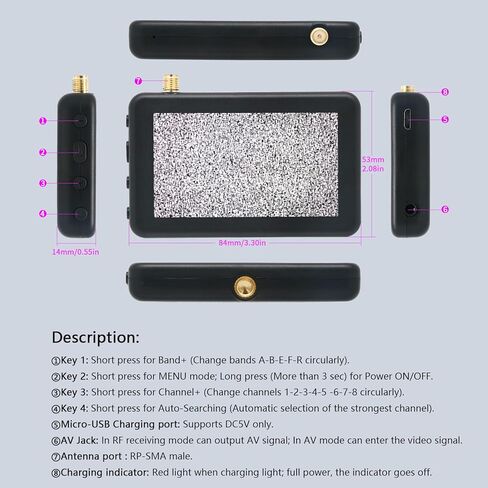

Key 1: Short press for Band+ (Change bands A-B-E-F-R circularly).
Key 2: Short press for MENU mode; Long press (More than 3 sec) for Power ON/OFF.
Key 3: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).
Key 4: Short press for Auto-Searching (Automatic selection of the strongest channel).
Micro-USB Charging port: Supports DC5V only.
AV Jack: In RFreceiving mode can output AV signal; In AV mode can enter the video signal.
Antenna port : RP-SMA male.
Charging indicator: Red light when charging light; full power, the indicator goes off.
Menu Operation Instructions:
In normal mode, press Key 2 to enter the MENU mode.
In MENU mode:
Key 2: Select the option bar.
Key 1: Value -.
Key 3: Value +
Key 4:Auto-Searching
