FEICHAO ExpressLRS RX24T Receiver 2.4G ELRS Radio Nano Long Range for DIY Racing Drone LR4 LR5

KWD 8

1 +

Special Features

  • The 2.4GHz ELRS nano series receiver is an open source program based on ExpressLRS.
  • Low-latency and high-refresh-rate, very comfortable for FPV race and Long Range FPV.

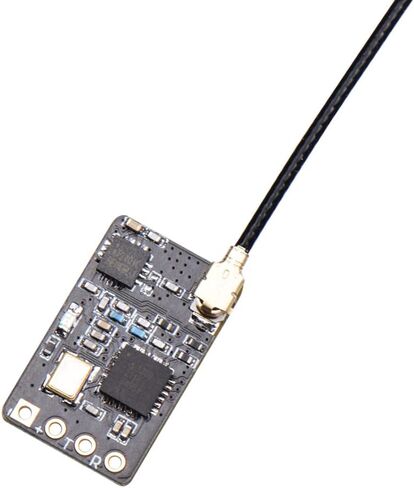

  • RX24T: Half-wave dipole omnidirectional T-shaped antenna; Antenna connector: IPEX1.
  • Frequency Range: 2400 MHZ To 2500 MHZ; Receiving refresh rate: 25-500HZ.
  • Lightweight only 0.6g (without antenna), Size 11*18*3mm, very suitable for Tiny whoop because of the ultra light and Nano size.

Description

FEICHAO ExpressLRS RX24T Receiver 2.4G ELRS Radio Nano Long Range for DIY Racing Drone LR4 LR5

Specification:
2.4G ISM type
ESP8285 MCU
SX1280IMLTRT RF
Frequency range: 2400 MHZ To 2500 MHZ
Maximum receiving refresh rate: 500HZ
Minimum receiving refresh rate: 25HZ
Working voltage: 5V

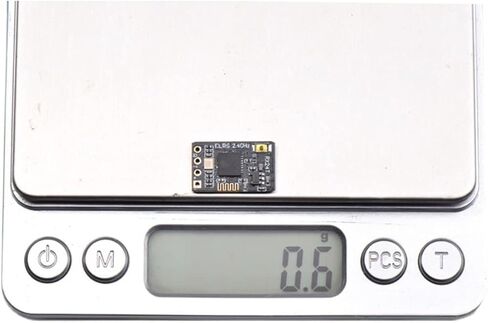

Weight: 0.6g (without antenna)

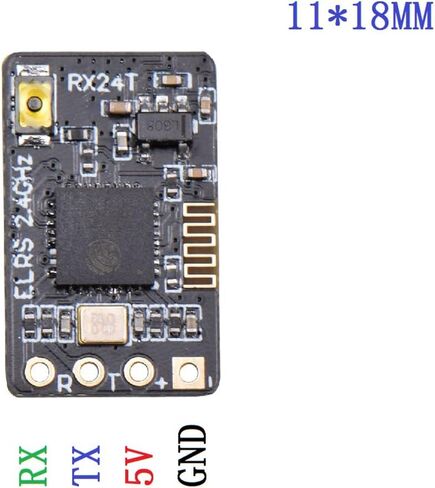

Size: 11mm*18mm*3mm
RX24T: Half-wave dipole omnidirectional T-shaped antenna
Peak gain: 3.16dB

Indicator status:
Double flash: code matching mode
Slow flashing: No transmission signal is received
Steady on: receive the transmit signal
Fast flashing: WIFI upgrade mode

Linking steps:
1. After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time, disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the LED will start to flash double, and the receiver will enter the code matching mode.
2. After correctly connecting the 2.4G ELRS tuner module and the remote control, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.
3. After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.

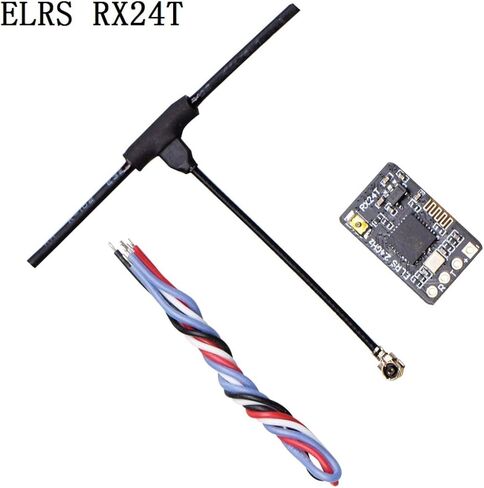

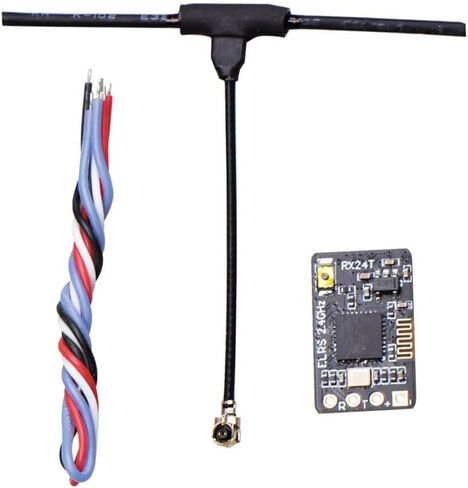

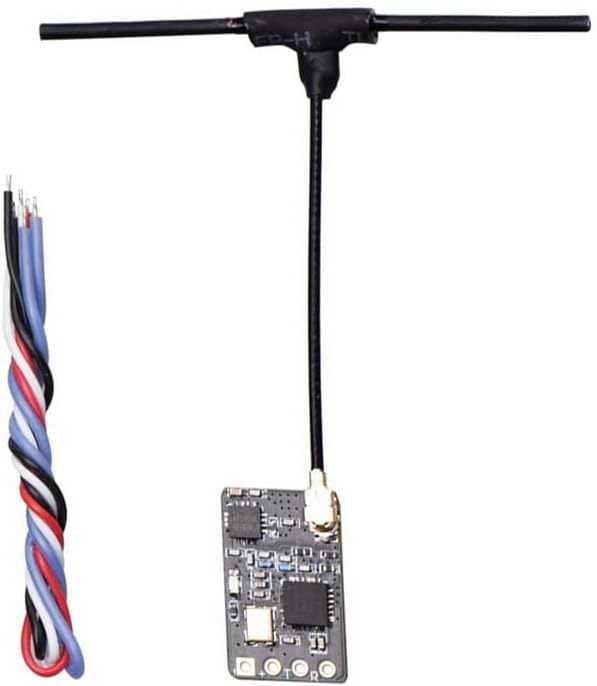

Package Include:
Receiver * 1
Wire * 4
T-type antenna *1
