#Specification:
Brand: LESU
Item condition: New, Assembled and Painted.
Scale: 1/14
Material: Stainless Steel, Aluminum Alloy, Brass, Plastic
Size: 377*127.6*203.2MM
Track gauge: 100mm
Rotation speed: 11 r/mim
Boom swing angle: L78°/R59°
bucket offset: L46.5/R61.5
Track width: 22mm
Total track length: 168mm
Hydraulic pump quantity: 1
Maximum digging depth: 209.5mm
Maximum digging radius: 416.2
Maximum digging height: 397.4mm
Travel motor speed (r/min): 15000
Maximum unloading height: 277.4mm
Rotary drive reduction ratio: 603
Rotating motor speed (r/min): 31800,7.4V
Travel drive reduction ratio: 256
Minimum radius of gyration: 74.2mm
Overall width of excavator: 127.6mm
Travel drive wheel speed (r/mim): 58
Cab top height from the ground: 203.2mm
Maximum depth of cut for dozer: 27.4mm
Reversing Valve: 6CH
Maximum digging radius on the ground: 405.6mm
X frame bottom height from the ground: 19.1mm
Maximum lifting height of dozer blade: 30.6mm
Hydraulic workstation rated pressure: 2mpa
Maximum pressure of hydraulic workstation: 3mpa
Ground clearance of the bottom of the work platform: 45mm
Wheelbase (center distance of drive wheel and guide wheel): 130mm
ID:LS-BA-B0003-RTR-Y

#The package includes:

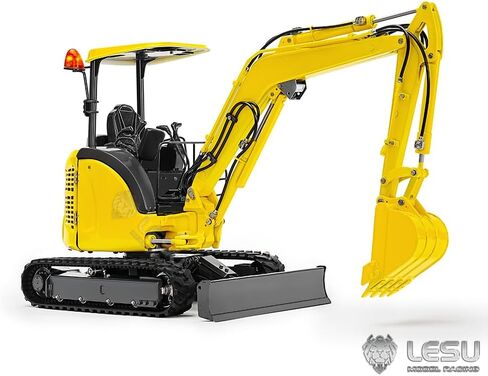

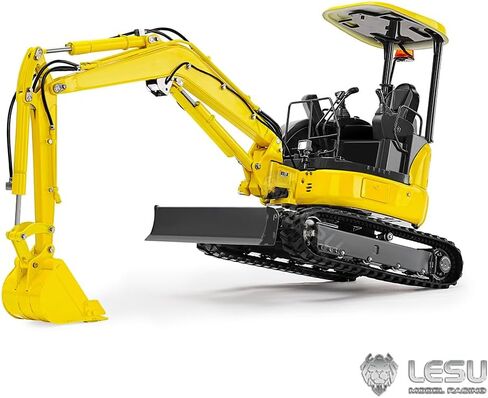

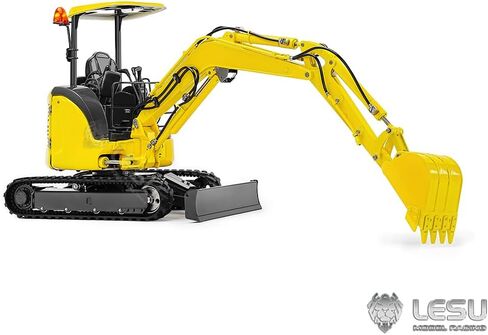

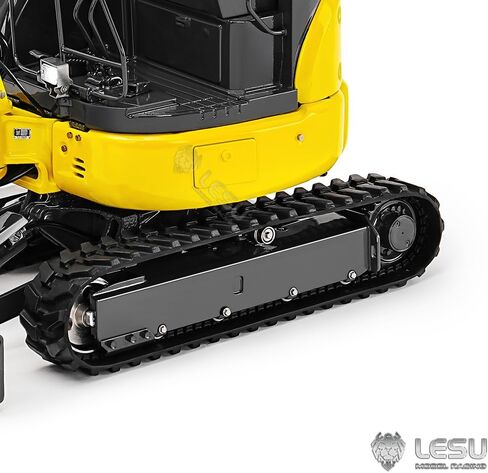

1/14 Mini RC Hydraulic Excavator PC30
ESC
Motor
Servo
Hydraulic System
Light System
Battery
Flysky ST8 Radio System

#The package does not include:
Sound System
