Printer Specifications

Management and Support
ZebraLink
Resolution
300 dpi/12 dots per mm
Memory
4 MB Flash; 8 MB SDRAM
Maximum Print Width
4.09"/104 mm
Maximum Print Length
39.0"/990 mm
Maximum Print Speed
4"/102 mm per second (300 dpi)
Media Sensors
Fixed transmissive and reflective sensors

Media Characteristics
Label and Liner Length
Maximum non-continuous: 39"/990 mm
Minimum using tear off mode: .25" (6.3 mm)
Minimum with label present sensor used 0.5"/12.7 mm
Minimum with cutter: 1.0"/25.4 mm
Label and Liner Width
0.75"/19 mm - 4.25"/108 mm

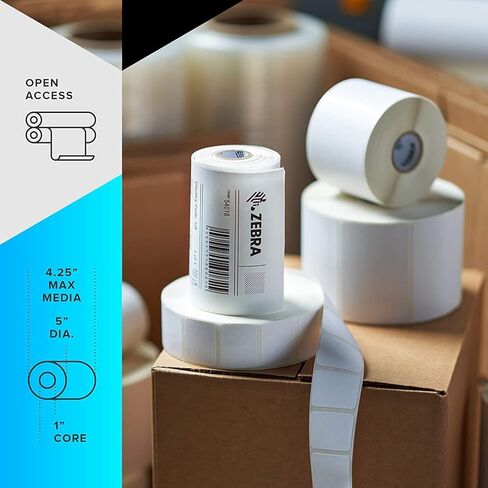

Media Roll Size
Maximum outside diameter: 5"/127 mm
Core inner diameter: 0.5"/12.7 mm, 1.0"/25 mm, 1.375"/35 mm, 1.5"/37.1 mm, 3"(76 mm
Media Thickness
0.003"/0.08 mm to 0.0075"/0.019 mm
Media Types
Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands
Ribbon CharacteristicsOutside diameter: 1.36"/35 mm
Standard length: 244'!74 m
Ratio: 1 :1 media to roll to ribbon
Width: 1.33"/33.8 mm to 4.3"/109.2 mm
Core inner diameter: 0.5"/12.7 mm

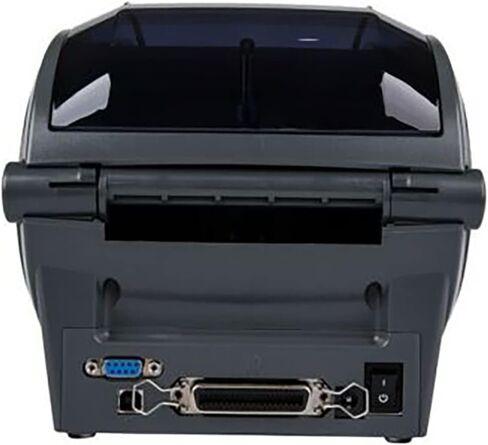

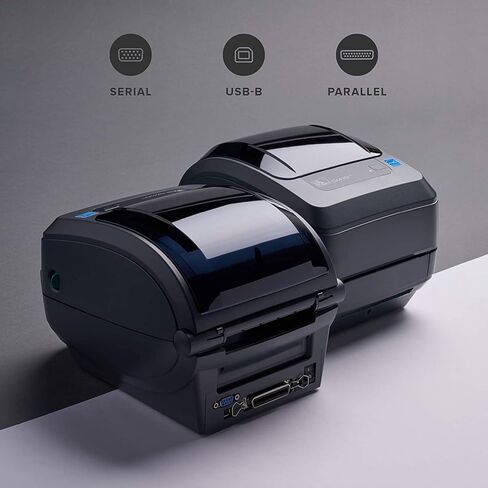

Communication and Interface Capabilities
RS-232 auto-sensing Serial interface, DB-9
USB V2.0, bi-directional
Centronics Parallel

Dimension

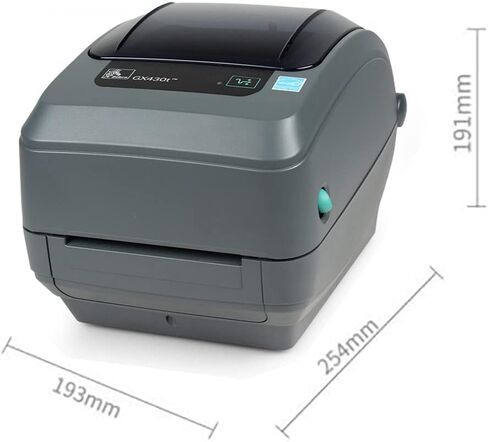

10.0"/254 mm. L x 7.6"/193 mm. W x 7.5"/191 mm. H
Weight
4.6 lbs/2.1 kg
