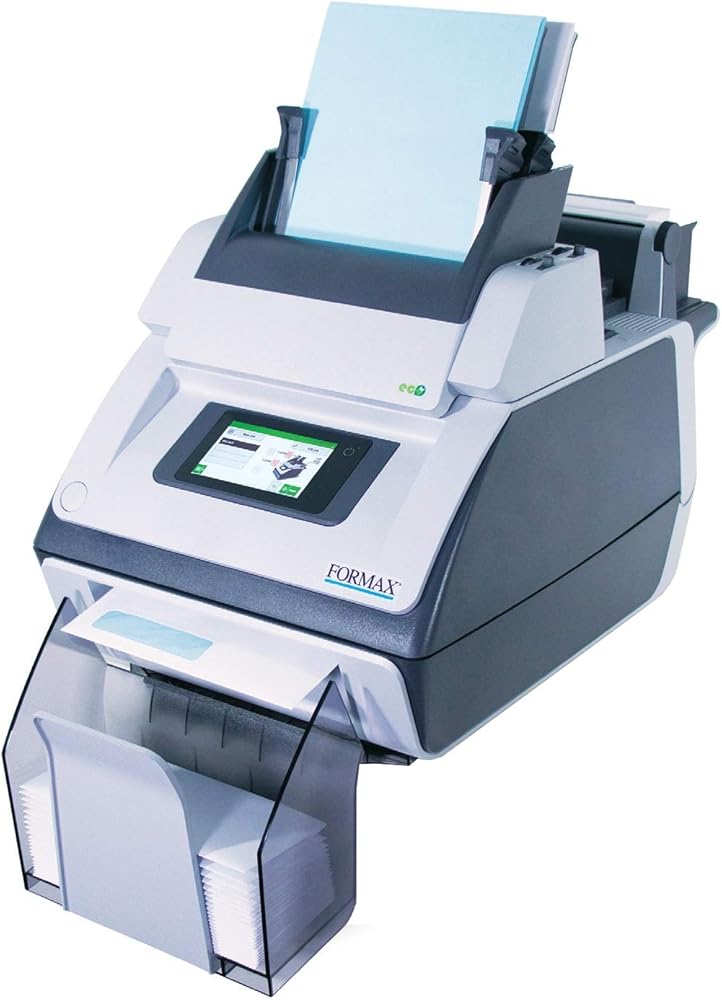

Formax FD6104 Model FD 6104 Paper Folder/Inserter, Up to 1350 Filled Envelopes Per Hour, 5" Color Touchscreen, Folding Capacity Up to 5 Sheets, Resettable Counter, Replacement for FD 6102 FD6102

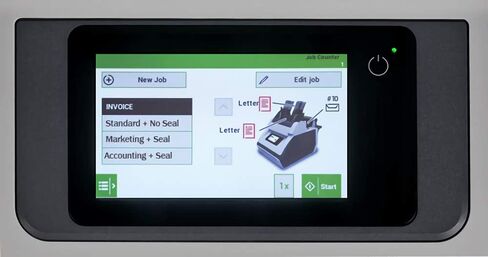

The 5” full-color touchscreen control panel features wizard-based software which guides operators through setup and operation. It provides quick access to saved jobs, right on the home screen, while bold icons indicate the status of each feeder
Key FeaturesReplacement for FD 6102 FD6102
5” Color Touchscreen, provides quick, easy setup, with job list on home screen
Produces up to 1,350 filled envelopes per hour
15 Programmable Jobs, Dedicated BRE/Insert Feeder

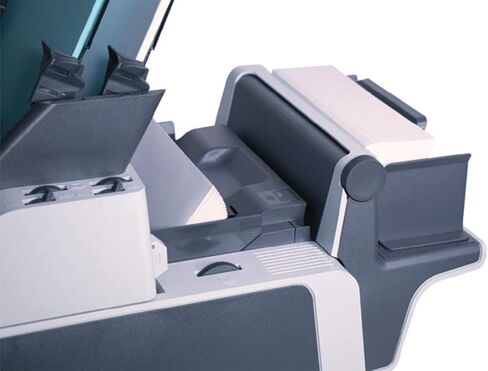

Clamshell Design, Top loading and adjustable side guided Feeder
Fold Types: C, V, Double Parallel, no fold
Resettable Counter provides accurate count of envelopes processed
Energy-saving feature places the inserter into sleep mode after 1 hour of inactivity

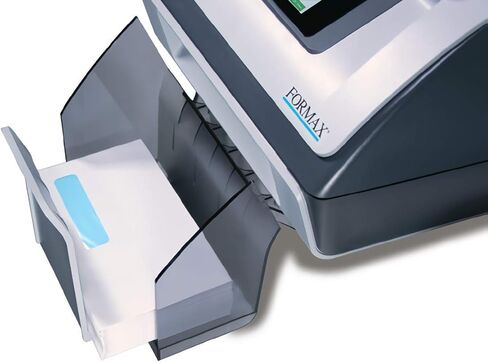

Catch Tray: Adjusts to hold up to 100 envelopes, Number 10 and 6" x 9.5"

SpecificationsHopper Capacity: Up to 100 sheets in each sheet feeder (Number 20); Up to 100 inserts/BREs in the insert feeder; Up to 100 outgoing envelopes
Fixed Speed: Up to 1,350 pieces per hour
Duty Cycle: Up to 5,000 pieces per month
Folding Capacity: Up to 5 sheets at once
Programmable Jobs: Up to 15
Paper Size: 5.6" - 8.9" W x 7" - 14" H
Paper Weight: 18 - 30 lbs (68 - 113gsm)
Insert/BRE Size: 5.6" - 8.9" W x 3.5" - 5.9" H
Insert Weight: 20 - 62 lbs (75 - 233gsm)
BRE Weight: 19 - 30 lbs (71 - 113gsm)
Outgoing Envelope Size: 8.8" - 9.5" W x 4.1" - 6" H
Dimensions w/o catch tray: 26" L x 17" W x 22" H
Weight: 82 lbs
Voltage: 120 Volts AC 50/60Hz
Safety Certifications: UL approved
