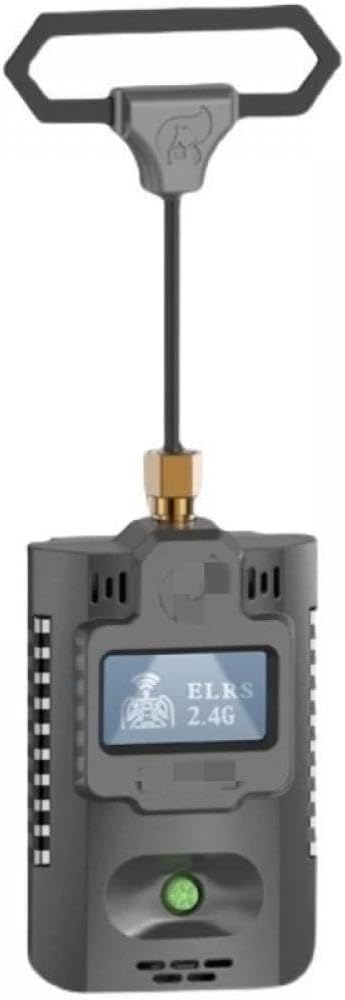

Product: Compatible With 2.4G ELRS TX Module
Screen: OLED
MCU: ESP32
RF Output Power: 10-500mw
Frequency Range: 2.4GHz-2.5GHz
Firmware: ExpressLRS
ant: Directionality Diamond ant Compatible With penetration
Working Voltage: DC5-8.4v
Maximum receive refresh rate: 500Hz
Menu button: 5 directions button
Voltage: DC6-8.4V
Port: S.port
Firmware update: via Wifi, UBC-C, or Blue tooth
Specifications
Dimension: 17.2*8.8*4.3mm (L x W x )
Weight: 1.1g
Number of Channels: 16Ch
Operating Voltage Range: 3.5V~6V
Operating Current: 60mA@5V
Operating Range: Full range
Distance: >5KM
Compatibility: radios in ELRS 2.4 mode
Binding Procedure
Binding is the process of uniquely associating receiver to a transmitter/transmitter RF module . A trans internal
or external RF module can be bound to multiple receivers (not to be used simultaneously).A receiver can only be
bound to one RF module.Follow the steps below to finish the binding procedure.
1.Put the transmitter/transmitter RF module into binding mode
2.Power on the receiver, the receiver's green light will flash and the receiver is in binding mode. Bind in the radio, the
receiver's green light will be on, then the binding is completed.
If the receiver is not bound in 20 seconds after power-on, the receiver will get into Wifi firmware updating mode, the
green light will flash at the same time.
Failsafe
Failsafe is a useful feature which is Compatible With a preset channel output position whenever control is lost Compatible With a period.
Follow the steps to set Failsafe Compatible With channels necessary :
Failsafe Compatible With receiver supporting ELRS RF mode setting can be set via radio interface, which support no pulse, hold and
custom three modes Compatible With each channel.radio go to: MODEL SETUP/Internal RF/Failsafe
