Package Included:

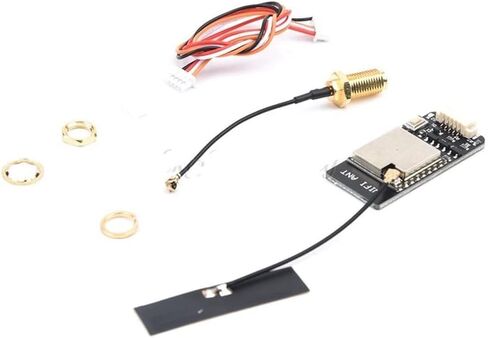

1 x 2.4G Wifi Telemetry Module(Send it as your choice)
Description:
Distance :100m~200m
WIFI V1.0 use ant
WIFI V1.0 and V2.0 use 8bit CPU, only support Compatible With UDP
WIFI V3.0 use 32 Bit CPU, support Compatible With TCP and Compatible With UDP
WIFI V2.0 and V3.0 have external ant (5DB)
WIFI V3.0 Drone Bridge website

How to use WIFI Module Compatible With PIXHAWK?
1.How to connect?
Use 6P line connects to Compatible With pixhawk flight controller.
Due to the different firmware, some firmware, two ports can be used, some firmware can only use one of the ports. So find one of the available ports Compatible With the connection.
IF you use Compatible With PX4 firmware ,only Compatible With TELEM1 can be used ,can not use Compatible With TELEM2.
Compatible With Ardupilot firmware , It is recommended to use the Compatible With TELEM2 port. Or find one of the available ports Compatible With the connection.
Compatible With PX4 firmware , should use Compatible With TELEM1 port.

2.How to use?
Please note: When using Wifi Radio Telemetry connection, it must use Compatible With Power Module or 5V ESC to supply power to the flight control. USB cannot be inserted because USB priority is higher than Radio Telemetry . If USB is plugged in, it cannot be used Compatible With radio telemetry transmission.

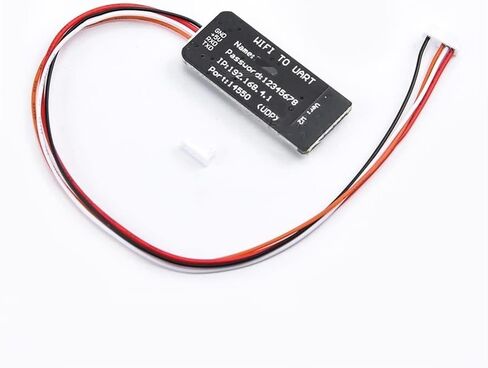

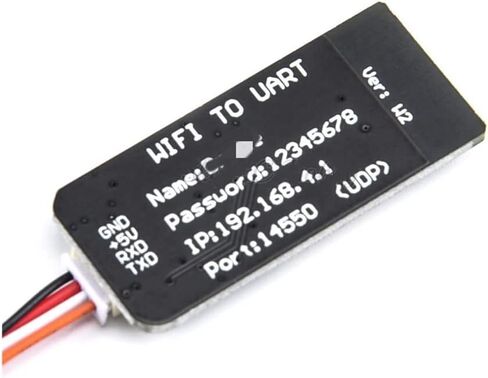

The wifi hotspot name is Drone, so use telephone or computer connect to this hotspot, the password is 12345678.
Note: Some device(Compatible With example some system) cannot get ip automatically, you should set manual.
Set the Configure IP as Manual. Set IP address as "192.168.4.5" or other, but can not set as " 192.168.4.1,the last number cannot exceed 254.Set Subnet as "255.255.255.0"(should set this value, cannot other). Set Router as "192.168.4.1"(should set this value, cannot other)
When your device connect t
