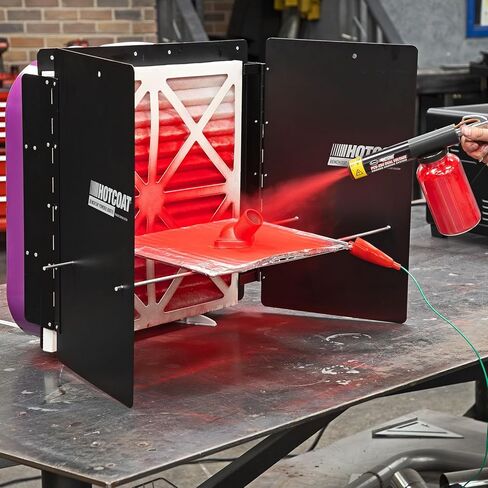

The Hotcoat Benchtop Powder Booth is a simple but effective conversion kit that transforms a 20 inch box fan into a booth for powder coating.
The frame holds a standard 20" x 20" x 1" pleated, fiberglass air filter and when combined with Eastwood HotCoat Filter Tack Spray 69481Z is capable of capturing over 99% of powder overspray. The Doors funnel the airflow to the filter and fold for storage, but also have provisions for the Hang Rods. These are perfect for hanging parts or supporting an oven rack. Quit making a mess of your garage or waiting for the weather outside to get better and pick up this simple solution to keep coating!

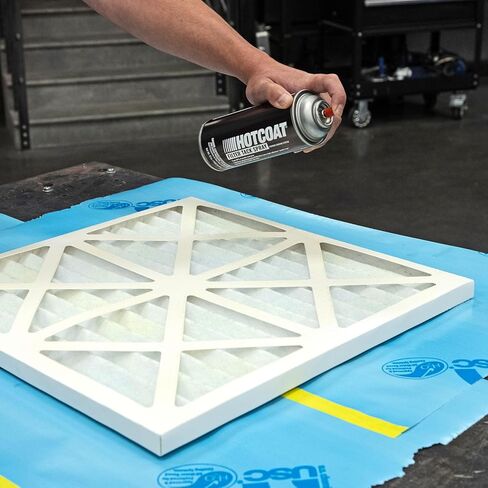

The Eastwood Hotcoat Filter Tack Spray transforms pleated fiberglass HVAC filters into a powder coat "trap" capturing and eliminating 99% of overspray in your shop. The Filter Tack Spray is a environmentally-friendly, non toxic coating that treats 10 standard 20" x 20" x 1" filters.

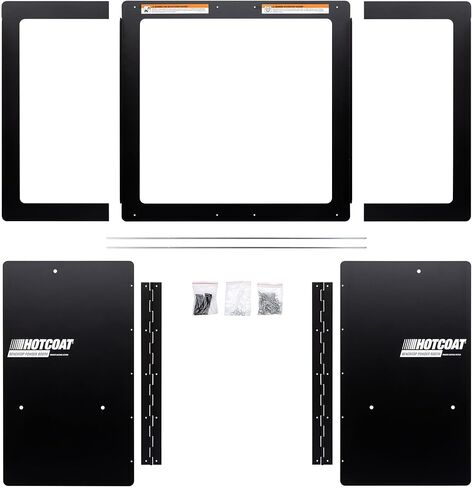

Contents
(1) 70016 HotCoat BenchTop Powdercoating Booth
Includes
(2) Fan Brackets
(1) Door Frame
(2) Doors
(2) Hinges
(2) Hang Rods
(4) Filter Tabs
(4) Hairpin Cotter Pins
(50) 1/8” x 0.25” Grip Aluminum/Steel Blind Rivets
(14) extra rivets are provided in case of the inevitable assembly mishap. Use 1/8” drill bit to remove rivets as required.)
(1) 72054 HotCoat 20x20x1 Powder Booth Filter
(1) 69481Z HotCoat Filter Tack Spray

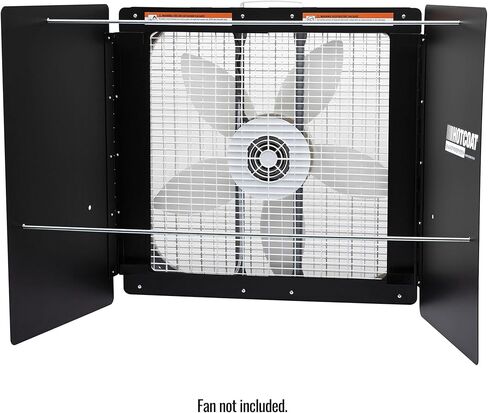

Box Fan is not included
Specifications
Box Fan Size: 20" (Commonly available at Walmart or Home Depot)
Air Filter Size: 20" x 20" x 1" HVAC/furnace air filter, pleated, fiberglass type only.
MERV rating not impactful.
Frame Construction: 18 gauge (1.2mm) steel, black powder coat
