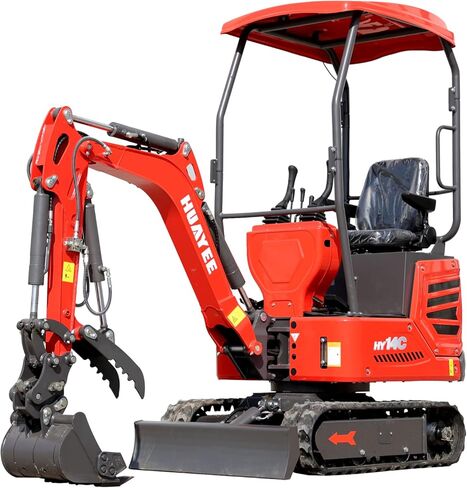

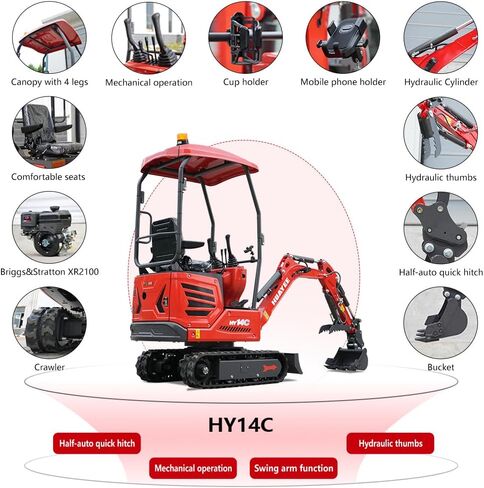

HUAYEE 1.4 Ton Mini Excavator HY14C, with 13.5 HP B&S Gasoline Engine, Swing Function, Hydraulic Thumb clamp, Semi-Automatic Quick Change, Hydraulic Cooler

KWD 2,536.500
– 1 +

Special Features

  • Say goodbye to unexpected charges! Our all-inclusive shipping model covers EVERYTHING upfront—forklift services, lift gate operations, and destination port storage. What you see at checkout is exactly what you pay, with ZERO hidden fees before, during, or after delivery. Transparent pricing, stress-free logistics—guaranteed.

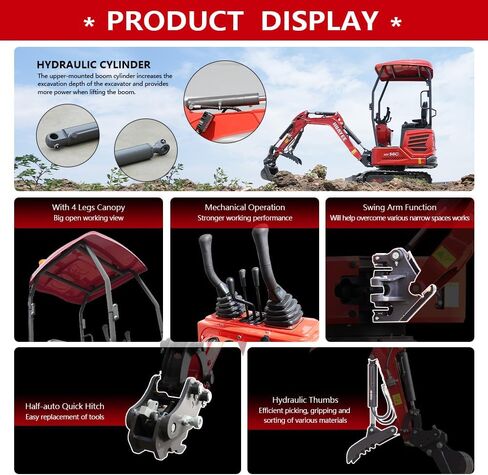

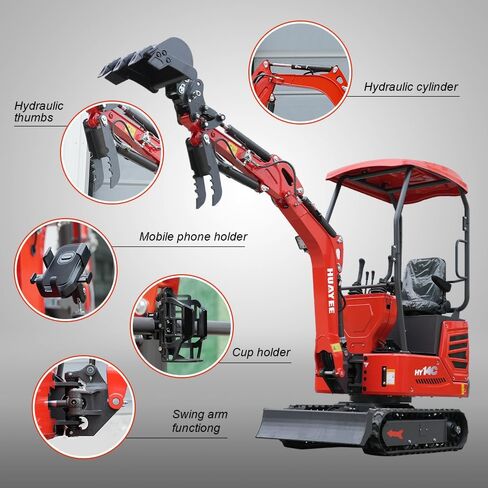

  • Hydraulic Thumb Clamp：Hydraulically powered, it can be adjusted in real - time according to the size and weight of the object being grasped. With a wide opening angle (up to 180 degrees in some models) and strong clamping force, it has no trouble handling irregular materials like rocks and logs.

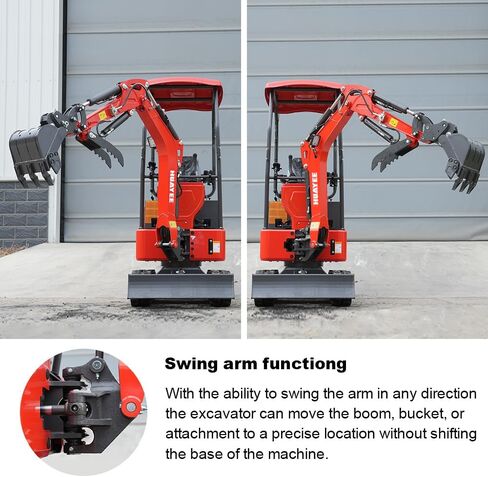

  • Side Swing Function：The upper structure of the excavator can rotate laterally by about 70 - 90 degrees. This allows the boom, stick, and bucket to reach areas perpendicular to the machine's longitudinal axis. As a result, it can work efficiently in tight spaces, such as beside buildings or between closely - spaced obstacles, breaking through the limitations of traditional excavators.
  • Semi - automatic Quick - Change：Combining mechanical and hydraulic components, it uses a hydraulic cylinder to assist in the locking and unlocking of attachments. When the operator activates the hydraulic control, the locking mechanism operates automatically. Although some manual alignment may be required, the operation is simple and convenient, achieving both efficiency and ease - of - use.
  • Hydraulic Cooler：During the operation of the mini excavator, the hydraulic system generates heat due to high - pressure oil circulation. The hydraulic cooler uses air or water as the heat - exchange medium to ensure that the hydraulic oil temperature remains within the optimal range. This guarantees the normal operation of hydraulic components, reduces wear and tear, and extends the service life of the hydraulic system, enabling stable operation even during long - term and high - intensity work.
  • This machine only contains: hydraulic thumb clamps, semi-automatic quick-change, Digging Bucket, the three attachments, and all installed in the machine (to the main picture of the product shall prevail), other accessories, all need to purchase to obtain, the product itself does not carry!

Description

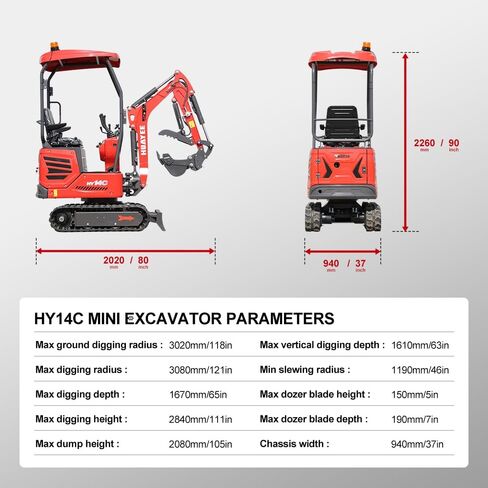

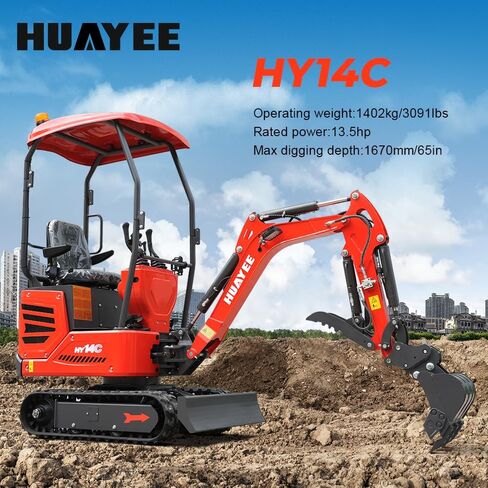

HY14c Excavator Performance Parameters
Operating Weight
1399 kg (Approx. 2999 lbs)
Bucket Capacity
0.02 m³ (Approx. 0.71 cubic feet)
Type of Working Device
Backhoe

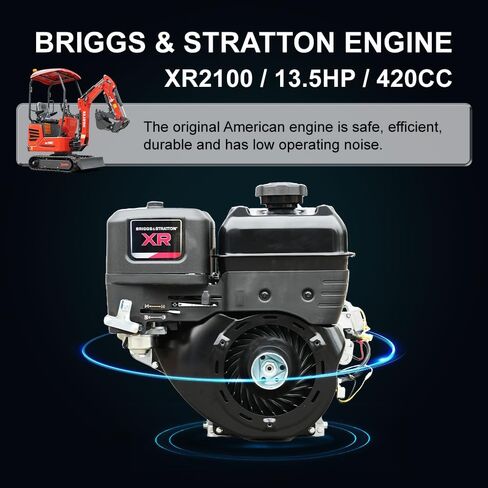

Engine
Model: R420
Displacement: 420 ml (Approx. 25.63 cubic - inches)
Rated Output Power/Speed: 8.6 kW (Approx. 11.53 horsepower), 3600 rpm
Speed
Maximum Traveling Speed: 1.2 km/h (Approx. 0.75 mph)
Slewing Speed: 9 rpm
Maximum Grade Ability: 30°
Track Sub - assembly
Ground Pressure: 0.3 kPa/cm²
Material: Rubber
Tension Control Type: Mechanical Tightening
Type of Pump
Gear Pump
Fuel/Oil/Fluid Pressure and Capacity
Working Pressure: 16 Mpa (Approx. 2320.64 psi)
Flow: 21.6 L/min (Approx. 5.71 gallons/min)
Hydraulic Oil Tank Capacity: 15 L (Approx. 3.96 gallons)
Fuel Tank Capacity: 6.6 L (Approx. 1.74 gallons)
